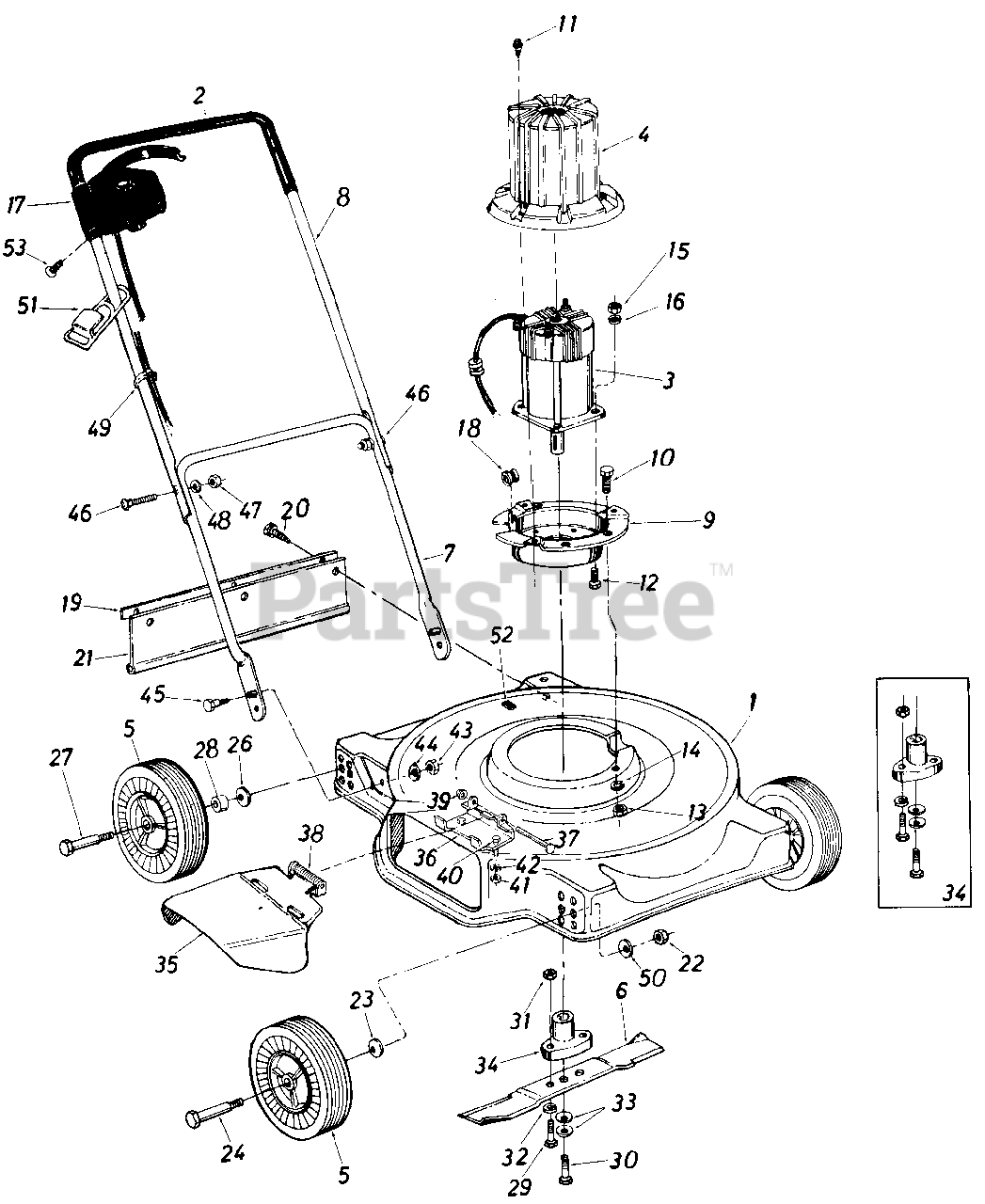

185-070-000 - MTD Walk-Behind Mower, Electric (1985) Parts02 Parts Diagram

Walk-Behind Mower, Electric

Parts02 Parts Diagram

  • Title

1

MTD 15866

20" Deck Ass'y.

$

$

Currently unavailable

2

MTD 718-0145

Grip

$

$

Currently unavailable

3

120V Electric Motor Briggs & Stratton 101120

$

$

Not available

4

MTD 731-0655

Motor Shroud

$

$

Not available

5

MTD 734-0840

Wheel Ass'y. Comp. 7 x 1.50

$

$

Not available

6

MTD 742-0123

20" Blade

$

$

Not available

7

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

8

MTD 749-0571

Upper Handle

$

$

Currently unavailable

9

MTD 15549

Drive Housing Brkt.-L.H.

$

$

Not available

10

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0901

Hex Wash Hd. "F" Tap Scr. #10-32 x .314" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

12

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 14

0

13

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0798

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 12

0

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 725-0898

Control w/Cord

$

$

Currently unavailable

18

MTD 725-0908

Cord Restraint

$

$

Not available

19

MTD 14836

Retaining Strip

$

$

Not available

20

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-0575

Rear Flap Ass'y. 4.65 x 17.2" Lg.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

23

MTD 736-0105

Bell-Wash. .400" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0213

Shld. Bolt .498" Dia. x 1.450" Lg.

$7.99

$

In Stock, only 2 left!

0

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

26

MTD 736-0105

Bell-Wash. .400" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0509

Shld. Bolt .498" Dia. x 1.830" Lg.

$

$

Not available

28

MTD 750-0515

Spacer. 511" I.D. x .70" O.D. x.38" Lg.

$4.49

$

In Stock, only 4 left!

0

29

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

31

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

32

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

34

MTD 753-0351

Blade Adapter Kit

$

$

Not available

35

MTD 15870

Chute Deflector Ass'y. Comp

$

$

Currently unavailable

36

MTD 11130

Deflector Hinge Plate

$

$

Not available

37

MTD 711-0555

Hinge Pin

$

$

Not available

38

MTD 732-0253

Torsion Spring

$

$

Not available

39

MTD 726-0106

Push On Flange Nut

$3.99

$

Usually ships in 3-6 days

0

40

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

41

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0242

Bell-Wash. .345" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

45

MTD 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0671

Curved Hd. Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

47

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

49

MTD 726-0223

Cable Tie

$

$

Not available

50

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"O.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 725-0899

Restraint

$

$

Not available

52

MTD 731-0564

Plastic Plug

$

$

Not available

53

MTD 710-0725

Truss Mach. AB-Tap Scr.

$

$

Currently unavailable
