1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Kits & Gasket Sets (Part 3) Parts Diagram

Pro Walk-Behind Mower

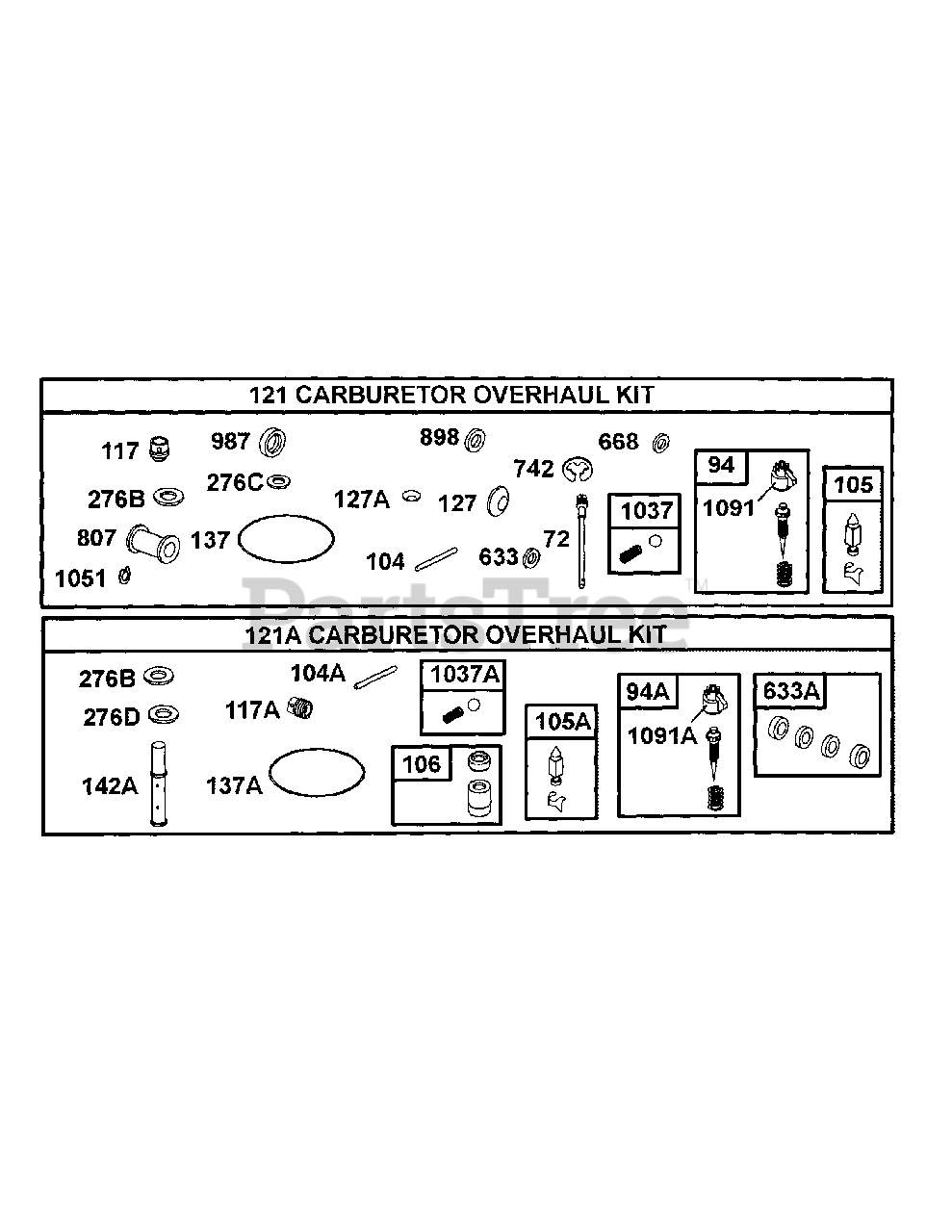

B&S Kits & Gasket Sets (Part 3) Parts Diagram

  • Title

72

MTD BS-694069

Tube-Jet

Note: NLA

$21.99

$

Usually ships in 3-6 days

0

72

MTD BS-694072

Tube-Jet

Note: NLA

$

$

Currently unavailable

94

MTD BS-808374

Kit-Idle Mixture

Note: NLA

$

$

Not available

94A

MTD BS-494923

Kit-Idle Mixture

$19.99

$

Usually ships in 2-12 days

0

94

MTD BS-808258

Kit-Idle Mixture

Note: NLA

$32.99

$

Usually ships in 2-12 days

0

94A

MTD BS-808260

Kit-Idle Mixture

Note: NLA

$31.99

$

In Stock, only 1 left!

0

104

MTD BS-690739

Pin-Float Hinge

Note: NLA

$6.49

$

In Stock, only 1 left!

0

104A

MTD BS-231652

Pin-Float Hinge

$7.49

$

Usually ships in 2-12 days

0

105A

MTD BS-808023

Valve-Float Needle

Note: NLA

$41.99

$

In Stock, only 1 left!

0

105

MTD BS-807706

Valve-Float Needle

$41.99

$

In Stock, Qty 6

0

117A

MTD BS-807907

Jet-Main (High Altitude)

Note: NLA

$17.99

$

Usually ships in 3-6 days

0

117

MTD BS-806471

Jet-Main

Note: NLA

$18.99

$

Usually ships in 3-6 days

0

117

MTD BS-691554

Jet-Main

Note: NLA

$18.99

$

Usually ships in 2-12 days

0

117A

MTD BS-231780

Jet-Main

Note: NLA

$16.99

$

Usually ships in 2-12 days

0

121

MTD BS-808718

Kit-Carburetor Overhaul

Note: NLA

$202.99

$

Usually ships in 3-6 days

0

121A

MTD BS-807917

Kit-Carburetor Overhaul

Note: NLA

$172.99

$

Usually ships in 2-12 days

0

121A

MTD BS-808263

Kit-Carburetor Overhaul

Note: NLA

$159.99

$

In Stock, only 1 left!

0

121

MTD BS-694068

Kit-Carburetor Overhaul

Note: NLA

$219.99

$

In Stock, only 1 left!

0

127

MTD BS-690730

Plug-Welch

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

127A

MTD BS-690731

Plug-Welch

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

137

MTD BS-806481

Gasket-Float Bowl

Note: NLA

$13.99

$

In Stock, Qty 10

0

142A

MTD BS-231781

Nozzle-Carburetor

$35.99

$

Usually ships in 2-12 days

0

276D

MTD BS-692343

Washer-Sealing (Float Bowl)

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

276C

MTD BS-806477

Washer-Sealing (Carburetor Plug)

Note: NLA

$7.99

$

In Stock, only 1 left!

0

276B

MTD BS-806476

Washer-Sealing (Float Bowl)

Note: NLA

$6.99

$

In Stock, only 2 left!

0

633

MTD BS-690738

Seal-Choke/throttle Shaft

Note: NLA

$11.99

$

Usually ships in 2-12 days

0

633A

MTD BS-808022

Seal-Choke/throttle Shaft

$40.99

$

Usually ships in 2-12 days

0

668

MTD BS-691500

Spacer (Rotating Screen)

$7.49

$

Usually ships in 2-12 days

0

668

MTD BS-690737

Spacer (Choke Shaft)

Note: NLA

$8.49

$

Usually ships in 2-12 days

0

742

MTD BS-805578

Retainer-E Ring

$4.99

$

Usually ships in 2-12 days

0

807

MTD BS-690733

Spacer-Throttle

Note: NLA

$15.99

$

Usually ships in 2-12 days

0

898

MTD BS-690735

Washer

Note: NLA

$4.99

$

Usually ships in 2-12 days

0

987

MTD BS-691548

Seal-Throttle Shaft

Note: NLA

$5.99

$

Usually ships in 2-12 days

0

1037

MTD BS-807717

Ball-Choke Locator

$

$

Not available

1037A

MTD BS-807915

Ball-Choke Locator

$8.99

$

In Stock, only 1 left!

0

1051

MTD BS-690736

Ring-Retaining

Note: NLA

$6.99

$

Usually ships in 2-12 days

0

1091

MTD BS-691515

Cap-Limiter

Note: NLA

$8.99

$

Usually ships in 2-12 days

0

1091A

MTD BS-806054

Cap-Limiter

Note: NLA

$7.99

$

Usually ships in 3-6 days

0
