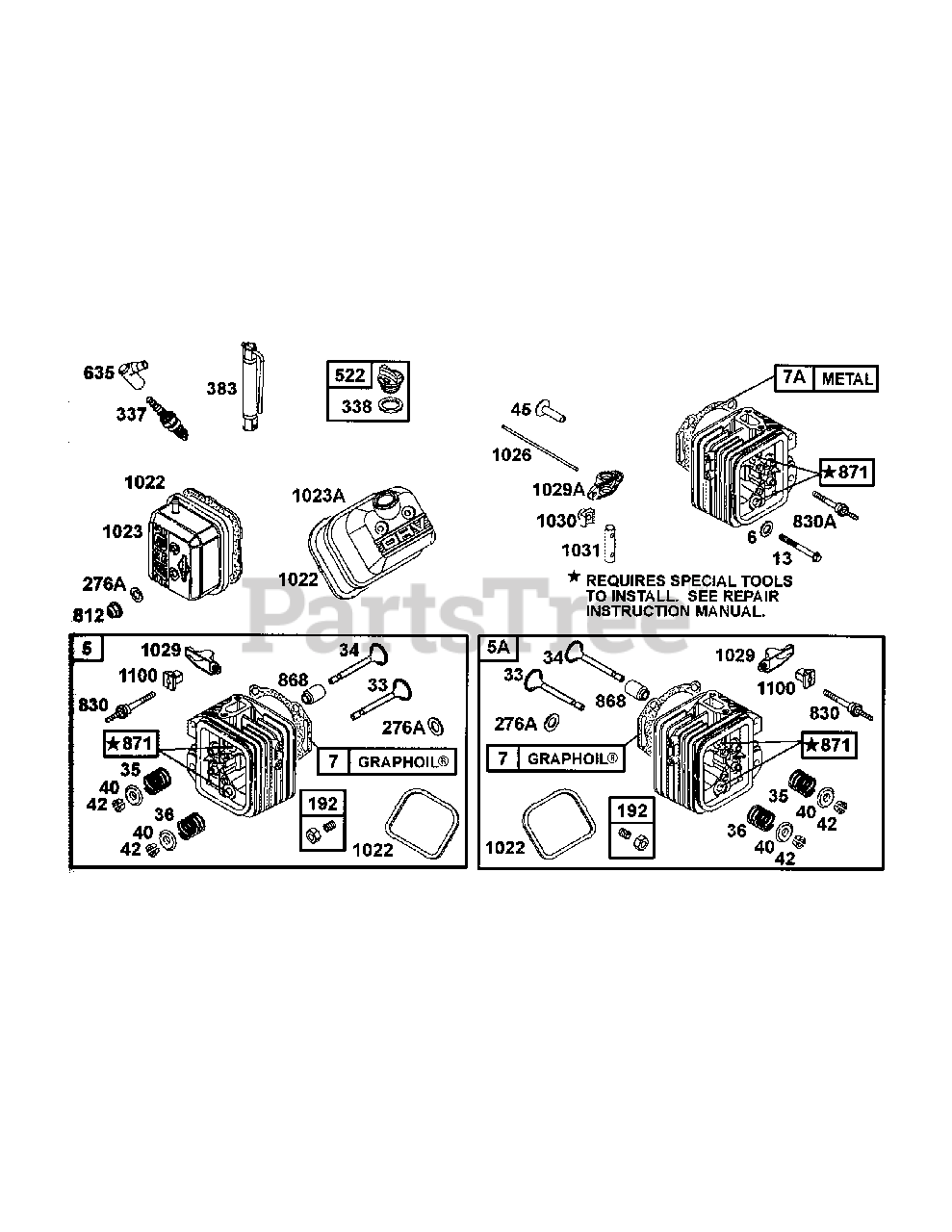

1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Head Assemblies Parts Diagram

Pro Walk-Behind Mower

B&S Head Assemblies Parts Diagram

  • Title
5

MTD BS-809185

Head Cylinder 1
(Superseded to BS-845486)

$

$

Not available

5A

MTD BS-809186

Head-Cylinder 2
(Superseded to BS-845487)

$220.99

$

Usually ships in 2-12 days

0

6

MTD BS-805193

Washer (Cylinder Head)

$

$

Not available

7

MTD BS-690888

Gasket-Cylinder Head
(Superseded to BS-845884)

$30.99

$

In Stock, only 3 left!

0

7A

MTD BS-805653S

Gasket-Cylinder Head

$35.99

$

Usually ships in 2-12 days

0

13

MTD BS-692059

Screw (Cylinder Head)

$3.99

$

In Stock, only 4 left!

0

33

MTD BS-807681

Valve-Exhaust

$

$

Not available

34

MTD BS-807680

Valve-Intake

$26.99

$

In Stock, only 1 left!

0

35

MTD BS-692084

Spring-Valve (Intake)

$6.49

$

In Stock, Qty 11

0

36

MTD BS-692084

Spring-Valve (Exhaust)

$6.49

$

In Stock, Qty 11

0

40

MTD BS-692058

Retainer-Valve

$5.49

$

Usually ships in 2-12 days

0

42

MTD BS-844788

Keeper-Valve

$6.99

$

In Stock, Qty 12

0

45

MTD BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

192

MTD BS-807623

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

276A

MTD BS-691766

Sealing Washer (Rocker Arm Cover)

$6.49

$

In Stock, Qty 20+

0

337

MTD 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

338

MTD BS-809500

Gasket-Dipstick

$10.99

$

In Stock, Qty 18

0

383

MTD BS-19374S

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

522

MTD BS-809500

Plug-Dipstick/fill

$10.99

$

In Stock, Qty 18

0

635

MTD BS-692076

Boot-Spark Plug

$5.49

$

In Stock, Qty 20+

0

812

MTD BS-692055

Nut (Rocker Arm Cover)

$3.99

$

In Stock, Qty 9

0

830A

MTD BS-691497

Stud-Rocker Arm

Note: NLA

$6.49

$

Usually ships in 2-12 days

0

830

MTD BS-809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

MTD BS-691963

Valve Seal

$10.99

$

In Stock, Qty 20+

0

871

MTD BS-692057

Bushing-Valve Guide

$

$

Not available

1022

MTD BS-806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023A

MTD BS-843749

Cover-Rocker

$39.99

$

Usually ships in 2-12 days

0

1023

MTD BS-691558

Cover-Rocker

$20.99

$

In Stock, only 2 left!

0

1023

MTD BS-691494

Cover-Rocker

Note: NLA

$17.99

$

In Stock, only 1 left!

0

1026

MTD BS-691836

Pushrod (Steel)

$12.99

$

In Stock, Qty 20+

0

1026

MTD BS-691758

Pushrod (Aluminum)

$11.99

$

In Stock, Qty 20+

0

1029A

MTD BS-808096

Arm-Rocker

Note: NLA

$

$

Not available

1029

MTD BS-691543

Arm-Rocker

Note: NLA

$

$

Not available

1030

MTD BS-691496

Support-Rocker Arm

$

$

Not available

1031

MTD BS-690693

Shaft-Rocker Arm

$13.99

$

Usually ships in 2-12 days

0

1100

MTD BS-690973

Pivot-Rocker Arm

Note: NLA

$

$

Not available
