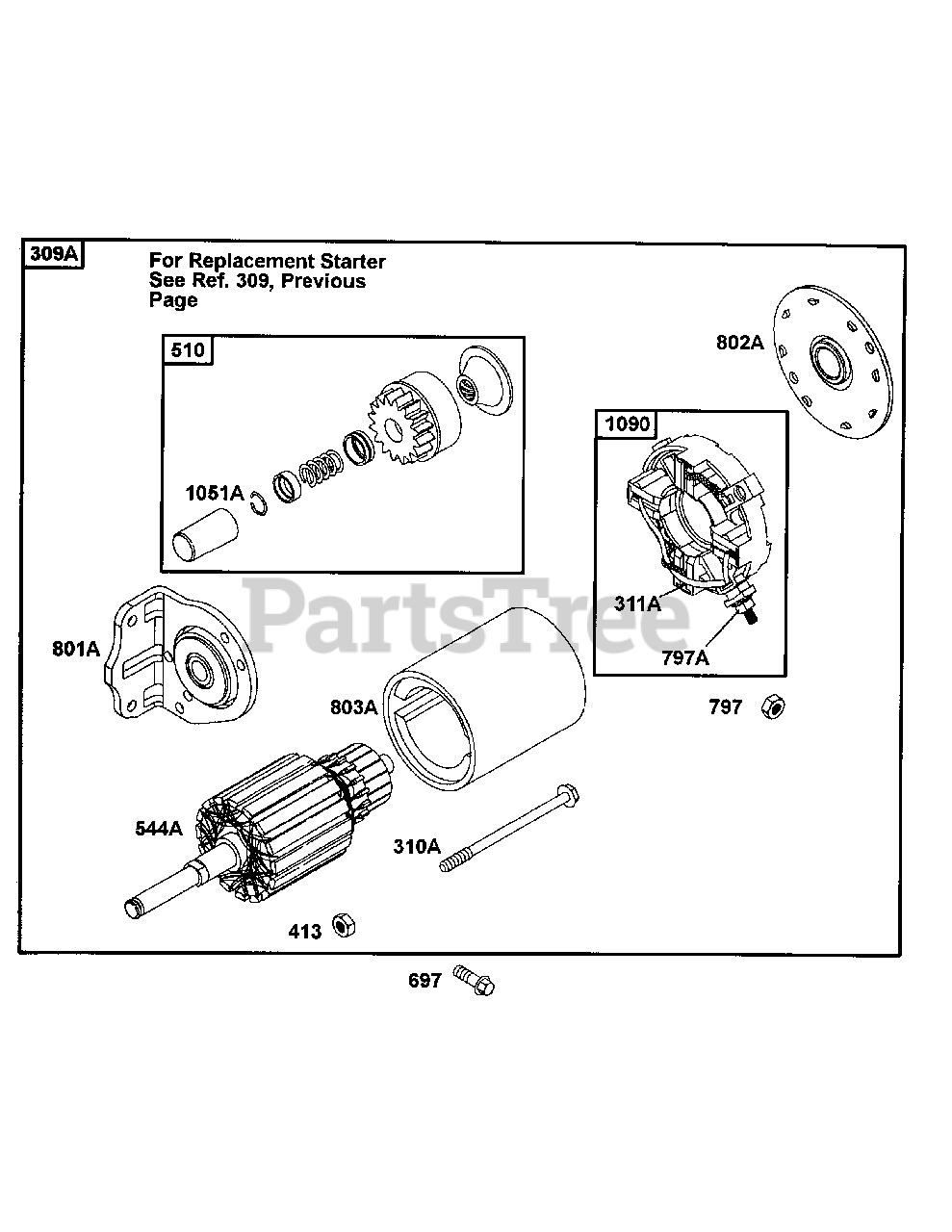

1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Electric Starter (Part 3) Parts Diagram

Pro Walk-Behind Mower

B&S Electric Starter (Part 3) Parts Diagram

  • Title

309A

MTD n/a

Motor-Starter

$

$

Currently unavailable

310A

MTD BS-690323

Screw (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311A

MTD BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

413

MTD BS-693587

Nut (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

510

MTD BS-496881

Drive-Starter

$61.99

$

Usually ships in 2-12 days

0

544A

MTD BS-693548

Armature-Starter

$116.99

$

Usually ships in 2-12 days

0

697

MTD BS-805247

Screw (Drive Cap)

$

$

Not available

797

MTD 912-0121

Nut (Brush Retained)
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

797A

MTD BS-693167

Nut (Brush Retained)

$4.49

$

Usually ships in 2-12 days

0

801A

MTD BS-693549

Cap-Drive

Note: NLA

$

$

Currently unavailable

802A

MTD BS-497607

Cap-End

Note: NLA

$

$

Not available

803A

MTD BS-693547

Housing-Starter

$55.99

$

Usually ships in 2-12 days

0

1051A

MTD BS-691124

Ring-Retaining

$7.99

$

Usually ships in 2-12 days

0

1090

MTD BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 5

0
