1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Cylinder Group, Sump Base Parts Diagram

Pro Walk-Behind Mower

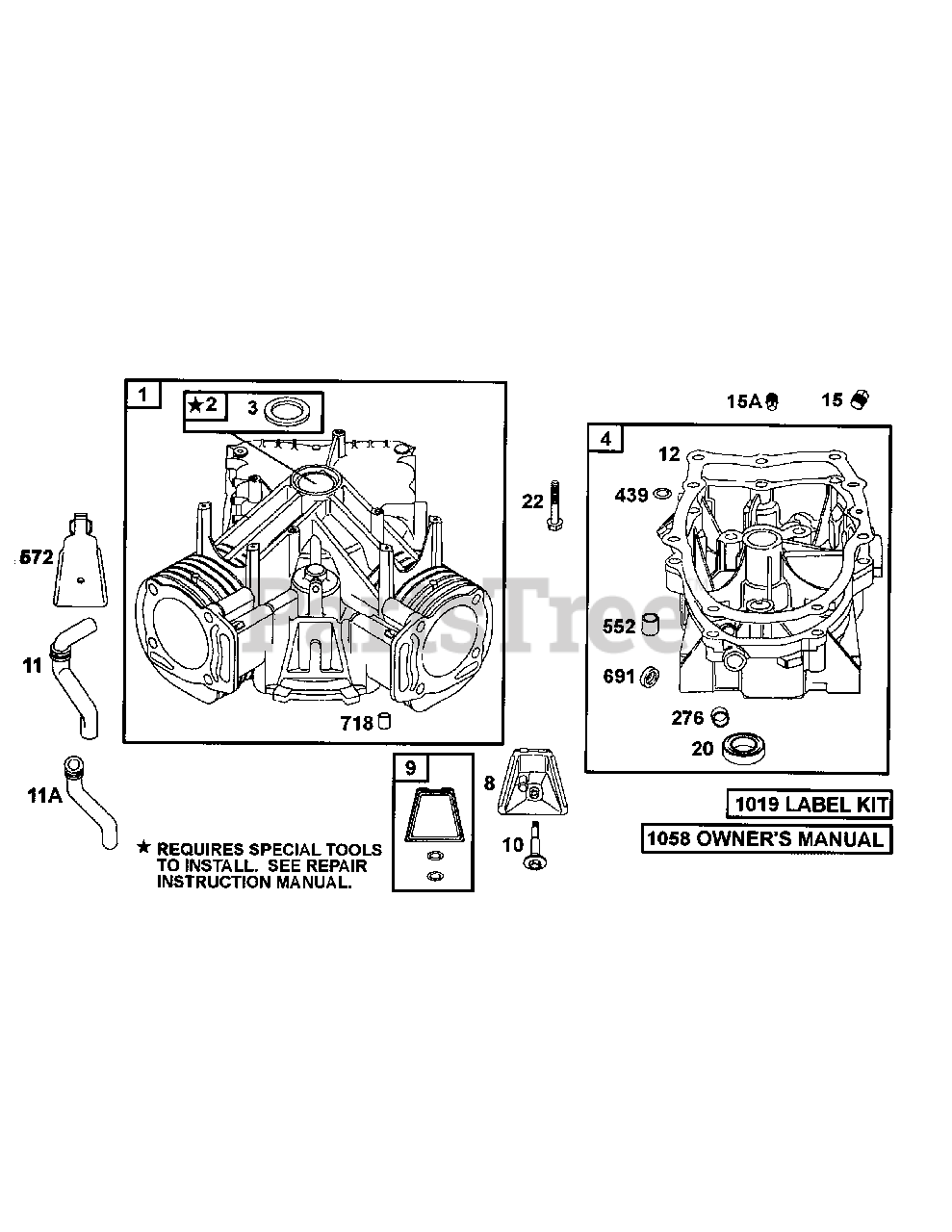

B&S Cylinder Group, Sump Base Parts Diagram

  • Title

1

MTD BS-692545

Cylinder Assembly

Note: NLA

$558.99

$

Usually ships in 2-12 days

0

1

MTD BS-807787

Cylinder Assembly

$546.99

$

Usually ships in 2-12 days

0

2

MTD BS-808534

Kit-Bushing/seal (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

2

MTD BS-807687

Kit-Bushing/seal (Magneto Side)

$

$

Not available

3

MTD BS-805101S

Seal-Oil

$13.99

$

Usually ships in 2-12 days

0

4

MTD BS-808504

Sump-Engine

Note: NLA

$

$

Not available

4

MTD BS-808846

Sump-Engine

Note: NLA

$73.99

$

Usually ships in 3-6 days

0

8

MTD BS-808988

Breather Assembly

$38.99

$

In Stock, Qty 7

0

9

MTD BS-844986

Gasket-Breather

$8.49

$

In Stock, only 3 left!

0

10

MTD BS-690751

Screw (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11A

MTD BS-806083S

Tube-Breather

$16.99

$

In Stock, Qty 20+

0

11

MTD BS-806083S

Tube-Breather

$16.99

$

In Stock, Qty 20+

0

12

MTD BS-842589

Gasket-Crankcase
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 13

0

12

MTD BS-842589

Gasket-Crankcase
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 13

0

15A

MTD BS-805059

Plug-Oil Drain

Note: NLA

$

$

Not available

15

MTD BS-690946

Plug-Oil Drain

$5.99

$

In Stock, Qty 14

0

20

MTD BS-805049S

Seal-Oil (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

MTD BS-692540

Screw (Crankcase Cover)

Note: NLA

$

$

Not available

276

MTD BS-690704

Washer-Sealing

$5.99

$

In Stock, only 2 left!

0

439

MTD BS-692154

Seal-O Ring (Crankcase Cover/sump)

$5.99

$

In Stock, Qty 20+

0

439

MTD BS-805198

Seal-O Ring (Crankcase Cover/sump)

$4.99

$

Usually ships in 2-12 days

0

552

MTD BS-690701

Bushing-Governor

$7.99

$

In Stock, only 1 left!

0

572

MTD BS-690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

691

MTD BS-842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

718

MTD BS-690684

Pin-Locating

Note: NLA

$

$

Not available

1019

MTD BS-808036

Kit-Label

$32.99

$

Usually ships in 2-12 days

0

1058

MTD n/a

Owner's Manual (Emission Engines)

$

$

Currently unavailable

1058

MTD n/a

Owner's Manual (Non Emission Engines)

$

$

Currently unavailable
