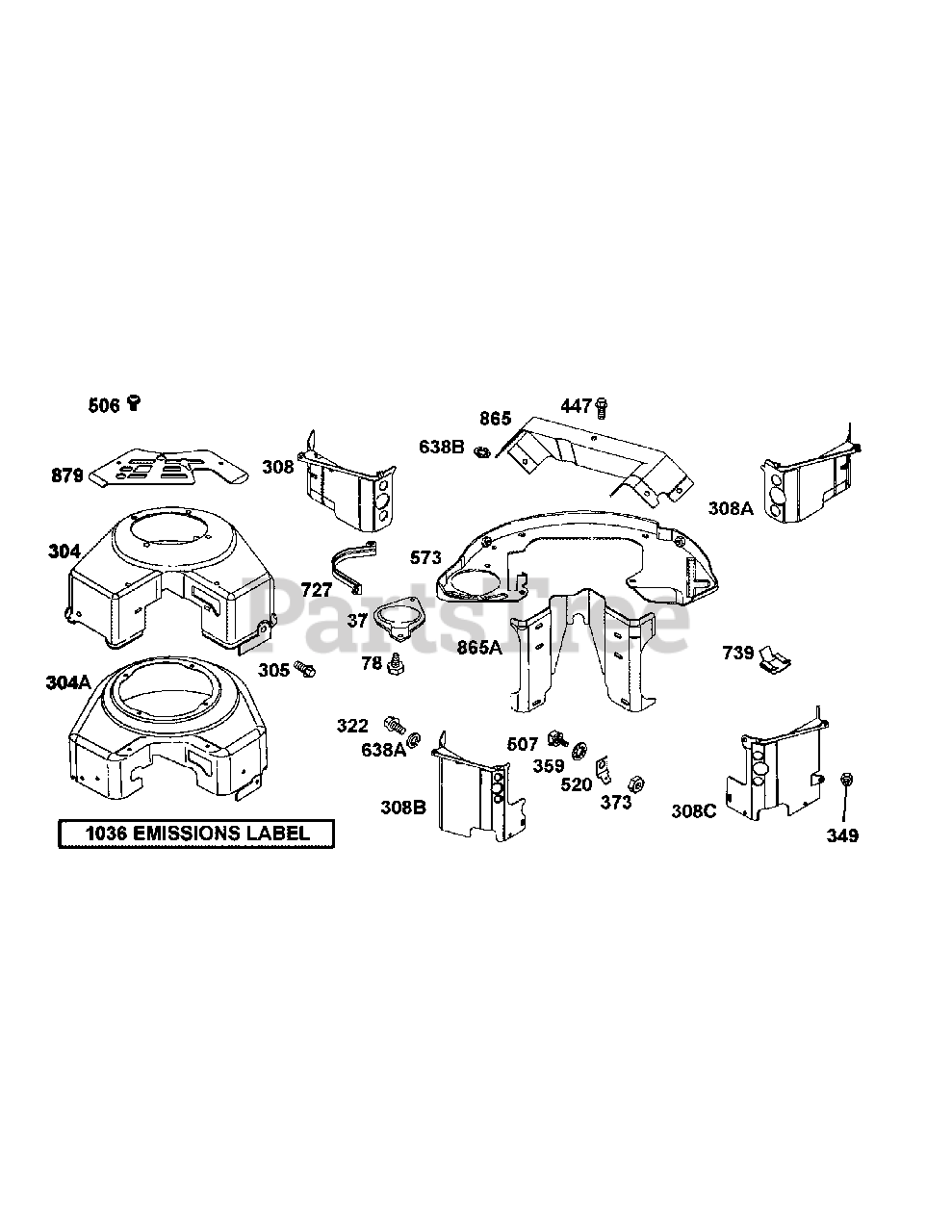

1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Blower Housings, Air Guides Parts Diagram

Pro Walk-Behind Mower

B&S Blower Housings, Air Guides Parts Diagram

  • Title
37

MTD BS-690715

Guard-Flywheel

Note: NLA

$7.99

$

Usually ships in 3-6 days

0

78

MTD BS-690688

Screw (Flywheel Guard)

$3.49

$

Usually ships in 2-12 days

0

304

MTD BS-807773

Housing-Blower (Red)

Note: NLA

$181.99

$

Usually ships in 3-6 days

0

304

MTD BS-690929

Housing-Blower (Black)

$162.99

$

Usually ships in 2-12 days

0

304

MTD BS-690930

Housing-Blower (Red)

Note: NLA

$181.99

$

Usually ships in 2-12 days

0

304A

MTD BS-690930

UNKNOWN

Note: NLA

$181.99

$

Usually ships in 2-12 days

0

305

MTD BS-692056

Screw (Blower Housing)

$5.99

$

In Stock, Qty 20+

0

308A

MTD BS-690913

Cover-Cylinder Head (Cylinder 2)

Note: NLA

$35.99

$

Usually ships in 3-6 days

0

308

MTD BS-806547

Cover-Cylinder Head (Cylinder 1)

$

$

Not available

308B

MTD BS-691576

Cover-Cylinder Head (Cylinder 1)

Note: NLA

$

$

Not available

308C

MTD BS-691563

Cover-Cylinder Head (Cylinder 2)

Note: NLA

$

$

Not available

322

MTD BS-692067

Screw (Cylinder Head Cover)

$3.99

$

In Stock, Qty 9

0

349

MTD BS-690238

Nut (Cylinder Cover)

$3.49

$

Usually ships in 2-12 days

0

359

MTD BS-691077

Washer (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

MTD 712-0142

Nut (Ground Terminal)

$4.49

$

In Stock, Qty 10

0

447

MTD BS-692539

Screw (Air Guide Cover)

$3.49

$

In Stock, Qty 20+

0

506

MTD BS-690677

Screw (Carburetor Cover)

$3.99

$

In Stock, only 2 left!

0

507

MTD BS-691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

MTD BS-691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

573

MTD BS-690902

Plate-Back

$

$

Not available

638A

MTD BS-690706

Washer (Cylinder Head Cover)

$3.99

$

In Stock, only 2 left!

0

638B

MTD BS-691551

Washer (Cylinder Head Cover)

Note: NLA

$4.99

$

In Stock, only 1 left!

0

727

MTD BS-690714

Cover-Starter Drive

$

$

Not available

739

MTD BS-690451

Clip-Debris

$2.99

$

Usually ships in 2-12 days

0

865A

MTD BS-690750

Cover-Air Guide

Note: NLA

$

$

Not available

865

MTD BS-841319

Cover-Air Guide

$39.99

$

Usually ships in 2-12 days

0

879

MTD BS-690757

Cover-Carburetor

$18.99

$

Usually ships in 2-12 days

0

1036

MTD BS-806664

Label-Emissions

Note: NLA

$8.49

$

Usually ships in 3-6 days

0

1036

MTD BS-499371

Label-Emissions

Note: NLA

$4.49

$

Usually ships in 2-12 days

0

1036

MTD BS-499372

Label-Emissions

Note: NLA

$8.49

$

Usually ships in 3-6 days

0

1036

MTD BS-806696

Label-Emissions

Note: NLA

$3.99

$

Usually ships in 3-6 days

0
