1848F (55AF3C5M195) - MTD Pro Walk-Behind Mower B&S Air Cleaner Group (Part 1) Parts Diagram

Pro Walk-Behind Mower

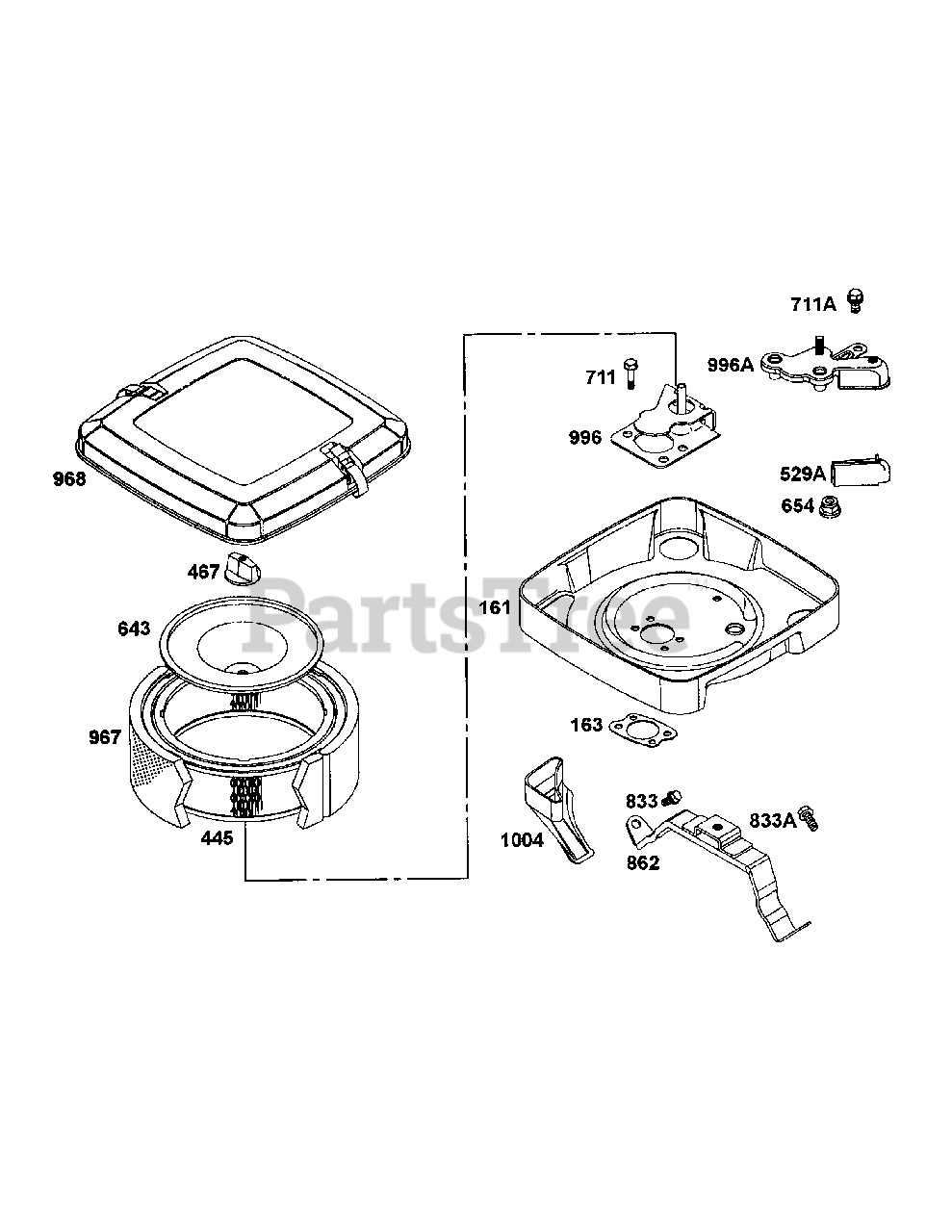

B&S Air Cleaner Group (Part 1) Parts Diagram

  • Title

161

MTD BS-691561

Base-Air Cleaner

$

$

Not available

163

MTD BS-692081

Gasket-Air Cleaner

$5.49

$

In Stock, only 3 left!

0

445

MTD BS-394018S

Filter-Air Cleaner Cartridge

$25.99

$

In Stock, Qty 12

0

467

MTD BS-691985

Knob-Air Cleaner

$7.99

$

In Stock, Qty 9

0

529A

MTD BS-805783

Grommet (Breather Tube Extension)

Note: NLA

$9.99

$

Usually ships in 3-6 days

0

643

MTD BS-692079

Retainer-Air Filter
(Superseded to BS-844932)

$22.99

$

In Stock, Qty 7

0

654

MTD BS-690939

Nut (Carburetor)

Note: NLA

$3.49

$

In Stock, only 4 left!

0

711A

MTD BS-692539

Screw (Carburetor Shield)

$3.49

$

In Stock, Qty 20+

0

711

MTD BS-692537

Screw (Carburetor Shield)
(Superseded to BS-807084)

$3.49

$

In Stock, only 3 left!

0

833A

MTD BS-690872

Screw (Air Cleaner Mounting Strap)

Note: NLA

$3.49

$

In Stock, only 3 left!

0

833

MTD BS-692539

Screw (Air Cleaner Mounting Strap)

$3.49

$

In Stock, Qty 20+

0

862

MTD BS-807859

Strap-Air Cleaner Mounting

Note: NLA

$

$

Not available

862

MTD BS-692542

Strap-Air Cleaner Mounting

Note: NLA

$8.49

$

In Stock, only 1 left!

0

967

MTD BS-272490S

Filter-Pre Cleaner

$5.49

$

In Stock, Qty 20+

0

968

MTD BS-699959

Cover-Air Cleaner

$59.99

$

In Stock, only 4 left!

0

996

MTD BS-691577

Shield-Carburetor
(Superseded to BS-844930)

$36.99

$

Usually ships in 2-12 days

0

1004

MTD BS-690743

Duct-Air

$

$

Not available
