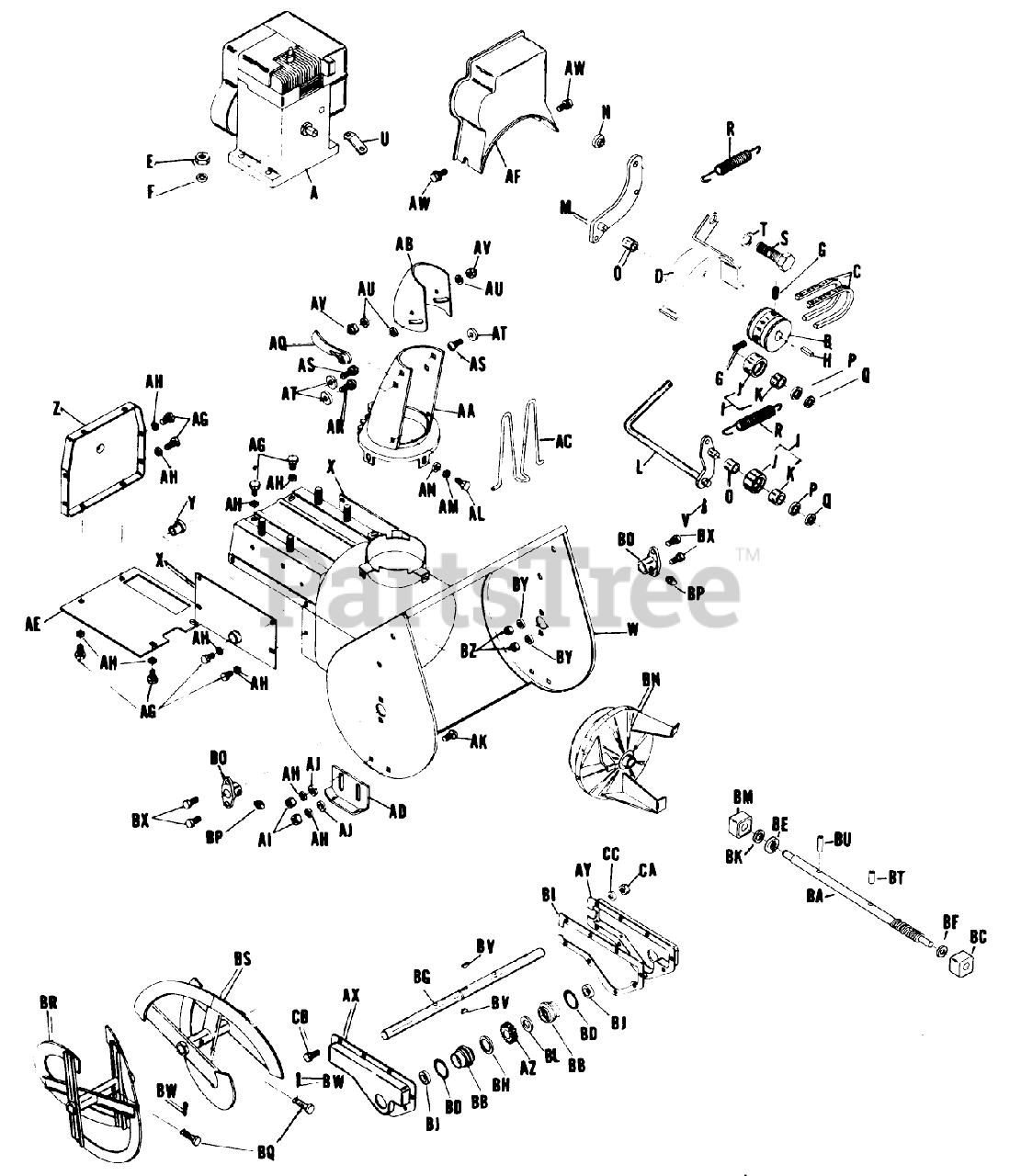

1840 A - Lawn-Boy Snow Thrower (SN: 300000001 - 399999999) (1973) Snow Thrower Parts List Parts Diagram

Snow Thrower

Snow Thrower Parts List Parts Diagram

  • Title

A

Lawn-Boy 18118

Engine, 4 HP. BS Model 100202, Type 0434-01

$

$

Currently unavailable

B

Lawn-Boy 18077

DISCONTINUED
(Superseded to 704439)

$

$

Not available

C

Lawn-Boy 18055

See Supercession: 703639
(Superseded to 703639)

$35.99

$

Usually ships in 3-6 days

0

D

Lawn-Boy 23135

Belt Guide

$

$

Currently unavailable

E

5/16-18 Hex. Nut, Plated

$

$

Not available

F

5/16 Spring Lock Washer, Plated

$

$

Not available

G

5/16-18 x 5/16 Socket Set Screw

$

$

Not available

H

3/16 x 3/16 x 1 1/4 Key

$

$

Not available

I

Lawn-Boy 10532

See Supercession: 742687
(Superseded to 742687)

$

$

Not available

J

Lawn-Boy 10473

See Supercession: 742687
(Superseded to 742687)

$

$

Not available

K

Lawn-Boy 10472

See Supercession: 704179
(Superseded to 704179)

$

$

Not available

L

Lawn-Boy 18072

DISCONTINUED
(Superseded to 742167)

$

$

Not available

M

Lawn-Boy 18133

DISCONTINUED

$

$

Not available

N

Lawn-Boy 14792

See Supercession: 704387
(Superseded to 704387)

$

$

Not available

O

Lawn-Boy 10471

See Supercession: 703367
(Superseded to 703367)

$

$

Not available

P

Lawn-Boy 10474

DISCONTINUED
(Superseded to 700812)

$

$

Not available

Q

Lawn-Boy 1042

See Supercession: 700097
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

R

Lawn-Boy 11707

See Supercession: 703377
(Superseded to 703377)

$31.99

$

In Stock, only 1 left!

0

S

1/2-20 x 1 1/4 Hex. Hd. Cap Screw, Plated

$

$

Not available

T

1/2 Spring Lock Washer, Pl.

$

$

Not available

U

Lawn-Boy 23496

DISCONTINUED

$

$

Not available

V

1/8 x 3/4 Cotter Pin, Plated

$

$

Not available

W

Lawn-Boy 18119

Auger Wrap Main Frame Assembly

$

$

Currently unavailable

X

Lawn-Boy 18101

See Supercession: 741281
(Superseded to 741281)

$

$

Not available

Y

Lawn-Boy 18100

See Supercession: 703658
(Superseded to 703658)

$

$

Not available

Z

Lawn-Boy 18070

Backing Plate Assembly

$

$

Currently unavailable

AA

Lawn-Boy 18120

Chute Ring Assembly

$

$

Currently unavailable

AB

Lawn-Boy 18033

See Supercession: 743155
(Superseded to 743155)

$

$

Not available

AC

Lawn-Boy 18082

See Supercession: 704440
(Superseded to 704440)

$

$

Not available

AD

Lawn-Boy 18006

DISCONTINUED
(Superseded to 700053-03)

$

$

Not available

AE

Lawn-Boy 18027

See Supercession: 704437
(Superseded to 704437)

$

$

Not available

AF

Lawn-Boy 18032

DISCONTINUED

$

$

Not available

AG

5/16-18 x 1/2 Hex. Hd. Cap Screw, Pl.

$

$

Not available

AH

5/16 Spring Lock Washer, Pl.

$

$

Not available

AI

5/16-18 Hex. Nut, Plated

$

$

Not available

AJ

5/16 Flat Washer, Plated

$

$

Not available

AK

5/16-18 x 3/4 Carriage Bolt, Plated

$

$

Not available

AL

1/4-20 x 35 Hex. Hd. Cap Screw, Plated

$

$

Not available

AM

1/4 Spring Lock Washer, Pl.

$

$

Not available

AN

1/4 SAE Flat Washer, Plated

$

$

Not available

AQ

Lawn-Boy 11668

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

AR

Lawn-Boy 10389

See Supercession: 703361
(Superseded to 703361)

$

$

Not available

AS

3/8-16 x 35 Carriage Bolt, Pl.

$

$

Not available

AT

1/2 Flat Washer, Plated

$

$

Not available

AU

3/8 Flat Washer, Plated

$

$

Not available

AV

3/8-16 Cone Lock Nut, Pl.

$

$

Not available

AW

Lawn-Boy 18073

See Supercession: 112-0167
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

AX

Lawn-Boy 18024

See Supercession: 700134
(Superseded to 700134)

$162.99

$

In Stock, only 1 left!

0

AY

Lawn-Boy 23159

See Supercession: 700136
(Superseded to 700136)

$

$

Not available

AZ

Lawn-Boy 18116

See Supercession: 700130
(Superseded to 700130)

$218.99

$

In Stock, only 3 left!

0

BA

Lawn-Boy 24229

DISCONTINUED

$

$

Not available

BB

Lawn-Boy 18113

See Supercession: 700132
(Superseded to 700132)

$29.99

$

In Stock, only 1 left!

0

BC

Lawn-Boy 24230

See Supercession: 700128
(Superseded to 700128)

$

$

Not available

BD

Lawn-Boy 18080

See Supercession: 700122
(Superseded to 700122)

$4.49

$

In Stock, only 2 left!

0

BE

Lawn-Boy 18079

See Supercession: 700121
(Superseded to 700121)

$

$

Not available

BF

Lawn-Boy 13235

See Supercession: 146422
(Superseded to 146422)

$2.99

$

Usually ships in 3-6 days

0

BG

Lawn-Boy 18115

Output Shaft

$

$

Currently unavailable

BH

Lawn-Boy 9784

DISCONTINUED

$

$

Not available

BI

Lawn-Boy 18081

See Supercession: 700131
(Superseded to 700131)

$

$

Not available

BJ

Lawn-Boy 18083

See Supercession: 700123
(Superseded to 700123)

$39.99

$

Usually ships in 3-6 days

0

BK

Lawn-Boy 18744

See Supercession: 702982
(Superseded to 702982)

$10.99

$

In Stock, Qty 5

0

BL

Lawn-Boy 10515

Washer

$

$

Currently unavailable

BM

Lawn-Boy 18407

See Supercession: 700127
(Superseded to 700127)

$

$

Not available

BN

Lawn-Boy 18059

Impeller, Pulley Assembly

$

$

Currently unavailable

BO

Lawn-Boy 18074

DISCONTINUED
(Superseded to 740680)

$

$

Not available

BP

Lawn-Boy 1102

See Supercession: 700119
(Superseded to 700119)

$

$

Not available

BQ

Lawn-Boy 14915

See Supercession: 703160
(Superseded to 703160)

$

$

Not available

BR

Lawn-Boy 18056

Auger Assembly, R.H.

$

$

Currently unavailable

BS

Lawn-Boy 18057

Auger Assembly, L.H.

$

$

Currently unavailable

BT

1/4 x 1" Roll Pin

$

$

Not available

BU

1/4 x 1 1/4 Roll Pin, Plated

$

$

Not available

BV

1/8 x 1/2 Woodruff Key, Alloy H.T.

$

$

Not available

BW

3/32 x 3/4 Cotter Pin, Plated

$

$

Not available

BX

5/16-18 x 3/4 Hex Hd Cap Screw, Plated

$

$

Not available

BY

5/16 Spring Lock Washer, Pl.

$

$

Not available

BZ

5/16-18 Hex Nut, Plated

$

$

Not available

CA

1/4-20 Hex Nut

$

$

Not available

CB

1/4-20 x 1/2 Hex. Hd. Cap Screw

$

$

Not available

CC

1/4 Spring Lock Washer

$

$

Not available
