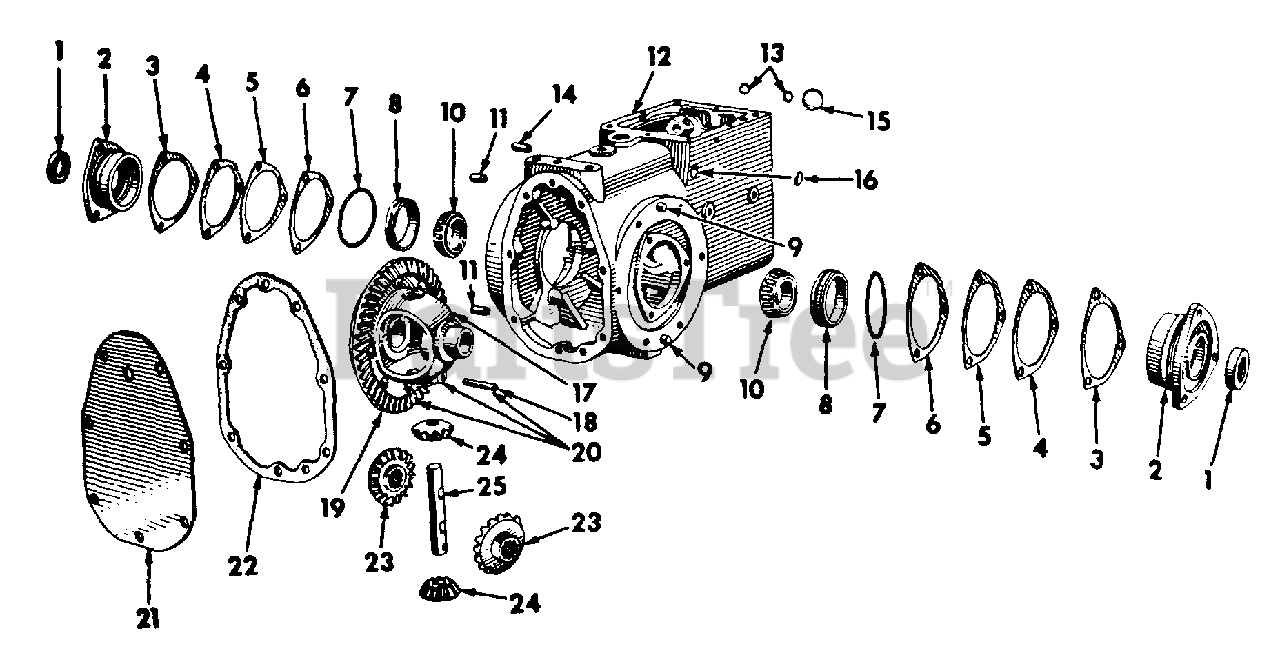

184 - International Harvester Cub Lo-Boy Tractor Transmission Case And Differential Parts Diagram

Cub Lo-Boy Tractor

Transmission Case And Differential Parts Diagram

  • Title

1

Cub Cadet IH-385872-R91

SEAL BRG RETAINER OIL
(Superseded to IH-385872-R92)

$

$

Not available

2

Cub Cadet IH-376158-R91

RETAINER ASSY, BRG

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

3

Cub Cadet IH-350794-R1

SHIM, BEARING RETAINER .004

Note: 3 OR AS REQUIRED

$

$

Currently unavailable

4

Cub Cadet IH-350795-R1

SHIM, BEARING RETAINER .007

Note: 4 OR AS REQUIRED

$

$

Not available

5

Cub Cadet IH-350796-R1

SHIM, BEARING RETAINER .0149
(Superseded to 717-3099)

Note: 2 OR AS REQUIRED

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-350797-R1

SHIM, BEARING RETAINER .0299
(Superseded to 717-3100)

Note: 2 OR AS REQUIRED

$

$

Not available

7

Cub Cadet IH-285723-R1

O-RING, 3-1/8 X 3-3/8 X 1/8

$

$

Not available

8

Cub Cadet IH-ST974

BEARING, CUP

$

$

Not available

9

Cub Cadet IH-404663-R1

PIN, CASE TO REAR RH AXLE HOUSING DOWEL

$

$

Currently unavailable

10

Cub Cadet IH-ST2049

BEARING ASSY, CONE

$

$

Not available

11

Cub Cadet IH-350799-R1

PIN, CASE TO REAR LH AXLE HOUSING DOWEL

$

$

Not available

12

Cub Cadet IH-404662-R41

CASE ASSY, TRANSMISSION

$

$

Currently unavailable

Cub Cadet IH-444574

PLUG

$

$

Currently unavailable

Cub Cadet IH-172530

PLUG

$

$

Currently unavailable

Cub Cadet IH-350799-R1

PIN

$

$

Not available

Cub Cadet IH-172557

PLUG

$

$

Currently unavailable

Cub Cadet IH-358756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-357931-R91

BEARING
(Superseded to 941-0364)

$

$

Not available

Cub Cadet IH-404663-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-527611-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-394088-R1

PLUG, BREATHER

Note: USED W/IH-404662-R3 CASE

$

$

Currently unavailable

Cub Cadet IH-444692

PLUG, 1/4-18 C-Z AUTO HEX-SOC-HD PIPE DRAIN

$

$

Currently unavailable

Cub Cadet IH-438159

PLUG, 1/2-14 AUTO SQ-HD PIPE

$

$

Not available

Cub Cadet IH-444574

PLUG, 1/4-18 AUTO SQ-HD PIPE

$

$

Currently unavailable

Cub Cadet IH-104938

CORK, NO. 2-1/2 DIA X 11/16

$

$

Currently unavailable

Cub Cadet IH-180174

BOLT, 1/2 X 1-1/8 TYPE 5

$

$

Currently unavailable

13

Cub Cadet IH-172528

PLUG, 9/16 EXPANSION - GEAR SHIFTER ROD HOLE

$

$

Currently unavailable

14

Cub Cadet IH-358756-R1

BUSHING, ACTUATING TOGGLE

$

$

Currently unavailable

15

Cub Cadet IH-172557

PLUG, 1-3/16 EXPANSION REVERSE IDLER GEAR SHAFT

$

$

Currently unavailable

16

Cub Cadet IH-172530

PLUG, 11/16 EXPANSION PTO SHIFTER SHAFT BEARING

$

$

Currently unavailable

17

Cub Cadet IH-350785-R92

CASE, DIFFERENTIAL

Note: ORDER IH-350785R92

$

$

Currently unavailable

Cub Cadet IH-104100

RIVET, 5/16 X 1-1/8 RD HD

$

$

Currently unavailable

18

Cub Cadet IH-350788-R1

PIN, PINION SHAFT LOCK

$

$

Not available

19

Cub Cadet IH-350787-R1

GEAR, DRIVE - 46T

$

$

Not available

20

Cub Cadet IH-350785-R92

CASE W/DRIVE GEAR ASSY, DIFFERENTIAL

$

$

Currently unavailable

21

Cub Cadet IH-384930-R11

PLATE ASSY, REAR COVER

$

$

Currently unavailable

Cub Cadet IH-179835

BOLT, 3/8 X 5/8 PLN TYPE 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-444788

PLUG, 1/2-14 AUTO-SQ-SOC-HD DRAIN

$

$

Not available

22

Cub Cadet IH-350837-R2

GASKET, TRANSMISSION CASE REAR COVER PLATE
(Superseded to IH-350837-R3)

$29.99

$

In Stock, Qty 7

0

23

Cub Cadet IH-350791-R1

GEAR, SIDE

$

$

Currently unavailable

24

Cub Cadet IH-350790-R1

PINION, 10T

$

$

Not available

25

Cub Cadet IH-350789-R1

SHAFT, PINION

$

$

Currently unavailable

Cub Cadet 404662-R3

CASE

$

$

Currently unavailable
