184 - International Harvester Cub Lo-Boy Tractor Transmission - 184 Tractor Parts Diagram

Cub Lo-Boy Tractor

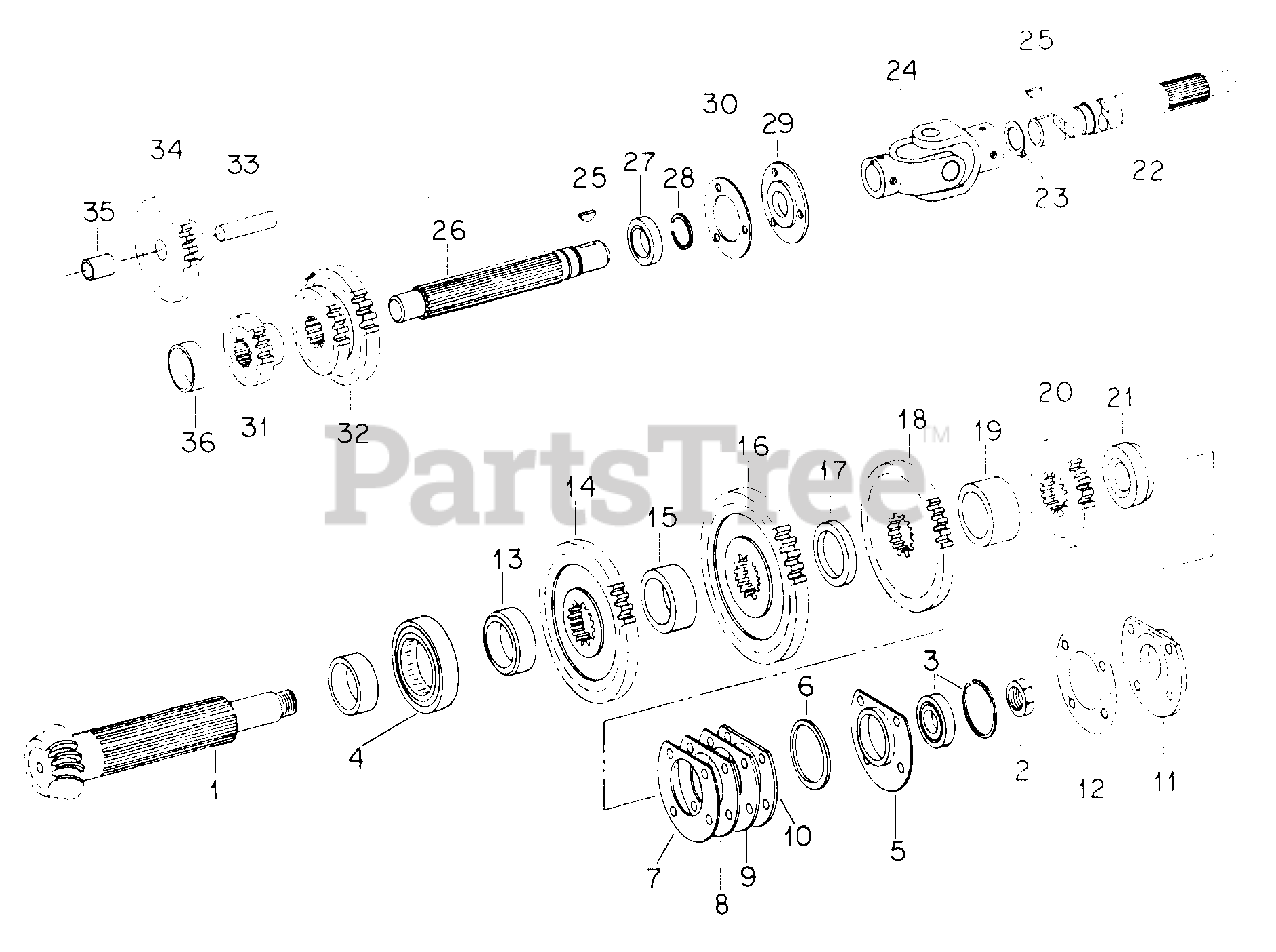

Transmission - 184 Tractor Parts Diagram

  • Title

1

Cub Cadet IH-351531-R1

COUNTERSHAFT, BEVEL PINION -1OT

$

$

Currently unavailable

Cub Cadet IH-108635

PIN, 1/8 X 1-1/8 PLN COT
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

2

IH-70119D

NUT, COUNTERSHAFT

$

$

Not available

3

Cub Cadet IH-ST668

BEARING, COUNTERSHAFT

$

$

Not available

4

Cub Cadet IH-350857-R91

BEARING, COUNTERSHAFT REAR

$

$

Not available

5

Cub Cadet IH-385688-R1

RETAINER, BEARING

$

$

Not available

6

Cub Cadet IH-350840-R1

RING, RETAINER SEAL

$

$

Currently unavailable

7

Cub Cadet IH-350841-R2

SHIM, BEARING RETAINER - EXTRA LIGHT

Note: (2 OR AS REQUIRED)

$

$

Not available

8

Cub Cadet IH-350842-R2

SHIM, BEARING RETAINER - LIGHT

Note: (2 OR AS REQUIRED)

$

$

Not available

9

Cub Cadet IH-350843-R2

SHIM, BEARING RETAINER - MEDIUM

Note: (1 OR AS REQUIRED)

$

$

Not available

10

Cub Cadet IH-350844-R2

SHIM, BEARING RETAINER - HEAVY

Note: (1 OR AS REQUIRED)

$

$

Not available

11

Cub Cadet IH-350845-R1

CAP, BEARING RETAINER

$

$

Currently unavailable

Cub Cadet IH-179815

BOLT, 5/16 X 11/16 PLN TYPE 5

$

$

Currently unavailable

12

Cub Cadet IH-350846-R1

GASKET, BEARING RETAINER CAP

$

$

Not available

13

Cub Cadet IH-351532-R1

SPACER, REV SPEED GEAR & COUNTERSHAFT BEARING

$

$

Not available

14

Cub Cadet IH-350848-R1

GEAR, REVERSE SPEED - 35T
(Superseded to 717-3092)

$146.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-351532-R1

SPACER, 1ST & REVERSE SPEED GEAR

$

$

Not available

16

Cub Cadet IH-350850-R1

GEAR, 1ST SPEED
(Superseded to 917-3090)

$

$

Not available

17

Cub Cadet IH-351533-R1

SPACER, 1ST & 2ND SPEED GEAR

$

$

Not available

18

Cub Cadet IH-364519-R1

GEAR, 2ND SPEED - 36T

$

$

Not available

19

Cub Cadet IH-350853-R1

SPACER, 2ND & 3RD SPEED GEAR

$

$

Not available

20

Cub Cadet IH-350854-R1

GEAR, 3RD SPEED - 26T

$

$

Not available

21

Cub Cadet IH-385689-R2

SPACER, 3RD SPEED GEAR & BEARING

$

$

Currently unavailable

22

Cub Cadet IH-117242-C1

SHAFT, MAIN CLUTCH

Note: (TRACTOR W/O CREEPER DRIVE)

$

$

Not available

22

Cub Cadet IH-126206-C1

SHAFT, MAIN CLUTCH

Note: (TRACTORS W/CREEPER DRIVE)

$

$

Not available

23

Cub Cadet IH-675683-R1

RING, RETAINING

$

$

Not available

24

Cub Cadet IH-117297-C91

JOINT ASSY, UNIVERSAL

$

$

Not available

25

Cub Cadet IH-124553

KEY, NO. 15 WOODRUFF
(Superseded to 714-3013)

$

$

Not available

Cub Cadet IH-125843

SCREW, 3/8 X 3/8 C/PT ZNP HDL/S SET

$

$

Currently unavailable

26

Cub Cadet IH-117289-C1

SHAFT, MAIN TRANSMISSION

Note: (TRACTOR W/O CREEPER DRIVE)

$

$

Currently unavailable

26

Cub Cadet IH-404667-R1

SHAFT, MAIN TRANSMISSION

Note: (TRACTOR W/CREEPER DRIVE)

$

$

Not available

27

Cub Cadet IH-ST542

BEARING, SHAFT FRONT

$

$

Currently unavailable

28

Cub Cadet IH-351539-R1

RING, BEARING LOCK

$

$

Not available

29

Cub Cadet IH-528810-R91

SEAL, SHAFT OIL

$

$

Not available

Cub Cadet IH-179815

BOLT, 5/16 X 11/16 PLN TYPE 5

$

$

Currently unavailable

30

Cub Cadet IH-350866-R1

GASKET, SHAFT OIL SEAL

Note: (TRACTOR W/O CREEPER DRIVE)

$

$

Currently unavailable

31

Cub Cadet IH-350867-R1

GEAR, 1ST AND REVERSE SLIDING (13T)
(Superseded to 917-3078)

$

$

Not available

32

Cub Cadet IH-364520-R1

GEAR, 2ND AND 3RD SLIDING (16T & 26T)

$

$

Not available

33

Cub Cadet IH-350869-R1

SHAFT, REVERSE IDLER

$

$

Currently unavailable

Cub Cadet IH-179796

BOLT, 1/4 X 7/8 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 PLN LOCK

$

$

Currently unavailable

34

Cub Cadet IH-350870-R11

GEAR ASSY, REVERSE IDLER
(Superseded to 917-3188)

$

$

Not available

35

Cub Cadet IH-350871-R1

BUSHING, GEAR

$

$

Not available

36

Cub Cadet IH-357931-R91

BEARING, SPLINE SHAFT REAR
(Superseded to 941-0364)

Note: (PART OF TRANSMISSION CASE ASSY)

$

$

Not available
