184 - International Harvester Cub Lo-Boy Tractor Steering And Supports Parts Diagram

Cub Lo-Boy Tractor

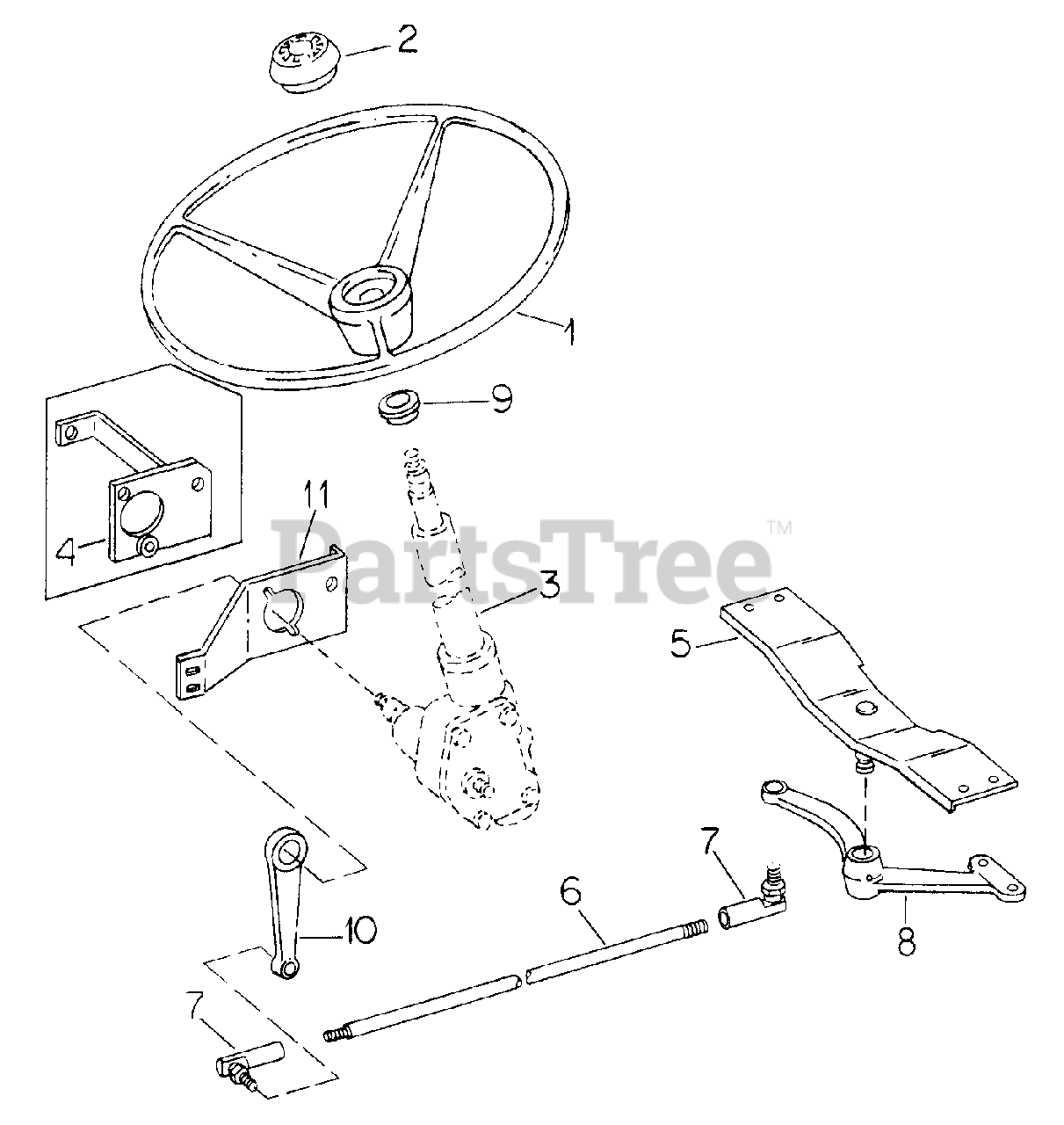

Steering And Supports Parts Diagram

  • Title

1

Cub Cadet IH-404601-R1

WHEEL, STEERING

$

$

Not available

2

Cub Cadet IH-533742-R1

CAP, STEERING
(Superseded to 931-3012)

Note: REPLACES IH-393157-R2

$

$

Not available

3

Cub Cadet IH-404589-R91

GEAR ASSY STEERING

$

$

Currently unavailable

Cub Cadet IH-124944

NUT, 5/8-18 C-Z HEX. JAM
(Superseded to 712-3056)

$4.99

$

In Stock, only 3 left!

0

4

Cub Cadet IH-544836-R1

PLATE ASSY, STEERING SUPPORT
(Superseded to IH-544836-R2)

$

$

Not available

Cub Cadet IH-404594-R1

SPACER, STEERING SUPPORT

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-180123

SCREW, 3/8-16 X 1-1/8 ZNP HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-180147

SCREW, 7/16-14 X 1-1/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet IH-61252H

WASHER, 15/32 X 3/4 X 11 GA

Note: (1 OR AS REQUIRED)

$

$

Currently unavailable

Cub Cadet IH-23408-R1

WASHER, 15/32 X 3/4 X 16 GA

Note: (1 OR AS REQUIRED)

$

$

Currently unavailable

Cub Cadet IH-588099-R1

WASHER, 15/32 X 3/4 X 22 GA

Note: (1 OR AS REQUIRED)

$

$

Currently unavailable

5

Cub Cadet IH-404597-R1

SUPPORT ASSY, STEERING LEVER

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-427637

NUT, 3/4-10 SLT HEX

$

$

Currently unavailable

Cub Cadet IH-103388

PIN, 1/8 X 1-3/4 COT

$

$

Currently unavailable

Cub Cadet IH-180173

SCREW, 1/2-13 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-180175

SCREW, 1/2-13 X 1-1/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-178375-R1

WASHER, 25/32 X 1-1/4 X 16 GA

$

$

Not available

6

Cub Cadet IH-404595-R1

ROD, DRAG LINK

$

$

Not available

7

Cub Cadet IH-529430-R1

JOINT, DRAG LINK BALL

Note: (ALSO ORDER NUT IH-125250 & PIN, IH-103375)

$

$

Not available

Cub Cadet IH-125250

NUT, 1/2-20 CDP SLT HEX
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-124934

NUT, 1/2-20 C-Z HEX JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

Cub Cadet IH-103375

PIN, 3/32 X 1-1/4 COT

$

$

Currently unavailable

8

Cub Cadet IH-404600-R1

LEVER, STEERING

$

$

Not available

Cub Cadet IH-443566

FITTING, 3/16 DRIVE TYPE STR LUB
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet IH-400501-R1

BEARING, COLUMN UPPER
(Superseded to 941-3023)

$8.49

$

In Stock, Qty 15

0

Cub Cadet IH-180145

BOLT, 7/16 X 1 TYPE 5
(Superseded to 710-0505)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120383

WASHER, 7/16 LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet IH-404596-R1

ARM, STEERING

$

$

Currently unavailable

11

Cub Cadet IH-106739-C1

SUPPORT, STEERING GEAR

Note: BOLT INTO CLUTCH YOKE BRACKET - FOR 184 TRACTOR

$

$

Currently unavailable

Cub Cadet IH-495967-R1

BOLT, 3/8 X 1 CRG TYPE 5
(Superseded to 710-3097)

$6.99

$

In Stock, Qty 5

0

Cub Cadet IH-25709-R1

WASHER, .406 X .812 X .089 HDN
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-180122

BOLT, 3/8 X 1 TYPE 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0
