184 - International Harvester Cub Lo-Boy Tractor Starting And Lighting Parts Diagram

Cub Lo-Boy Tractor

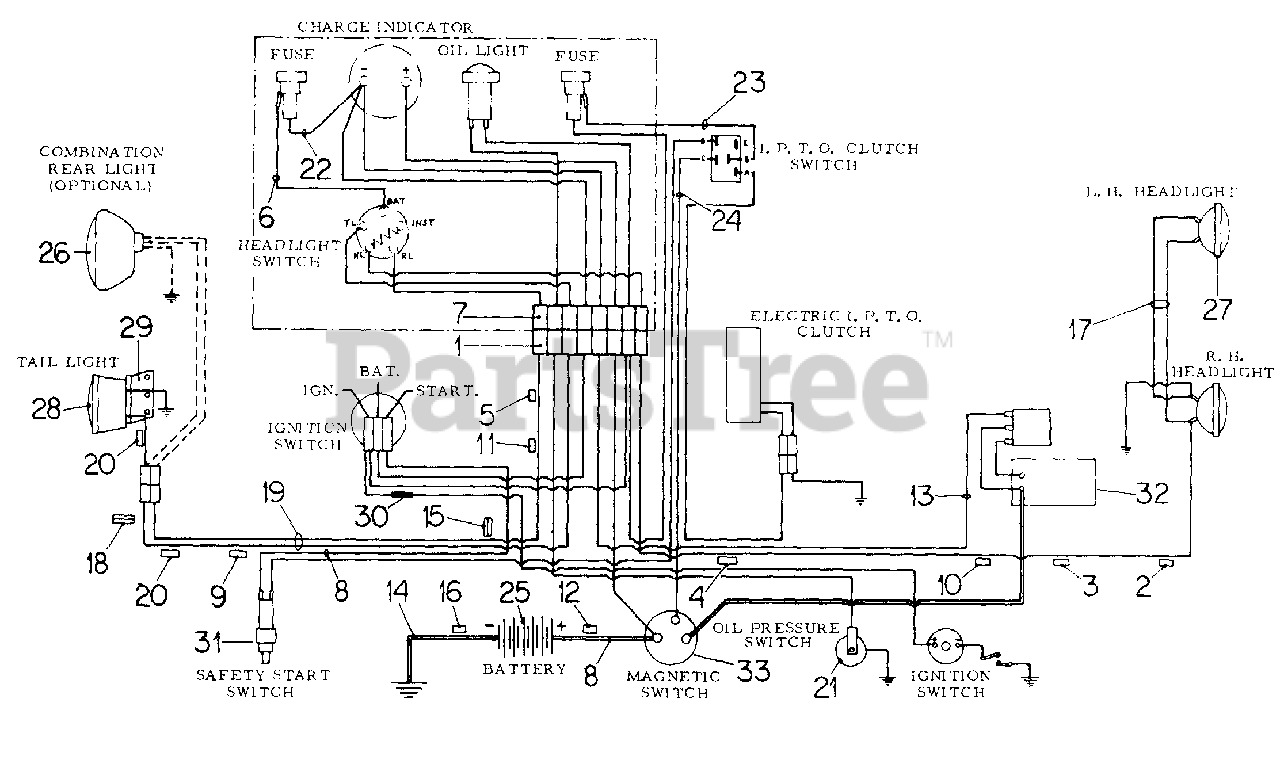

Starting And Lighting Parts Diagram

  • Title

1

Cub Cadet IH-126335-C1

HARNESS, MAIN CABLE

Note: TRACTORS W/MOTOR-GENERATOR

$

$

Currently unavailable

1

Cub Cadet IH-140034-C1

HARNESS, MAIN CABLE

Note: TRACTORS W/ALTER-GEN. & CRANKING MOTOR

$

$

Currently unavailable

2

Cub Cadet IH-132031-C1

CLIP, RAD UPPER RH MTG BOLT

$

$

Currently unavailable

3

Cub Cadet IH-384554-R1

CLIP, MOTOR GEN. ADJ. BRACKET

$

$

Currently unavailable

4

Cub Cadet IH-61813-D

CLIP, THROTTLE CABLE

$

$

Not available

5

Cub Cadet IH-371036-R1

CLIP, CABLE

Note: TOP RH REAR ENGINE & FUEL TANK SUPPORT

$

$

Not available

Cub Cadet IH-179812

BOLT, 5/16 X 1/2 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-180056

BOLT, 5/16 X 3/8 TYPE 5

$

$

Currently unavailable

6

Cub Cadet IH-126348-C1

CABLE, LT SWITCH TO FUSE

$

$

Currently unavailable

7

Cub Cadet IH-126347-C1

CABLE, INSTRUMENT PANEL

$

$

Currently unavailable

8

Cub Cadet IH-387263-R91

CABLE, BATTERY TO MAGNETIC SWITCH

$

$

Currently unavailable

9

Cub Cadet IH-370535-R1

CLIP, CABLE LH REAR FRAME CHANNEL

$

$

Not available

10

Cub Cadet IH-384559-R1

CLIP, CABLE WATER OUTLET

$

$

Currently unavailable

11

Cub Cadet IH-545996-R1

CLIP, CABLE FIREWAIL

$

$

Currently unavailable

12

Cub Cadet IH-536034-R1

CLIP, CABLE

$

$

Currently unavailable

Cub Cadet IH-179791

BOLT, 1/4 X 1/2 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4 PLN TYPE 5

$

$

Currently unavailable

13

Cub Cadet IH-126343-C1

CABLE, MAGNETIC SWITCH TO GENERATOR

Note: TRACTORS W/MOTOR; GENERATOR

$

$

Currently unavailable

13

Cub Cadet IH-140043-C1

CABLE, MAGNETIC SWITCH TO CRANKING MOTOR

Note: TRACTORS W/ALTER; GEN & CRANKING MOTOR

$

$

Currently unavailable

14

Cub Cadet IH-126344-C1

CABLE, BATTERY TO GROUND

$

$

Currently unavailable

15

Cub Cadet IH-42731-H

GROMMET, RUBBER IN PEDESTAL LH SIDE

$

$

Currently unavailable

16

Cub Cadet IH-384559-R1

CLIP, BATTERY CABLE

$

$

Currently unavailable

17

Cub Cadet IH-126351-C1

CABLE, HEADLIGHT GROUND

$

$

Not available

18

Cub Cadet IH-364657-C1

GROMMET RUBBER TAIL LIGHT

$

$

Currently unavailable

19

Cub Cadet IH-126349-C2

CABLE, TAIL LIGHT

$

$

Currently unavailable

20

Cub Cadet IH-362121-R1

CLIP
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-179791

BOLT, 1/4 X 1/2 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4 PLN TYPE 5

$

$

Currently unavailable

21

Cub Cadet IH-365501-R1

TERMINAL, OIL PRESSURE SWITCH

$

$

Currently unavailable

22

Cub Cadet IH-57592-C1

CABLE, CHARGE INDICATOR TO FUSE

$

$

Currently unavailable

23

Cub Cadet IH-126346-C1

CABLE, CLUTCH SWITCH -B- TO FUSE

$

$

Currently unavailable

24

Cub Cadet IH-126390-C1

CONNECTOR, CABLE

$

$

Currently unavailable

25

IH-PR22NF

BATTERY, 12 VOLT

$

$

Not available

26

Cub Cadet IH-126470-C1

LIGHT, SEALED BEAM HEAD
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

27

Cub Cadet IH-107333-C1

RING, HEADLIGHT
(Superseded to IH-107333-C2)

$

$

Not available

28

Cub Cadet IH-121846-C91

LIGHT ASSY, TAIL 12 V

Note: ONLY SERVICEABLE ITEMS ARE THE FOLLOWING 4 ITEMS

$

$

Currently unavailable

Cub Cadet IH-124228-C1

LENS, TAIL LIGHT

Note: SERVICEABLE ITEM; REPLACES IH-121850-C1

$

$

Currently unavailable

Cub Cadet IH-142450

LAMP, NO. 67

Note: SERVICEABLE ITEM

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

Note: SERVICEABLE ITEM

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

Note: SERVICEABLE ITEM

$4.99

$

In Stock, Qty 17

0

29

Cub Cadet IH-121848-C1

BRACKET

$

$

Currently unavailable

Cub Cadet IH-180020

BOLT, 1/4 X 3/4 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

30

Cub Cadet IH-107558-C1

RESISTOR -25 OHM

Note: REPLACES IH-534784-R1; TRACTOR W/ALTER; GEN & CRANKING MOTOR

$

$

Currently unavailable

Cub Cadet IH-180081

BOLT, 5/16 X 1-1/4 TYPE 5
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 19

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

31

Cub Cadet IH-106699-C91

SWITCH, NEUTRAL STARTING
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

32

Cub Cadet IH-1109352

MOTOR ASSY, CRANKING; IH-131174-C91

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-120394

WASHER, .406 X .812 X .051
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-120394

WASHER, 3/8 LOCK
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

33

Cub Cadet IH-121613-C1

SWITCH, MAGNETIC
(Superseded to 925-3001)

Note: REPLACES IH-545756-R2

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120367

NUT, 1/4-NF TYPE 5
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-611344-R1

WASHER 11/32 X 7/8 X 16 GA
(Superseded to 736-0195)

$

$

Not available

Cub Cadet IH-120217

WASHER NO. 10 LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, NO. 10-NF MACH SCREW TYPE 1
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-114604

WASHER, 1/4 EXT PLN TOOTH LOCK
(Superseded to 936-0222)

$

$

Not available

Cub Cadet IH-109084

NUT, 1/4 PLN TYPE 5

$

$

Currently unavailable
