184 - International Harvester Cub Lo-Boy Tractor Reduction Gear Box Parts Diagram

Cub Lo-Boy Tractor

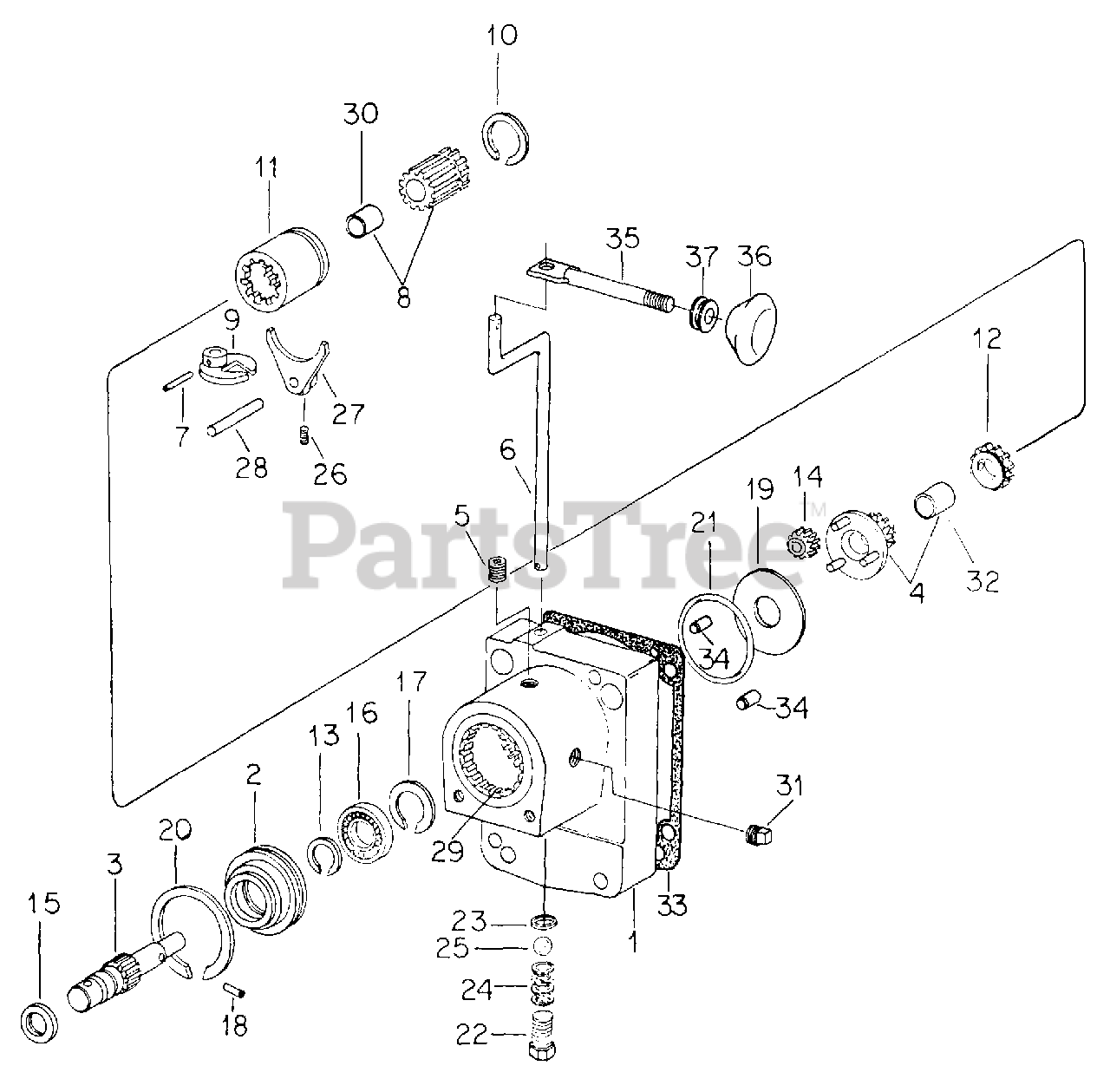

Reduction Gear Box Parts Diagram

  • Title

Cub Cadet IH-530421-R92

GEAR BOX ASSY, REDUCTION DRIVE

Note: CUB 154 & 185 LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-64798-C91

GEAR BOX ASSY, REDUCTION DRIVE

Note: 184 TRACTOR

$

$

Currently unavailable

Cub Cadet IH-20100-R1

BOLT 1/2 X 2-3/4 TYPE 8

$

$

Currently unavailable

1

Cub Cadet IH-530427-R2

HOUSING ASSY, MAIN GEAR

$

$

Currently unavailable

2

Cub Cadet IH-530428-R1

RETAINER, BRG

$

$

Currently unavailable

3

Cub Cadet IH-55369-C2

SHAFT, SUN GEAR DRIVE

Note: FOR GEAR BOX, IH-421R92

$

$

Currently unavailable

Cub Cadet IH-117582-C1

SHAFT, SUN GEAR DRIVE

Note: FOR GEAR BOX, IH-64798-C91

$

$

Currently unavailable

Cub Cadet IH-124543

KEY, 1/8 X 1/2 WOODRUFF 3

$

$

Not available

4

Cub Cadet IH-532462-R2

PLATE ASSY, LOW GEAR DRIVE

$

$

Not available

5

Cub Cadet IH-110891H

VENT, AIR 1/8-27 PTF -REPLACES PLUG IH-444703

$

$

Not available

Cub Cadet IH-444030

REDUCER, PIPE 1/2-14 X 1/8-27 HEX

$

$

Currently unavailable

6

Cub Cadet IH-530441-R1

LEVER, CONTROL

$

$

Currently unavailable

7

Cub Cadet IH-19313-R1

PIN, 5/32 X 7/8 HV COILED SPRING

$

$

Not available

8

Cub Cadet IH-532461-R1

DRIVE W/BUSHING ASSY, GEAR SHAFT SPLINE

$

$

Currently unavailable

Cub Cadet IH-617941-R1

PIN 5/16 X 2 HV COILED SPRING
(Superseded to 715-3009)

$9.99

$

In Stock, only 1 left!

0

9

Cub Cadet IH-530440-R1

PLATE, GEAR SHIFT

$

$

Currently unavailable

10

Cub Cadet IH-202306-R1

RING, DRIVE GEAR RETAINER

$

$

Not available

11

Cub Cadet IH-530431-R1

SLEEVE, SPINDLE DRIVE

$

$

Currently unavailable

12

Cub Cadet IH-55370-C3

GEAR, DIRECT DRIVE SPLINE

Note: REPLACES GEAR, 530434-R1 BY ALSO ORDERING SHAFT, IH-55369-C2, AND KEY, IH-124543

$

$

Currently unavailable

13

Cub Cadet IH-675683-R1

RING, RETAINING

$

$

Not available

14

Cub Cadet IH-530435-R2

GEAR, PLANET

$

$

Not available

15

Cub Cadet IH-893788-C91

SEAL, OIL

$

$

Currently unavailable

16

IH-ST225-B

BEARING, BALL

$

$

Not available

17

Cub Cadet IH-456736-R1

RING, RETAINING

$

$

Not available

18

Cub Cadet IH-19689-R1

PIN, 1/4 X 1-1/4 HV COILED SPRING
(Superseded to IH-19689-R2)

$

$

Not available

19

Cub Cadet IH-530437-R1

PLATE, WEAR

$

$

Currently unavailable

20

Cub Cadet IH-24655-R1

RING, INTERNAL RETAINING

$

$

Currently unavailable

21

Cub Cadet IH-22409-R1

O-RING, 2-5/8 X 2-7/8 X 1/8

$

$

Not available

22

Cub Cadet IH-180116

SCREW, 3/8-16 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

23

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet IH-474032-R1

SPRING, RETAINER BALL

$

$

Not available

25

Cub Cadet IH-17009-R1

BALL, 9/32 CR-STL

$

$

Not available

26

Cub Cadet IH-139329

SCREW, 1/4-20 X 5/8 HEX-SOC-HD CONE-PT SET

$

$

Currently unavailable

27

Cub Cadet IH-530439-R1

FORK, GEAR SHIFT

$

$

Currently unavailable

28

Cub Cadet IH-530438-R1

SPINDLE, GEAR SHIFT FORK

$

$

Currently unavailable

29

Cub Cadet IH-57313-C2

GEAR, INTERNAL

$

$

Currently unavailable

Cub Cadet IH-27280-R1

PIN, 3/16 X 5/8 HV COILED SPRING

$

$

Not available

30

Cub Cadet IH-64791-C1

BUSHING, SPLINE DRIVE

$

$

Currently unavailable

31

Cub Cadet IH-445686

PLUG, 3/8-18 AUTO SQ-HD PIPE
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

32

Cub Cadet IH-64793-C1

BUSHING, DRIVE PLATE

$

$

Currently unavailable

33

Cub Cadet IH-376216-R1

GASKET, REDUCTION GEAR BOX HOUSING
(Superseded to IH-376216-R2)

$

$

Not available

34

Cub Cadet IH-350799-R1

PIN, 7/16 X 7/8 DOWEL

Note: ON TRANS CASE & GEAR BOX ASSY

$

$

Not available

35

Cub Cadet IH-530426-R1

HANDLE, CREEPER DRIVE CONTROL

$

$

Currently unavailable

36

Cub Cadet IH-404931-R1

KNOB, CONTROL HANDLE

$

$

Currently unavailable

37

Cub Cadet IH-532079-R1

BUSHING, NYLON SNAP

$

$

Currently unavailable
