184 - International Harvester Cub Lo-Boy Tractor Main Frame And Supports Parts Diagram

Cub Lo-Boy Tractor

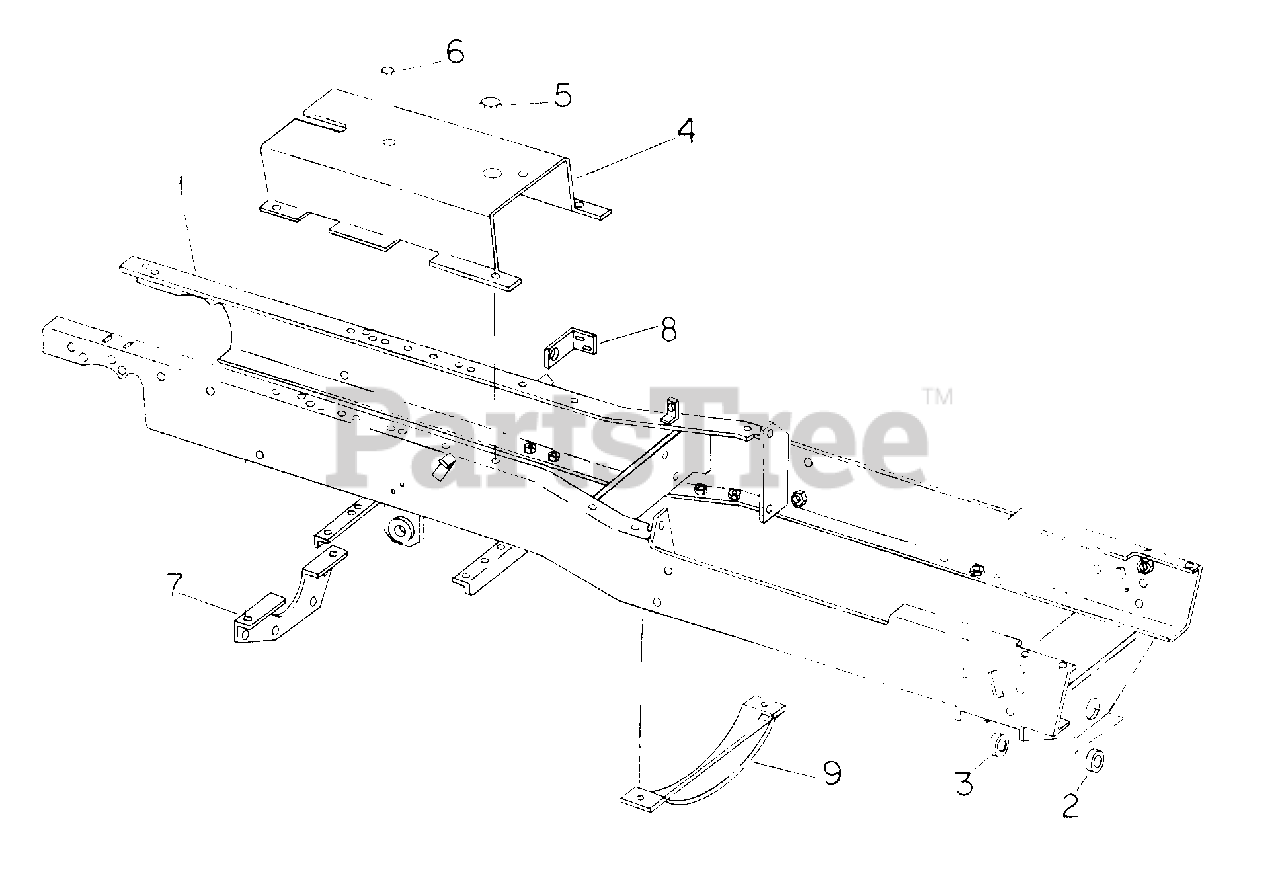

Main Frame And Supports Parts Diagram

  • Title
1

$

$

Currently unavailable

Cub Cadet IH-180128

BOLT, 3/8 X 1-3/4 TYPE 5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180137

BOLT, 3/8 X 2-3/4 TYPE 5
(Superseded to 710-3022)

$4.99

$

In Stock, Qty 7

0

Cub Cadet IH-120382

WASHER, 3/8 LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180175

BOLT, 1/2 X 1-1/4 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-25555-R1

WASHER, .531 X 1.250 X .188 PHC HDN

$

$

Currently unavailable

2

Cub Cadet IH-404618-R1

HUB, FRONT AXLE PIVOT PIN FRONT

$

$

Currently unavailable

3

Cub Cadet IH-404619-R1

HUB, FRONT AXLE PIVOT PIN REAR

$

$

Not available

4

Cub Cadet IH-404627-R2

COVER, FRAME TOP

$

$

Currently unavailable

Cub Cadet IH-172415

SCREW, NO. 12 X 1/2 H-HD TAP
(Superseded to 710-1189)

$

$

Not available

5

Cub Cadet IH-142095

PLUG, 1-1/4 BUTTON

$

$

Currently unavailable

6

Cub Cadet IH-142126

PLUG, 7/8 BUTTON

$

$

Currently unavailable

7

Cub Cadet IH-106912-C1

SUPPORT, TRANSMISSION

$

$

Not available

Cub Cadet IH-180177

BOLT, 1/2 X 1-1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-25555-R1

WASHER, .531 X 1.250 X .188 PHC HDN

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-117247-C1

BRACKET, SWITCH

$

$

Currently unavailable

Cub Cadet 1H-598795-R1

BOLT, 1/4 x 3/4 CRG TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, .281 X .625 X .051
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

9

Cub Cadet IH-404624-R2

SHIELD ASSY, FLYWHEEL

$

$

Currently unavailable

Cub Cadet IH-172427

SCREW, 1/4 X 1/2 H/HD TAP

$

$

Not available

Cub Cadet IH-126293-C1

ANGLE, ENGINE MTG. -LH-

$

$

Currently unavailable

Cub Cadet IH-126294-C1

ANGLE, ENGINE MTG. -RH-

$

$

Currently unavailable

Cub Cadet IH-404916-R1

BOLT, FRONT ENGINE MTG.

$

$

Currently unavailable

Cub Cadet IH-124589

NUT, 5/8 TYPE 5

$

$

Currently unavailable
