184 - International Harvester Cub Lo-Boy Tractor Instrument Panel Parts Diagram

Cub Lo-Boy Tractor

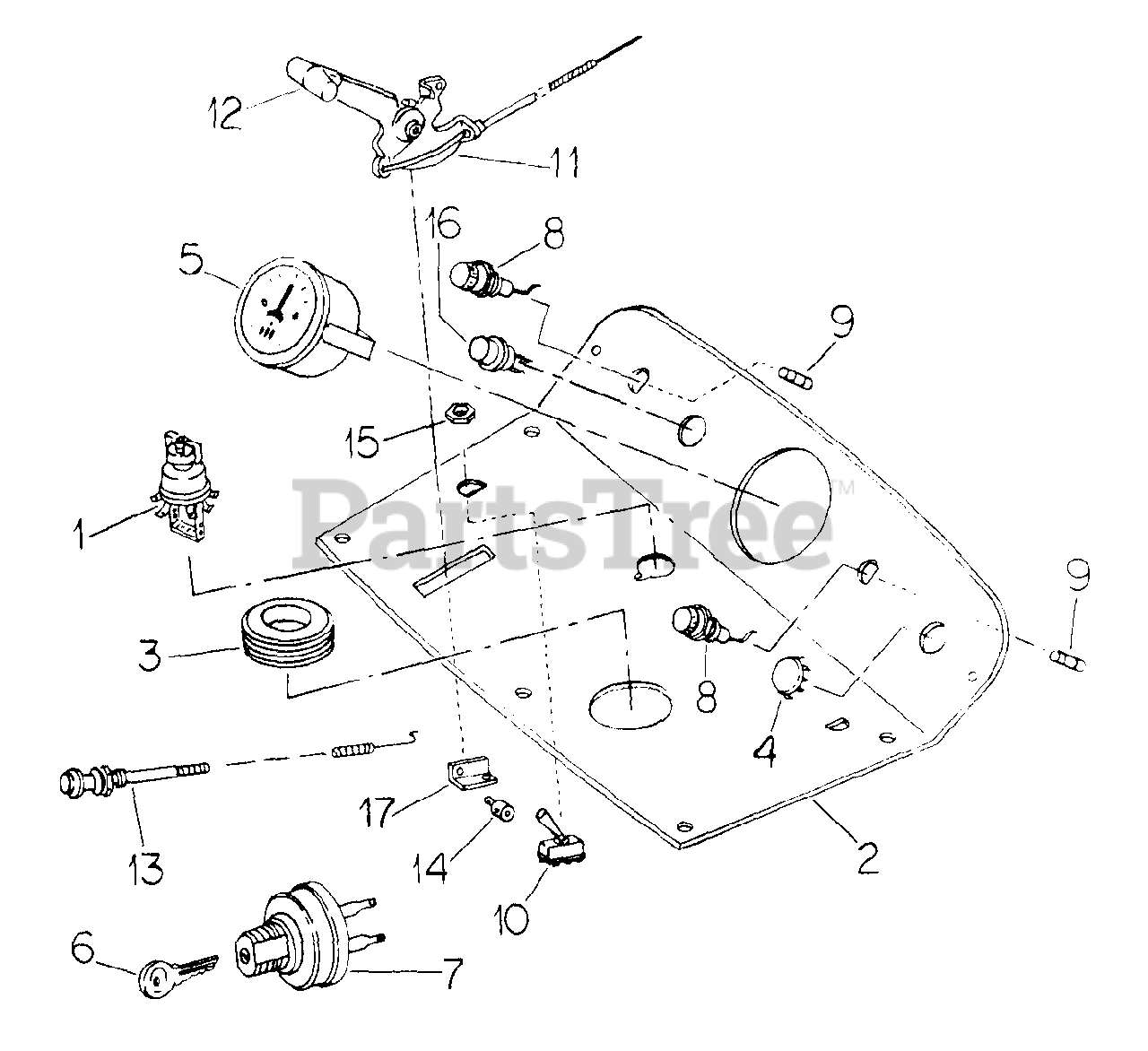

Instrument Panel Parts Diagram

  • Title

1

Cub Cadet IH-376851-R92

SWITCH, LIGHTING
(Superseded to IH-376851-R93)

$92.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-132259-C1

PANEL ASSY, INSTRUMENT

$

$

Currently unavailable

Cub Cadet IH-23927-R1

SCREW, 1/4 X 3/4 CAD P/HDCR MACH

$

$

Currently unavailable

Cub Cadet IH-24407-R1

SCREW, 1/4-14 X 1/2 P/HDCR TAP

$

$

Currently unavailable

3

Cub Cadet IH-539643-R1

WASHER, INSTRUMENT PANEL

$

$

Currently unavailable

4

Cub Cadet IH-432281

PLUG, 29/32 BUTTON CIGAR LIGHTER OPENING

$

$

Currently unavailable

5

Cub Cadet IH-378424-R91

INDICATOR, CHARGE - TRACTOR W/MOTOR-GENERATOR
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

Cub Cadet IH-536229-R1

INDICATOR, CHARGE - TRACTOR W/ALTERNATOR-GENERATOR

$

$

Not available

6

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

7

Cub Cadet IH-60736-C2

SWITCH, BATTERY IGNITION KEY START
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-375431-R1

WASHER, 19/32 X 1 X 11 GA

$11.99

$

In Stock, only 1 left!

0

Cub Cadet IH-365502-R1

NUT, SWITCH MTG

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-376852-R91

HOUSING ASSY, FUSE
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

9

Cub Cadet IH-120151

FUSE, CARTRIDGE TYPE AGC15

$

$

Currently unavailable

10

Cub Cadet IH-107372-C1

SWITCH, IPTO
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

Cub Cadet IH-178373-R1

WASHER, .531 X 1.000 X .056
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet IH-126262-C1

LEVER, THROTTLE CABLE

$

$

Not available

12

Cub Cadet IH-530118-R1

KNOB, THROTTLE CONTROL
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

Cub Cadet IH-124920

NUT, 5/16 NF JAM TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120221

SCREW, NO. 10 X 1/2 ZNP R/HDS MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-529926-R1

CABLE, CHOKE LEVER

$

$

Not available

Cub Cadet IH-529927-R1

BRACKET, CHOKE CONTROL

$

$

Currently unavailable

14

Cub Cadet IH-404853-R1

PIN, GOVERNOR CONTROL SWIVEL

$

$

Currently unavailable

Cub Cadet IH-120385

WASHER, .250 X .562 X .036

$

$

Currently unavailable

Cub Cadet IH-103361

PIN, 1/16 X 1/2 PLN COT

$

$

Currently unavailable

Cub Cadet IH-132305

SCREW, NO. 10-NF X 3/8 ZNP FIL/HDS MACH

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, .406 X .812 X .051 PLN

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 PLN COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet IH-57603-C1

NUT, SWITCH

$

$

Not available

16

Cub Cadet IH-107595-C91

LIGHT ASSY, INDICATOR

Note: COMPOSED OF THE FOLLOWING 2 ITEMS

$

$

Currently unavailable

Cub Cadet IH-71652-C1

LENS

$

$

Currently unavailable

Cub Cadet IH-24929-R1

BULB

$

$

Currently unavailable

17

Cub Cadet IH-126263-C1

BRACKET, THROTTLE CONTROL

$

$

Currently unavailable
