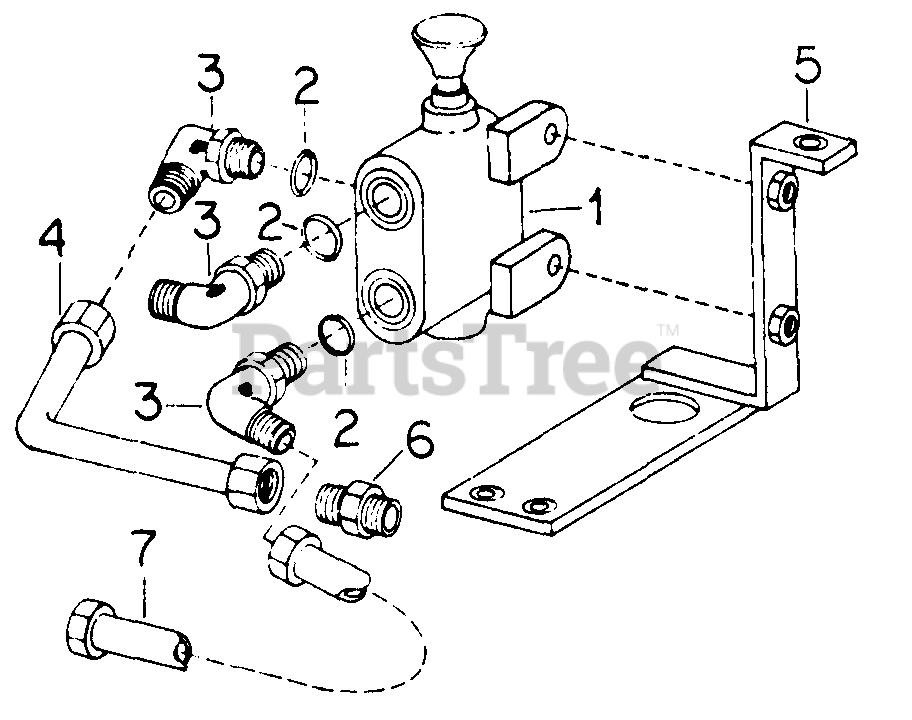

184 - International Harvester Cub Lo-Boy Tractor Hyd. Selector Valve & Connections - Tractors W/Hyd. Lift & 3-Pt. Hitch Parts Diagram

Cub Lo-Boy Tractor

Hyd. Selector Valve & Connections - Tractors W/Hyd. Lift & 3-Pt. Hitch Parts Diagram

  • Title

1

Cub Cadet IH-531837-R91

VALVE ASSY, SELECTOR

Note: FOR COMPONENTS SEE "SELECTOR VALVE" ILLUSTRATION AND PARTS LIST.

$

$

Currently unavailable

Cub Cadet IH-180037

BOLT, 1/4 X 1-5/8 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet IH-364839-R1

O-RING, 3/8 OD TUBE
(Superseded to 721-3001)

$3.49

$

In Stock, Qty 6

0

3

Cub Cadet IH-9410976

ELBOW, 9/16-18 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG
(Superseded to 727-3012)

$26.99

$

In Stock, only 4 left!

0

4

Cub Cadet IH-135479-C1

TUBE ASSY, SELECTOR VALVE

$

$

Currently unavailable

5

Cub Cadet IH-531827-R1

BRACKET ASSY, VALVE MOUNTING

$

$

Currently unavailable

Cub Cadet IH-180018

BOLT, 1/4 X 5/8 TYPE 5
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-21126-R1

SCREW, 3/8 X 5/8 ZNP P/HDS MACH

$

$

Currently unavailable

6

Cub Cadet IH-9402786

UNION, 9/16-18 37 DEG HY FLARED TUBE

$

$

Currently unavailable

7

Cub Cadet IH-135394-C1

HOSE, DIVERTER VALVE

$

$

Currently unavailable
