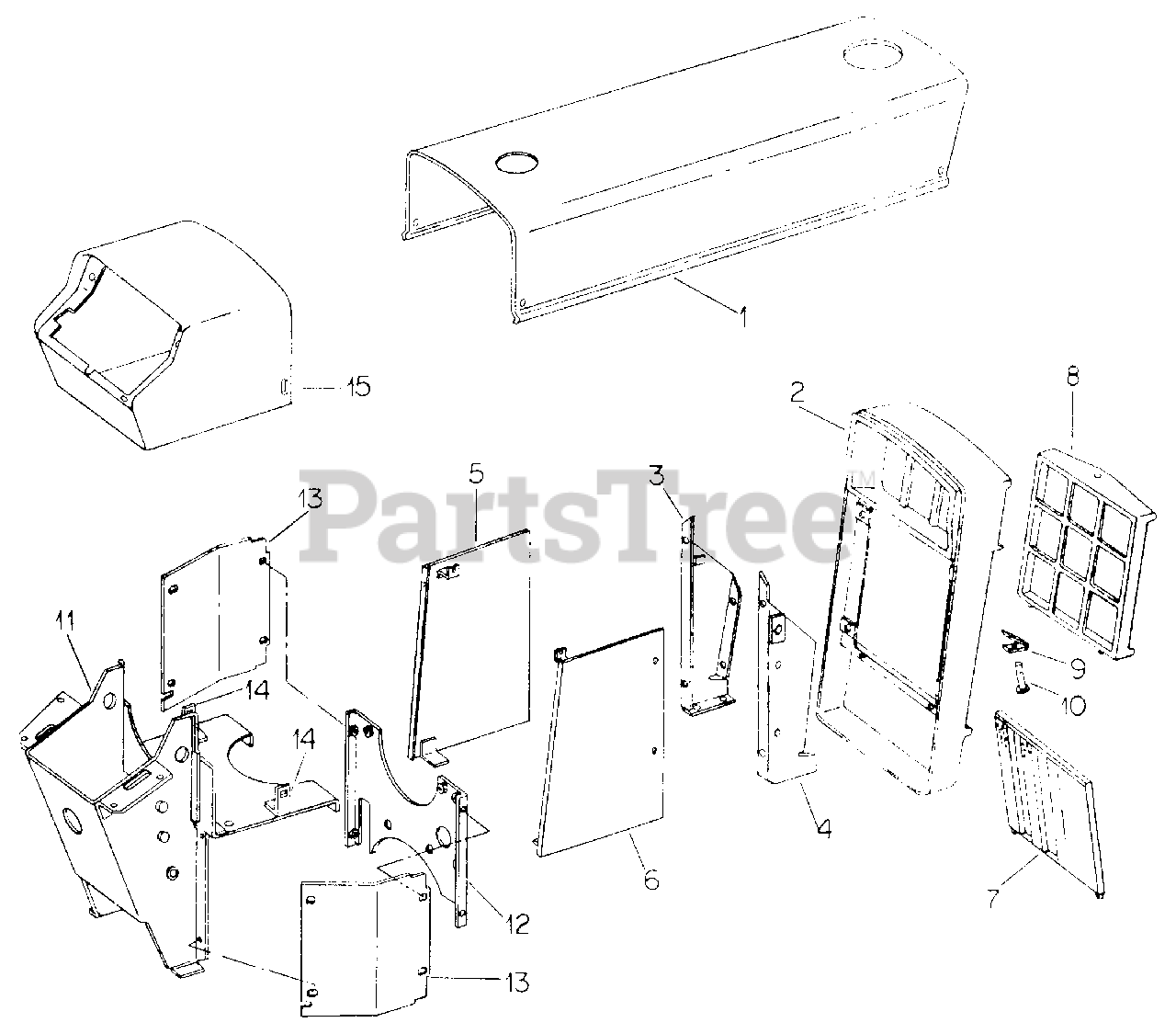

184 - International Harvester Cub Lo-Boy Tractor Hood, Panel & Support Parts Diagram

Cub Lo-Boy Tractor

Hood, Panel & Support Parts Diagram

  • Title

1

Cub Cadet IH-132205-C1

HOOD

$

$

Currently unavailable

Cub Cadet IH-385157-R1

SCREW, 5/16-18 X 5/8 BEVEL WASHER

$

$

Not available

2

Cub Cadet IH-132247-C1

HOUSING, GRILLE

$

$

Currently unavailable

Cub Cadet IH-180077

BOLT, 5/16 X 3/4 TYPE 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

Note: AS MANY AS REQ'D -4

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-132255-C2

SUPPORT ASSY, GRILLE HOUSING & RADIATOR LH

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-103341

WASHER, .406 X .812 X .051 PLN

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8 PLN TYPE 5

$

$

Currently unavailable

4

Cub Cadet IH-132256-C2

SUPPORT ASSY, GRILLE HOUSING & RADIATOR RH

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-103341

WASHER, .406 X .812 X .051 PLN

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8 PLN TYPE 5

$

$

Currently unavailable

5

Cub Cadet IH-132271-C1

PANEL ASSY, GRILLE SIDE LH

$

$

Currently unavailable

Cub Cadet IH-161892

SCREW, 10-12 X 3/8 CR-REC-PAN-HD TAP

$

$

Currently unavailable

Cub Cadet IH-593749-R1

SCREW, NO. 10 X 1/2 H/WHD TAP

$

$

Currently unavailable

Cub Cadet IH-26976-R1

SCREW, 1/4 X 3/8 H/WHD TAP

$

$

Not available

6

Cub Cadet IH-132272-C1

PANEL ASSY, GRILLE SIDE RH

$

$

Currently unavailable

Cub Cadet IH-161892

SCREW, 10-12 X 3/6 CR-REC-PAN-HD TAP

$

$

Currently unavailable

Cub Cadet IH-593749

SCREW, 10-24 X 1/2 CDP HEX WASHER HD TAP

$

$

Currently unavailable

Cub Cadet IH-26976-R1

SCREW, 1/4 X 3/8 H/WHD TAP

$

$

Not available

7

Cub Cadet IH-132263-C1

SCREEN ASSY, GRILLE

$

$

Currently unavailable

8

Cub Cadet IH-132248-C1

GRILL, INSERT

$

$

Not available

9

Cub Cadet IH-132257-C1

SPRING, LATCH

$

$

Currently unavailable

10

Cub Cadet IH-132258-C1

PIN, LATCH

$

$

Not available

Cub Cadet IH-19531-R1

PIN, 1/16 X 5/8 PLN SLT-SPR

$

$

Not available

11

Cub Cadet IH-546310-R92

PEDESTAL ASSY

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-180077

BOLT, 5/16 X 3/4 TYPE 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-404827-R2

SECTION ASSY, PEDESTAL FRONT SHEET

$

$

Currently unavailable

Cub Cadet IH-180075

BOLT, 5/16 X 5/8 TYPE 5

$

$

Not available

Cub Cadet IH-180144

BOLT, 7/16 X 7/8 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120383

WASHER, 7/16 LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

13

Cub Cadet IH-404830-R2

SUPPORT, SIDE - PANEL

$

$

Not available

Cub Cadet IH-395800-R1

SCREW, 1/4-20 X 3/8 BEVEL - WASHER HD CAP

$

$

Not available

14

Cub Cadet IH-530145-R11

BRACKET ASSY, HOOD HOLD DOWN

$

$

Currently unavailable

Cub Cadet IH-363885-R91

NUT, 5/16-18 FLOATING CAGE

$

$

Not available

15

Cub Cadet IH-404585-R2

COWL, INSTRUMENT PANEL

$

$

Currently unavailable

Cub Cadet IH-404766-R1

RETAINER, 1/4-20 NUT

$

$

Not available

Cub Cadet IH-23060-R1

WASHER, 5/16 INT TOOTH LOCK

$

$

Currently unavailable
