184 - International Harvester Cub Lo-Boy Tractor Distributor (IH) Parts Diagram

Cub Lo-Boy Tractor

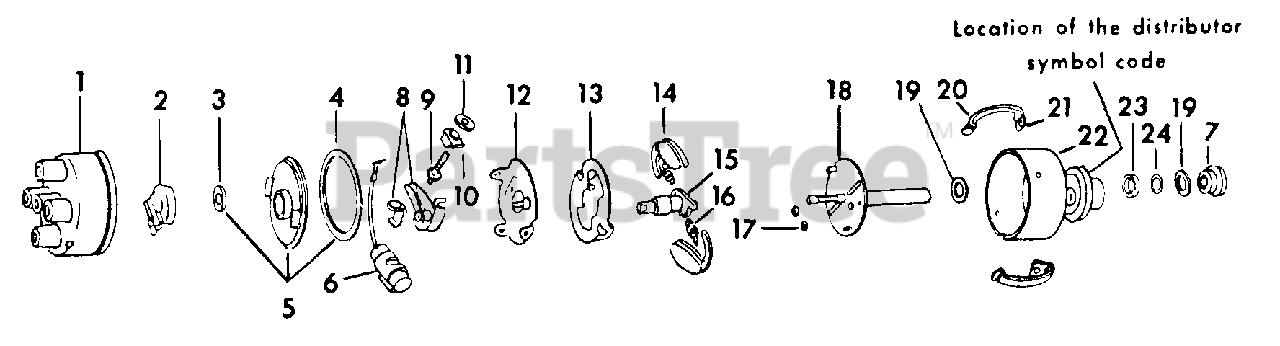

Distributor (IH) Parts Diagram

  • Title

Cub Cadet IH-353893-R91

DISTRIBUTOR ASSY

$

$

Not available

1

Cub Cadet IH-351693-R92

CAP ASSY, DISTRIBUTOR
(Superseded to IH-351693-R93)

$35.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-353896-R91

ROTOR ASSY, DISTRIBUTOR
(Superseded to IH-353896-R92)

$

$

Not available

3

Cub Cadet IH-353901-R2

FELT, BREAKER COVER SEAL

$

$

Currently unavailable

4

Cub Cadet IH-384830-R1

GASKET, BREAKER COVER

Note: REPLACES IH-352284-R2

$

$

Not available

5

Cub Cadet IH-384831-R91

COVER ASSY, BREAKER

Note: REPLACES IH-353900-R11

$

$

Currently unavailable

6

Cub Cadet IH-353903-R92

CONDENSER ASSY
(Superseded to IH-353903-R93)

$

$

Not available

Cub Cadet IH-131949

SCREW, 8-32 X 3/16 C-Z SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

7

Cub Cadet IH-353902-R1

GEAR, DISTRIBUTOR

$

$

Not available

Cub Cadet IH-354552-R1

PIN, DISTRIBUTOR GEAR

$

$

Not available

8

Cub Cadet IH-353172-R91

PACKAGE, BREAKER POINT SET
(Superseded to IH-353172-R92)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-436690

SCREW, 8-32 X 3/16 C-Z SLT-PAN-HD MACH

$

$

Not available

9

Cub Cadet IH-353907-R1

SCREW, TERMINAL

$

$

Currently unavailable

Cub Cadet IH-120622

NUT, 8-32 C-Z HEX MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

10

Cub Cadet IH-353906-R1

INSULATOR, SPRING ANCHOR TERMINAL

$

$

Not available

11

Cub Cadet IH-251538-R1

WASHER, TERMINAL INSULATING

$

$

Currently unavailable

12

Cub Cadet IH-352277-R11

PLATE ASSY, BREAKER

$

$

Not available

Cub Cadet IH-132756

SCREW, 8-32 X 7/16 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

13

Cub Cadet IH-352301-R1

GUARD, GOVERNOR WEIGHT

$

$

Currently unavailable

Cub Cadet IH-131954

SCREW, 8-32 X 1/4 C-Z SLT-FIL-HD MACH

$

$

Not available

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

14

Cub Cadet IH-353915-R91

ARM ASSY, WEIGHT

$

$

Currently unavailable

15

Cub Cadet IH-355724-R91

CAM W/FELT, IH-355460-R1 ASSY

Note: WILL WORK FOR IH-353908-R91

$

$

Currently unavailable

16

Cub Cadet IH-358107-R91

PACKAGE, GOVERNOR SPRING

Note: WILL WORK FOR IH-353919-R1

$

$

Currently unavailable

17

Cub Cadet IH-352293-R1

SPACER, WEIGHT ARM

$

$

Currently unavailable

18

Cub Cadet IH-353926-R91

SHAFT ASSY, DISTRIBUTOR

$

$

Currently unavailable

19

Cub Cadet IH-352298-R1

WASHER, DISTRIBUTOR THRUST

$

$

Currently unavailable

20

Cub Cadet IH-353894-R1

SPRING, DISTRIBUTOR CAP

$

$

Currently unavailable

21

Cub Cadet IH-353895-R1

SUPPORT, DISTRIBUTOR CAP SPRING

$

$

Currently unavailable

Cub Cadet IH-132756

SCREW, 8-32 X 7/16 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

22

Cub Cadet IH-353898-R11

HOUSING, DISTRIBUTOR W/SEAL

$

$

Currently unavailable

Cub Cadet IH-125947

PLUG, 1/8 C-Z SLT-HDLS-PIPE

$

$

Currently unavailable

23

Cub Cadet IH-353899-R1

RETAINER, DISTRIBUTOR SHAFT OIL SEAL

$

$

Currently unavailable

24

Cub Cadet IH-252739-R1

O-RING, 1/2 X 11/16 X 3/32

$

$

Not available

Cub Cadet IH-355460-R1

FELT, CAM OIL HOLE

Note: USED W/CAM IH-355724-R91

$

$

Currently unavailable

Cub Cadet IH-352302-R1

FELT, CAM OIL HOLE

Note: USED W/CAM IH-353908-R91

$

$

Currently unavailable

Cub Cadet IH-21394D

WASHER, STATIONARY POINT AND TERMINAL

$

$

Not available

Cub Cadet IH-373577-R91

PACKAGE, DISTRIBUTOR SHAFT BUSHING

Note: CONSISTS OF THE FOLLOWING ITEM

$

$

Currently unavailable

Cub Cadet IH-353921-R1

BUSHING

$

$

Currently unavailable
