184 - International Harvester Cub Lo-Boy Tractor Alternator Generator W/Integral Solid State Volt. Regulator Parts Diagram

Cub Lo-Boy Tractor

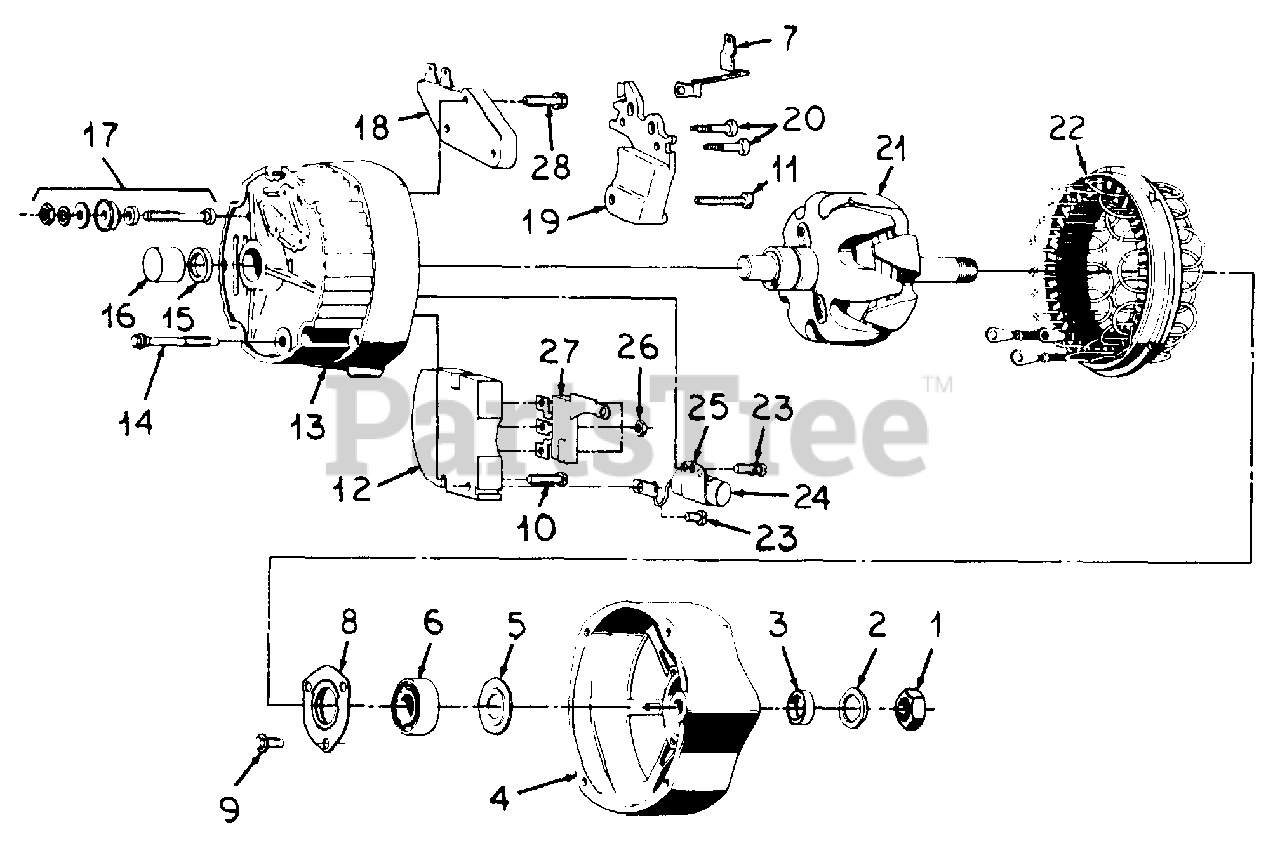

Alternator Generator W/Integral Solid State Volt. Regulator Parts Diagram

  • Title

Cub Cadet IH-1103171

ALTERNATOR GENERATOR ASSY -42 AMPERE

Note: REPLACES IH-1102920

$

$

Currently unavailable

1

Cub Cadet IH-1915172

NUT, DRIVE SHAFT END

$

$

Currently unavailable

2

Cub Cadet IH-1941978

WASHER, DRIVE END SHAFT LOCK

$

$

Not available

3

Cub Cadet IH-1959991

COLLAR, DRIVE END SHAFT -OUTSIDE-7/8 IN. OD

Note: USE W/FRAME IH-1970525

$

$

Not available

Cub Cadet IH-1976138

COLLAR, DRIVE END SHAFT -OUTSIDE-1 IN. OD

Note: REPLACES IH-1959991

$

$

Currently unavailable

4

Cub Cadet IH-1976808

PACKAGE, DRIVE END FRAME

Note: REPLACES IH-1970525 & IH-1976137

$

$

Currently unavailable

FRAME

$

$

Not available

BOLT

$

$

Not available

SLEEVE

$

$

Not available

INSTRUCTIONS

$

$

Not available

5

Cub Cadet IH-800832

WASHER, DRIVE END GREASE SLINGER

Note: USED ONLY W/FRAME, IH-1970525

$

$

Currently unavailable

6

Cub Cadet IH-908019

BEARING, DRIVE END BALL

$

$

Currently unavailable

7

Cub Cadet IH-1894568

TERMINAL, RELAY

$

$

Currently unavailable

8

Cub Cadet IH-1971993

PLATE, DRIVE END BALL BEARING RETAINER

$

$

Currently unavailable

9

Cub Cadet IH-1965104

SCREW, BEARING RETAINER PLATE ATTACHING

$

$

Currently unavailable

10

Cub Cadet IH-1876668

SCREW, RECTIFIER SUPPORT

$

$

Currently unavailable

11

Cub Cadet IH-1974020

SCREW, BRUSH HOLDER PIVOT

$

$

Currently unavailable

12

Cub Cadet IH-1891055

SUPPORT, RECTIFIER

$

$

Currently unavailable

13

Cub Cadet IH-1975718

PACKAGE, SLIP RING END FRAME

Note: REPLACES IH-1894570

$

$

Currently unavailable

FRAME

$

$

Not available

BOLT

$

$

Not available

BEARING

$

$

Not available

INSTRUCTIONS

$

$

Not available

14

Cub Cadet IH-1956975

SCREW, FRAME ATTACHING

$

$

Currently unavailable

15

Cub Cadet IH-1961323

SEAL, SLIP RING END ROLLER BEARING

$

$

Currently unavailable

16

Cub Cadet IH-9436831

BEARING, SLIP RING END ROLLER

$

$

Currently unavailable

17

Cub Cadet IH-1975471

PACKAGE, BATTERY OUTPUT TERMINAL

Note: REPLACES IH-1846900

$

$

Currently unavailable

18

Cub Cadet IH-1116392

REGULATOR, VOLTAGE

Note: REPLACES IH-1116387

$

$

Currently unavailable

18

Cub Cadet IH-1116387H

REGULATOR, VOLTAGE

Note: USED W/ALTERNATOR IH-1103171

$

$

Currently unavailable

19

Cub Cadet IH-1894559

HOLDER ASSY, BRUSH AND BRUSH

$

$

Currently unavailable

20

Cub Cadet IH-1876681

SCREW ASSY, BRUSH HOLDER INSULATED

$

$

Currently unavailable

21

Cub Cadet IH-1891598

ROTOR ASSY

$

$

Currently unavailable

22

Cub Cadet IH-1894594

STATOR ASSY

$

$

Currently unavailable

23

Cub Cadet IH-1851612

SCREW W/LOCK WASHER CAPACITOR BRACKET AND LEAD ATTACHING

$

$

Currently unavailable

24

Cub Cadet IH-1971411

CAPACITOR ASSY

$

$

Currently unavailable

25

Cub Cadet IH-1869573

BRACKET, CAPACITOR MOUNTING

$

$

Currently unavailable

26

Cub Cadet IH-453996

NUT, NO. 8 CDP HEX. MACH SCREW TYPE 1
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

27

Cub Cadet IH-1971528

RECTIFIER, DIODE TRIO

$

$

Currently unavailable

28

Cub Cadet IH-1894586

SCREW ASSY, BRUSH HOLDER GROUND

$

$

Currently unavailable

Cub Cadet IH-1102920

ALTERNATOR-GENERATOR ASSY - 42 AMPERE

$

$

Currently unavailable

Cub Cadet IH-1103171

ALTERNATOR-GENERATOR - 42 AMPERE METRIC

$

$

Currently unavailable
