184 - International Harvester Cub Lo-Boy Tractor Air Cleaner & Connections Parts Diagram

Cub Lo-Boy Tractor

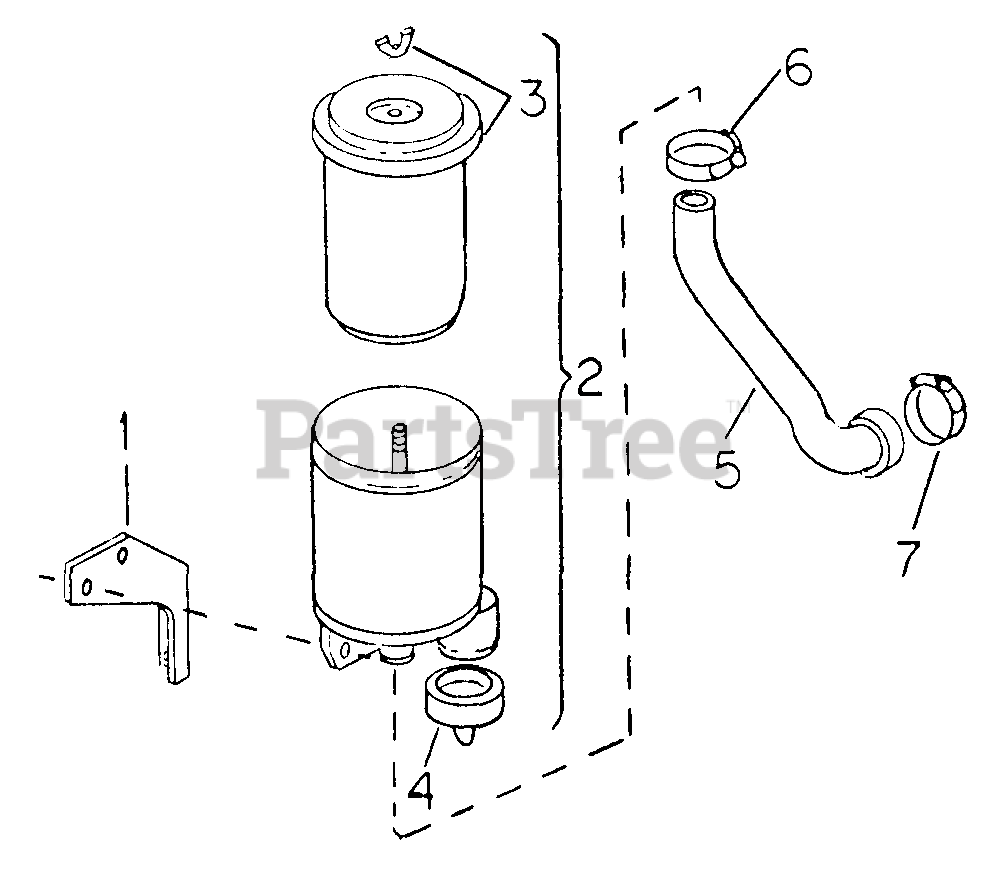

Air Cleaner & Connections Parts Diagram

  • Title

1

Cub Cadet IH-404636-R2

BRACKET ASSY, AIR CLEANER

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

2

Cub Cadet IH-545828-R91

CLEANER ASSY, 5-1/4 IN DIAMETER DRY TYPE AIR

Note: COMPOSED OF REF NOS 3 & 4

$

$

Currently unavailable

Cub Cadet IH-179813

SCREW 5/16-18 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

3

Cub Cadet IH-547159-R1

ELEMENT W/WING NUT, AIR CLEANER

$116.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-544977-R1

VALVE, RUBBER UNLOADER

$

$

Not available

5

Cub Cadet IH-106411-C1

HOSE, AIR CLEANER

$

$

Not available

6

Cub Cadet IH-35698D

CLAMP, AIR CLEANER HOSE AIR - CLEANER END

$

$

Currently unavailable

7

Cub Cadet IH-39135H

CLAMP, AIR CLEANER HOSE - CARBURETOR END

$

$

Currently unavailable
