184-427-134 - MTD Walk-Behind Mower, Electric (1994) (Home Depot) General Assembly Parts Diagram

Walk-Behind Mower, Electric

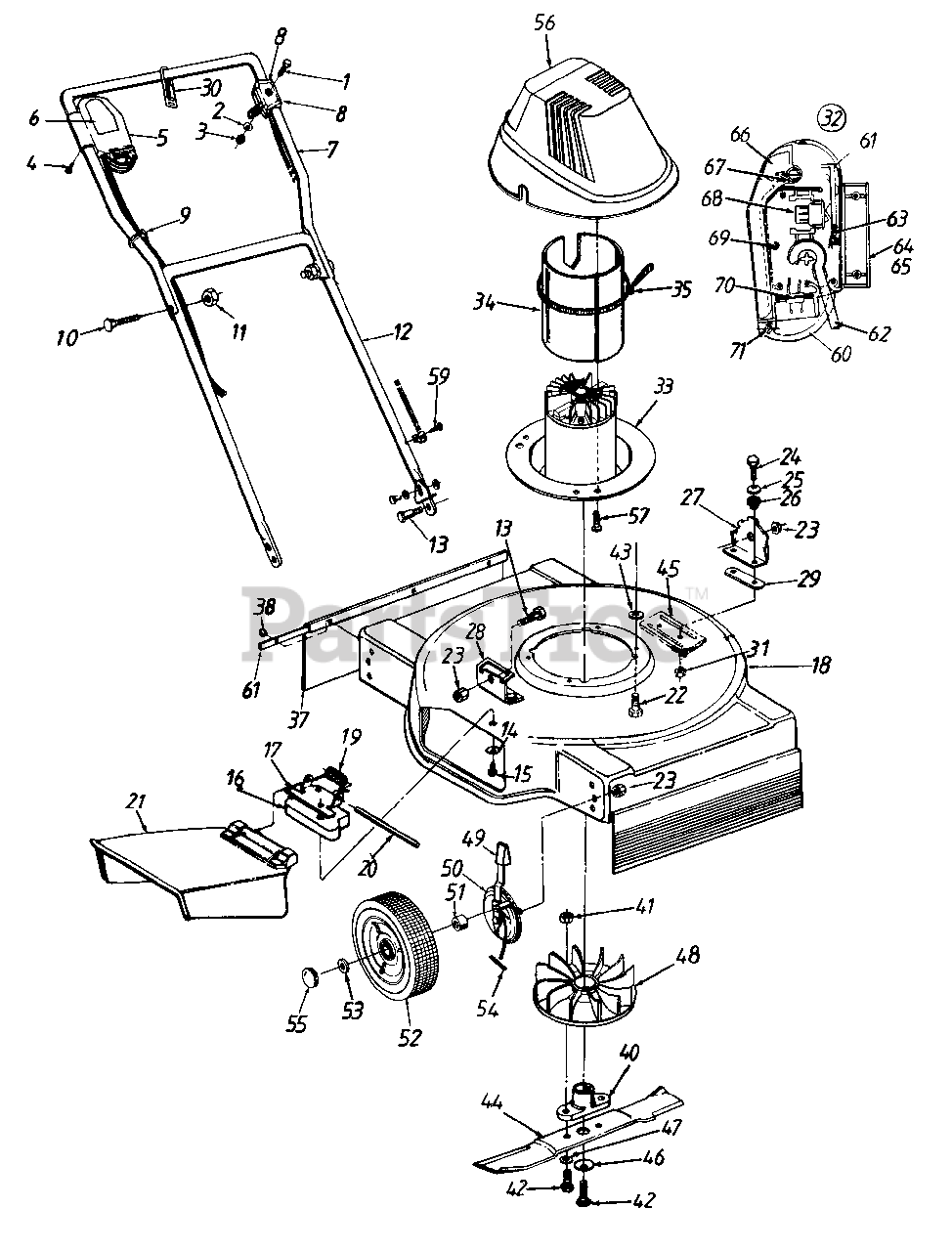

General Assembly Parts Diagram

  • Title

1

MTD 710-0606

Hex Bolt 1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 10

0

2

MTD 736-0142

Fl-Wash .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

3

MTD 712-0442

Acorn Nut 1/4-20 Thd.

$6.99

$

In Stock, only 4 left!

0

4

MTD 710-1150

Self-Tap Scr. #7 x 1" Lg.

$

$

Not available

5

UNKNOWN

$

$

Not available

6

MTD 777-9380

Label - Switch Box

$

$

Not available

7

MTD 749-0900

Upper Handle

$

$

Not available

8

MTD 720-0250

Control Flip Knob

$

$

Not available

9

MTD 726-0303

Cable Tie

$

$

Not available

10

MTD 710-0671

Curved Hd. Bolt 5/16-18 x 7/8" Lg.

$

$

Not available

11

MTD 712-0437

Hex L-Nut 5/16-18 Thd.

$

$

Not available

12

MTD 649-2220

Lower Handle

$

$

Not available

13

MTD 738-0859

Shld. Bolt 3/8-16 Thd.

$

$

Not available

14

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-1108

Self-Tap Scr. 1/4-20 x 1.12" Lg.

$

$

Not available

16

MTD 731-1266

Spacer

$

$

Not available

17

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

18

MTD 682-0105

19" Deck Ass'y.

Variations

MTD 682-0105-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0105-0674

No Longer Available DECK ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

19

MTD 732-0593

Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

20

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

Note: (Incl. Ref. 17, 19, 20)

$72.99

$

In Stock, Qty 5

0

22

MTD 710-0654A

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0438

Hex Sems Nut 3/8-16 Thd.

$

$

Not available

24

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, Qty 14

0

25

MTD 736-3090

Fl-Wash..26" I.D. x .72" O.D.

$6.99

$

In Stock, Qty 11

0

26

MTD 731-1219

Insulator Shield

$

$

Not available

27

MTD 782-3013

Handle Brkt.- L.H.

$

$

Not available

28

MTD 782-3012

Handle Brkt.- R.H.

$

$

Not available

29

MTD 721-0278

Insulator Strap

$

$

Not available

30

MTD 725-1590

Cord Restraint

$

$

Not available

31

MTD 712-0324

Hex Nylon Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

32

MTD 624-0032

Cord & Switch Ass'y. Comp.

$

$

Not available

33

MTD 818-60013

Motor & Switch Ass'y. Comp.

$

$

Not available

34

MTD 721-0311

Insulator Motor Hsg.

$

$

Not available

35

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

37

MTD 720-0248

Flap - Rear & Front

$

$

Not available

38

MTD 728-0143

Pop Rivet .188" Dia.
(Superseded to 928-0180)

$

$

Not available

40

MTD 748-0343

Blade Adapter

$

$

Not available

41

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

42

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

43

MTD 731-1175

Spacer

$

$

Not available

44

MTD 742-0519

19" Blade
(Superseded to 942-0619)

$

$

Not available

45

MTD 782-5001

Deck Reinforcement Plate

$

$

Currently unavailable

46

MTD 736-0452

Bell-Wash..4" I.D. x 1.14" O.O.

$4.99

$

In Stock, Qty 5

0

47

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

48

MTD 731-1250

Motor Fan

$

$

Not available

49

MTD 720-0239

Knob

$

$

Not available

50

MTD 682-0009

Height Adj. Ass'y. (RF/LR)

$

$

Not available

MTD 682-0010

Weight Adj. Ass'y. (LF/RR)

$

$

Not available

51

MTD 750-0796

Plastic Wheel Spacer

$

$

Not available

52

MTD 734-1797

7" Wheel

$

$

Not available

53

MTD 736-3068

Fl-Wash, .531" I.D. x .875" O.D.

$6.99

$

In Stock, only 2 left!

0

54

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

55

MTD 731-0251

Hub Cap

$

$

Currently unavailable

56

MTD 731-1263

Motor Cover

$

$

Not available

57

MTD 710-1128

Screw #10 x .75" Lg.

$

$

Not available

59

MTD 710-1167

Self-Tap AB-Tap Scr. #10-16 x .5" Lg.

$

$

Not available

60

MTD 731-1211

Retainer Plug

$

$

Not available

61

MTD 731-1198

Latch

$

$

Not available

62

MTD 624-0053

Cord Ass'y.

Note: (Incl. Ref. #70)

$

$

Not available

63

MTD 732-0681

Spring Latch

$

$

Not available

64

MTD 731-1208

Housing - Upper Half

$

$

Not available

65

MTD 731-1209

Housing - Lower Half

Note: (Not Shown)

$

$

Not available

66

MTD 731-1210

Handle - Switch Actuator

$

$

Not available

67

MTD 732-0679

Spring - Switch Handle

$

$

Not available

68

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

69

MTD 710-1147

Screw #6-32 x .5" Lg.

$

$

Not available

70

MTD 729-0304

Plug Ass'y.
(Superseded to 929-0304)

$

$

Not available

71

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

?72

MTD 710-1251

Hex Bolt 3/8-24 x 2,5" Lg.

$

$

Not available
