184-107-401 - Yard-Man Walk-Behind Mower, Electric (1994) Electric Mower Parts Diagram

Walk-Behind Mower, Electric

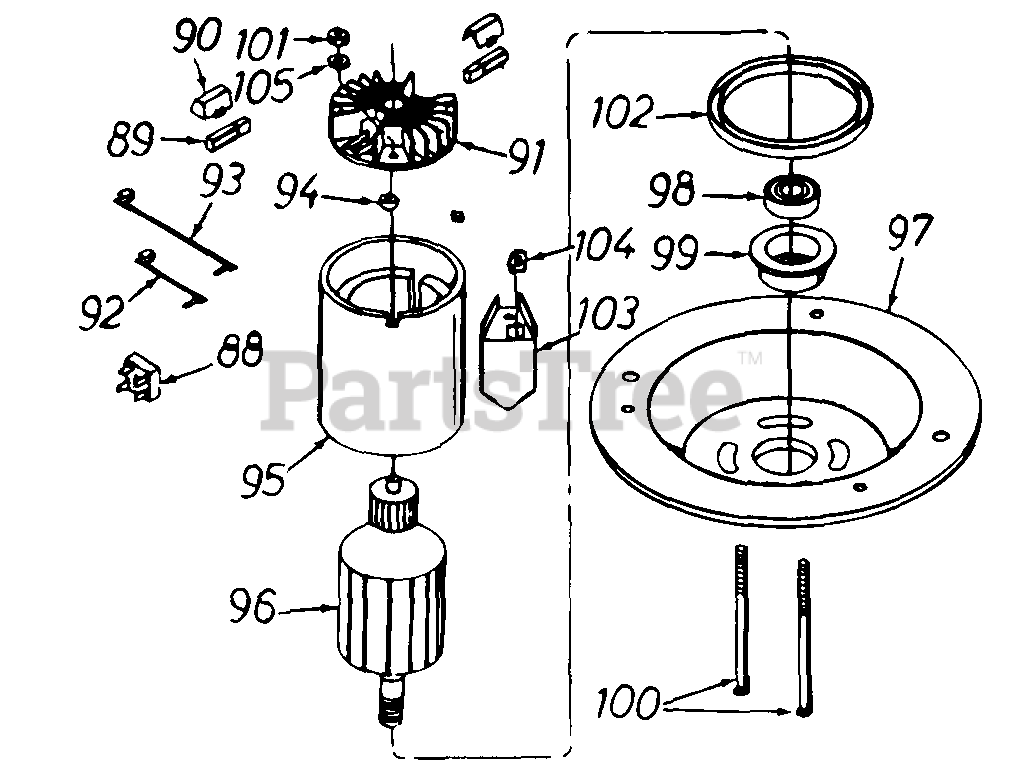

Electric Mower Parts Diagram

  • Title

88

MTD 725-1602

Rectifier

$

$

Currently unavailable

89

MTD 624-0031

Brush and Liner Ass'y.

$

$

Not available

90

MTD 724-0200

Brush Holder Cap
(Superseded to 924-0200)

$

$

Not available

91

MTD 724-0201

End Shield Brushes

$

$

Not available

92

MTD 729-0328

Red Brush Lead

$

$

Not available

93

MTD 729-0329

Blue Brush Lead

$

$

Not available

94

MTD 741-0875

Needle Bearing

$

$

Not available

95

MTD 624-0028

Housing Magnet Ass'y.

$

$

Currently unavailable

96

MTD 624-0029

Armature Ass'y.

$

$

Currently unavailable

97

MTD 724-0194

Motor End Plate

$

$

Currently unavailable

98

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

99

MTD 748-0348

Bearing Adapter

$

$

Not available

100

MTD 710-1176

Carriage Bolt

$

$

Not available

101

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

102

MTD 721-0306

Motor Hsg. Insulator

$

$

Not available

103

MTD 724-0202

Cover - Rectifier

$

$

Not available

104

MTD 731-1207

Strain Relief Bushing

$

$

Not available

105

MTD 736-3090

Fl-Wash .26" I.D. x .72" O.D.

$6.99

$

In Stock, Qty 11

0
