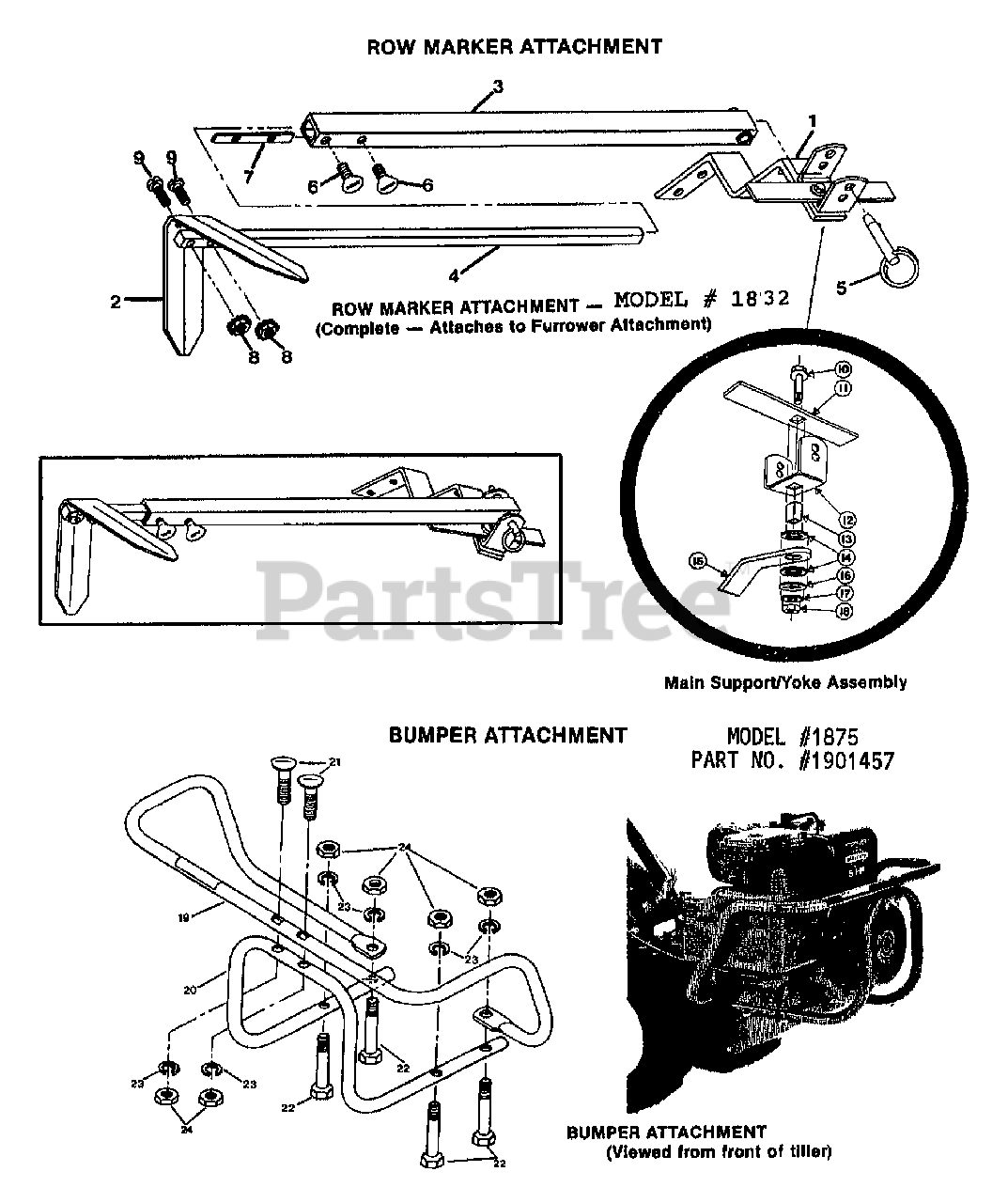

1832 - Troy-Bilt Row Marker Attachment ATTACHMENTS Parts Diagram

Row Marker Attachment

ATTACHMENTS Parts Diagram

  • Title

1

Troy-Bilt 1569

ASSM-MAIN SUPT PAINT

$

$

Currently unavailable

2

MTD 1594

MARKER-ROW MARKER

$

$

Not available

3

MTD 1597

MARKER ARM-WELD PAINT

$

$

Not available

4

MTD 1570

ASSM-MARKER ARM EXT-PAINT

$

$

Not available

5

Troy-Bilt 9347

PIN # COTTERLESS HITCH ZP
(Superseded to GW-9347)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

SCR-THUMB 1/4-20 X .75 ZP

$

$

Currently unavailable

7

MTD 1596

BAR-NUT

$

$

Not available

8

MTD 9828

NUT W/LKWASHER 10-24 ZP

$

$

Not available

9

Troy-Bilt 9721

SCR-RH M10-24X1.0 NC-2A

$

$

Currently unavailable

MTD 1837

HDWE PKG-ROW MARKER

$

$

Not available

Troy-Bilt 1851

H/F & RWMKR E/P/JR (2 BOXES)

$

$

Currently unavailable

Troy-Bilt 1832

ROW MARKER II

$

$

Currently unavailable

10

Troy-Bilt 90047

SCR-HFLK 3/8-16X1.50

$

$

Currently unavailable

11

MTD 1593

BAR-STOP

$

$

Not available

12

MTD 1592

YOKE-ROW MARKER

$

$

Not available

13

MTD 1591

TUBING-SQ .5 X .907

$

$

Not available

14

Troy-Bilt 1590

WASHER-.375X.51X.125
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

SUPT-MAIN ROW MARKER

$

$

Not available

16

MTD 1589

WASHER-SQ HOLE 1.38X5SQX.12

$

$

Not available

17

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

18

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

19

Troy-Bilt 1901456

BUMPER TOP SECTION

$

$

Currently unavailable

20

Troy-Bilt 20666

BUMPER-BOTTOM SECT.PNT

$

$

Currently unavailable

21

Troy-Bilt 9795

BOLT-CH 5/16-18 X 2 ZP
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 9557

SCR-HH 5/16-18X2.5

$

$

Currently unavailable

23

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

24

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

Troy-Bilt 1874

KIT-HDW PONY BUMPER

$

$

Currently unavailable

Troy-Bilt 1901457

BUMPER-PONY

$

$

Currently unavailable
