18318 R - Troy-Bilt Front PTO Attachment (SN: 0100101 - 0199999) FRONT PTO ATTACHMENT Parts Diagram

Front PTO Attachment

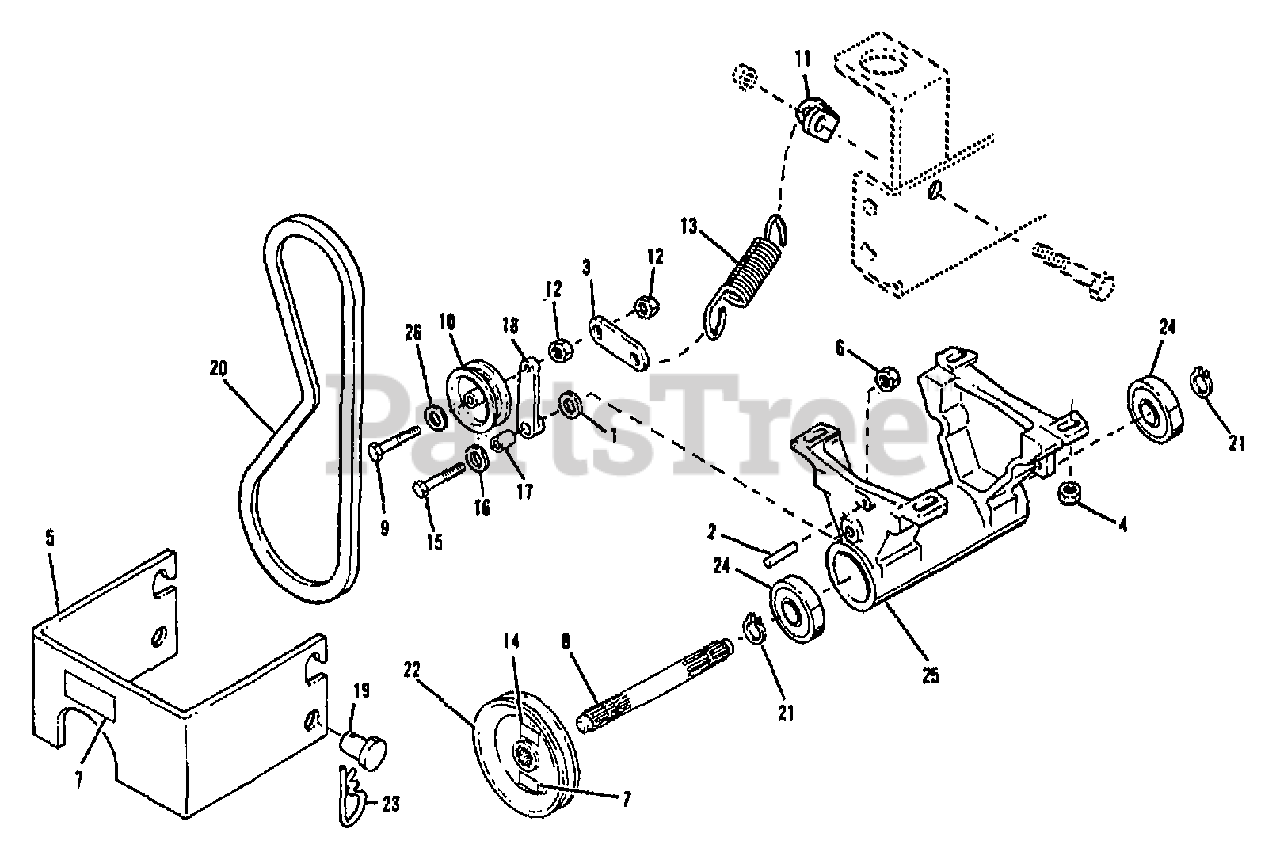

FRONT PTO ATTACHMENT Parts Diagram

  • Title
1

MTD 1803327

WASHER-.88X.343X.1345

$

$

Not available

2

Troy-Bilt 1703822

PIN-DRIVE .25X1.5

$

$

Currently unavailable

$

$

Currently unavailable

4

MTD 1185984

NUT-HF/LK 3/8-16

$

$

Not available

5

MTD 1739395010

COVER-PTO

$

$

Not available

6

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1742383

DECAL-CAUTION

$

$

Currently unavailable

8

Troy-Bilt 1738549

SHAFT-PTO

$

$

Currently unavailable

9

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1735398

IDLER-FLAT

$

$

Currently unavailable

$

$

Currently unavailable

12

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

13

Troy-Bilt 1747034

SPRING-EXT

$

$

Currently unavailable

14

Troy-Bilt 1757310

DECAL-INST

$

$

Currently unavailable

15

MTD 1111606

SCR-HH 5/16-18X2.00

$

$

Not available

16

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

20

MTD 1741578

BELT-V

$

$

Not available

21

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

22

$

$

Currently unavailable

23

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

24

Troy-Bilt 1725087

BEARING-BALL

$40.99

$

Usually ships in 3-6 days

0

$

$

Currently unavailable

26

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

26

Troy-Bilt 1754423

PAINT-RED SPRAYCAN POWDER

$

$

Currently unavailable
