18311 R - Troy-Bilt 38" Snow Thrower Attachment (SN: 0100101 - 0199999) GEAR BOX ASSEMBLY Parts Diagram

38" Snow Thrower Attachment

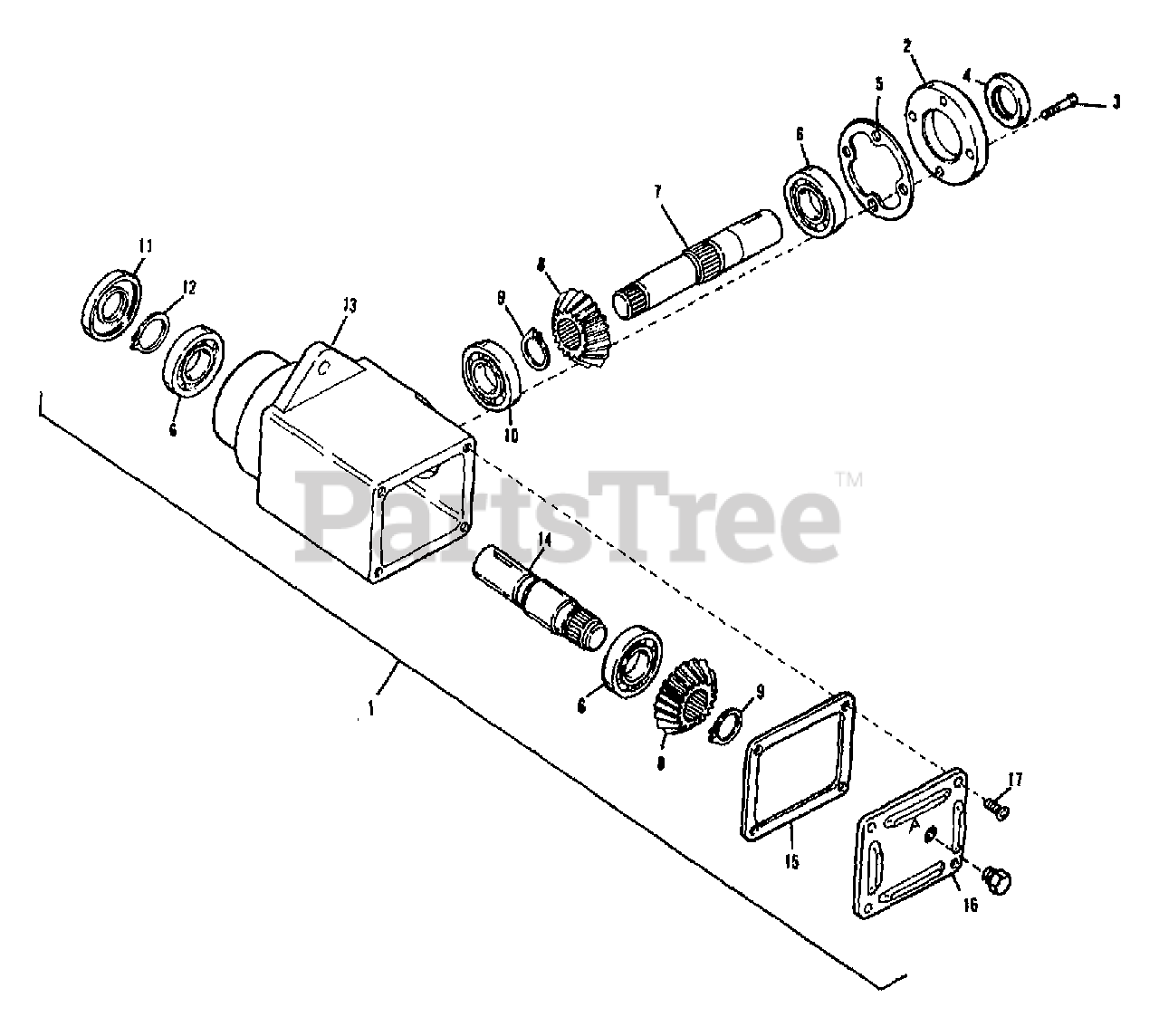

GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 794219

HEAD ASSY

$

$

Currently unavailable

2

Troy-Bilt 786029

CAP & SEAL

$

$

Currently unavailable

3

Troy-Bilt 792026

SCREW

$

$

Currently unavailable

4

MTD 788031

OIL SEAL
(Superseded to TC-788031)

$10.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 788030

GASKET

$

$

Currently unavailable

6

MTD 780034

BALL BEARING
(Superseded to TC-780034)

$48.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 776125

INPUT SHAFT

$

$

Currently unavailable

8

MTD 778046

MITER GEAR
(Superseded to TC-778046)

$44.99

$

Usually ships in 3-12 days

0

9

MTD 788018

RET RING
(Superseded to TC-788018)

$4.49

$

Usually ships in 3-12 days

0

10

MTD 780024

BALL BEARING
(Superseded to TC-780024)

$48.99

$

Usually ships in 3-12 days

0

11

Troy-Bilt 788029

OIL SEAL

$

$

Currently unavailable

12

Troy-Bilt 788019

RET RING

$

$

Currently unavailable

13

Troy-Bilt 770026

HOUSING

$

$

Currently unavailable

14

Troy-Bilt 776060A

OUTPUT SHAFT

$

$

Currently unavailable

15

MTD 788028

GASKET
(Superseded to TC-788028)

$5.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 772067

COVER

$

$

Currently unavailable

17

Troy-Bilt 792025

SCREW

$

$

Currently unavailable
