18305 R - Troy-Bilt 42" Snow Blade Attachment (SN: 0100101 - 0199999) 42" SNOW BLADE ATTACHMENT Parts Diagram

42" Snow Blade Attachment

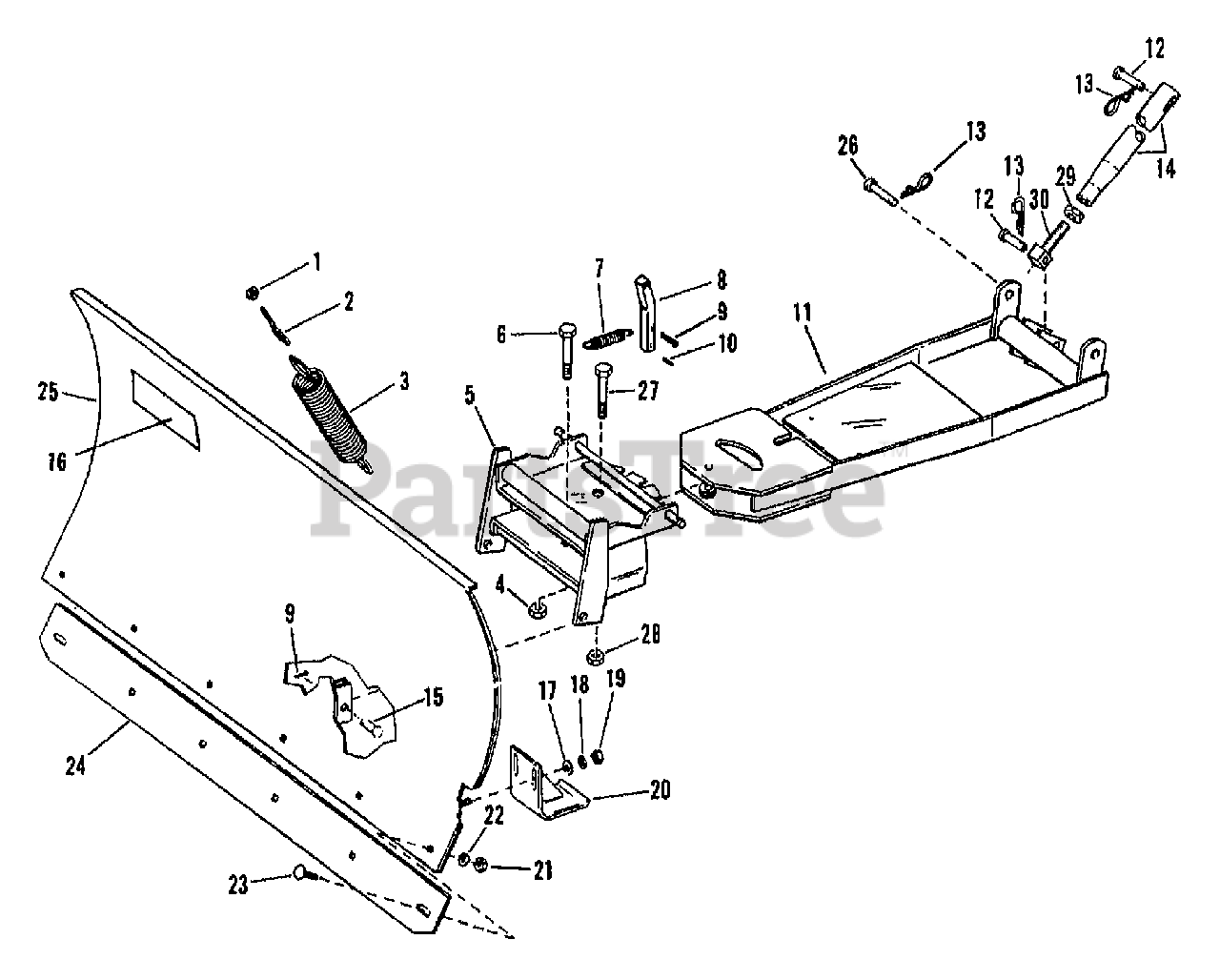

42" SNOW BLADE ATTACHMENT Parts Diagram

  • Title
1

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

2

MTD 1713077

BOLT-EYE 5/16-18X2.75 ZP

$

$

Not available

3

$

$

Currently unavailable

4

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

5

Troy-Bilt 1731053010

ASSM-PIVOT PLATE

$

$

Currently unavailable

6

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

7

MTD 1700401

SPRING

$

$

Not available

8

MTD 1714830

PIN-LATCH

$

$

Not available

9

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

10

Troy-Bilt 1704692

PIN-DRIVE .125X1.0

$

$

Not available

11

$

$

Currently unavailable

12

MTD 1708336

PIN-CLEVIS .5X2.25

$

$

Not available

13

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

14

$

$

Currently unavailable

15

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

16

Troy-Bilt 1757216

DECAL-LOGO

$

$

Currently unavailable

17

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

18

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

20

MTD 1715754010

SHOE-SKID

$

$

Not available

21

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

24

MTD 1700379010

BLADE-SCRAPER

$

$

Not available

25

$

$

Currently unavailable

26

MTD 1726311

PIN-CLEVIS .625 X 1.38

$

$

Not available

27

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

28

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

30

MTD 1729947

ADJ-LIFT LINK

$

$

Not available
