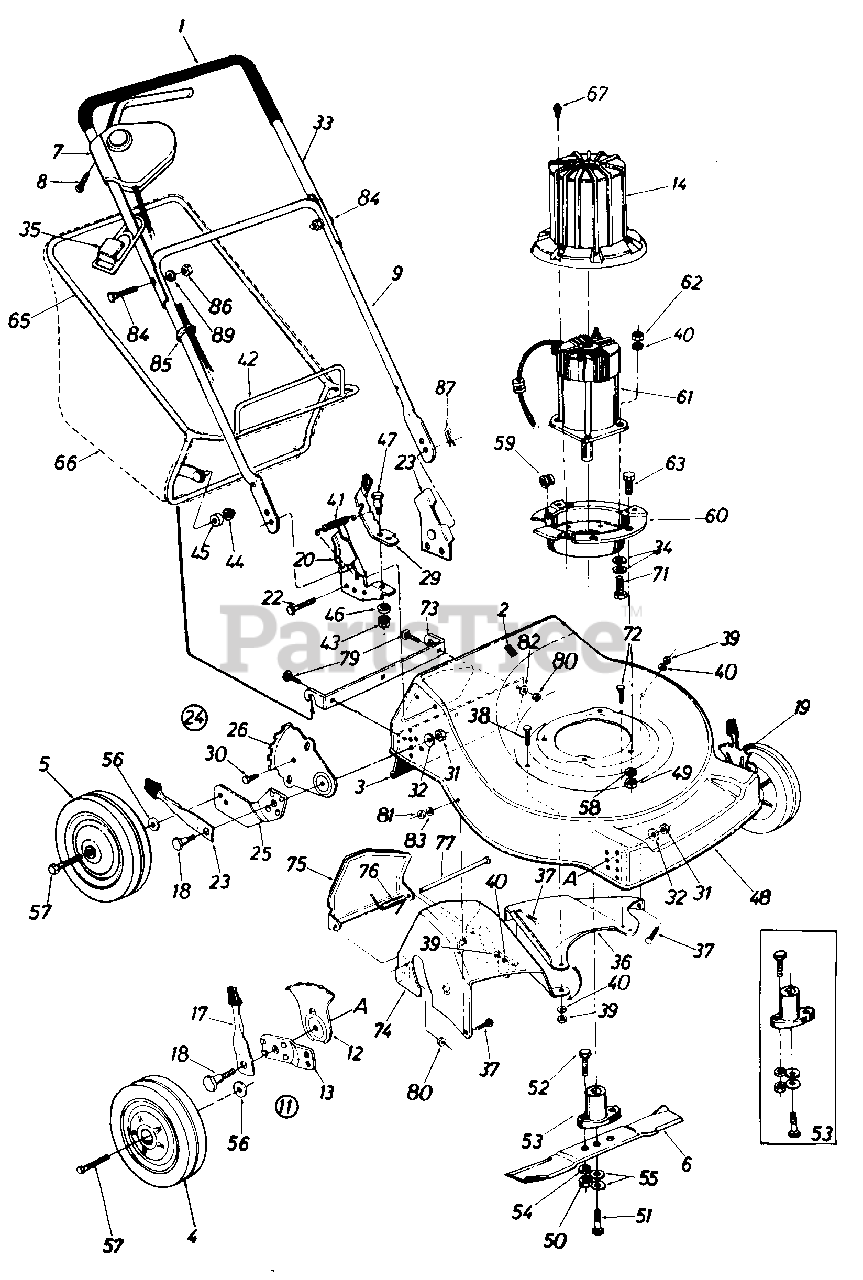

18302C - MTD Walk-Behind Mower, Electric (1986) Rotary Parts Diagram

Walk-Behind Mower, Electric

Rotary Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 731-0564

Plug

$

$

Not available

3

MTD 731-0665

Rear Flap Ass'y.

$

$

Not available

4

MTD 734-0718

Front Wheel Ass'y. Comp. 7 x 1.75

$

$

Not available

5

MTD 734-0719

Rear Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

6

MTD 742-0123

20" Blade

$

$

Not available

7

MTD 725-0898

Control w/Cord

$

$

Currently unavailable

8

MTD 710-0725

Truss Mach. AB-Tap. Scr.

$

$

Currently unavailable

9

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

11

MTD 14578

Front Height Adj Ass'y. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

12

MTD 15261

Front Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

13

MTD 15262

Front Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

14

MTD 731-0655

Shroud

$

$

Not available

17

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

18

MTD 738-0507

Shoulder Bolt .50" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

19

MTD 14579

Front Height Adj. Ass'y. L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

20

MTD 14592

Handle Brkt. Ass'y. R.H.

$

$

Currently unavailable

MTD 12297

Handle Brkt. Ass'y. L.H.

$

$

Not available

22

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" X .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

23

MTD 732-0417

Spring Lever w/Knob
(Superseded to 732-0417A)

$

$

Not available

24

MTD 16016

Rear Height Adj. Ass'y. R.H.

$

$

Not available

25

MTD 14765

Rear Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Rear Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

26

MTD 14764

Rear Index Plate
(Superseded to 14764C)

$8.49

$

Usually ships in 3-6 days

0

29

MTD 14845

Lock Lever

$

$

Not available

30

MTD 710-0892

Hex Wash. Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

31

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

32

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 749-0571

Upper Handle

$

$

Currently unavailable

34

MTD 736-0206

Fl-Wash. 3/8" I.D. x 1.0" 0. D.
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

35

MTD 725-0899

Restraint

$

$

Not available

36

MTD 13405

Rear Chute Baffle L.H.

$

$

Not available

37

MTD 710-0167

Carr. Bolt 1/4-20 x .501' Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

38

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

41

MTD 732-0357

Extension Spring
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

42

MTD 14582

Grass Catcher Lower Frame

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, Qty 18

0

45

MTD 731-0430

Plastic Roller

$

$

Not available

46

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 738-0155

Shoulder Bolt
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

48

MTD 16108

20" Deck Ass'y.

Variations

MTD 16108-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16108-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

49

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

50

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

51

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

52

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 753-0351

Blade Adapter Kit

$

$

Not available

54

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

57

MTD 738-0102

Shld. Scr. .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

58

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

59

MTD 725-0908

Cord Restraint

$

$

Not available

60

MTD 15549

Adapter Plate

$

$

Not available

61

120 V Electric Motor B&S 748001-0120-01

$

$

Not available

62

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

63

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

65

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

66

MTD 764-0171

Grass Bag
(Superseded to 964-0171B)

Note: (Without Flip Top)

$

$

Not available

MTD 764-0170

Grass Bag

Note: (With Flip Top)

$

$

Not available

67

MTD 710-0386

Hex Wash. Hd. F-Tap Scr. #10-32 x .25" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

71

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 13

0

72

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

73

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

74

MTD 14235

Rear Chute Baffle R.H.

$

$

Not available

75

MTD 13407

Chute Door

$

$

Not available

76

MTD 732-0346

Torsion Spring

$

$

Not available

77

MTD 738-0386

Hinge Pin .25" Dia. x 7.25" Lg.

$

$

Not available

79

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

81

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

82

MTD 736-0211

Fl-Wash. .281" I.D. x 1.25" O.D.

$6.99

$

In Stock, only 3 left!

0

83

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

84

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

85

MTD 726-0223

Cable Tie

$

$

Not available

86

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

87

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

89

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 19006

Grass Catcher Comp.

$

$

Not available
