18300 - Toro Electric Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) 19" ELECTRIC WHIRLWIND Parts Diagram

Electric Whirlwind Walk-Behind Mower

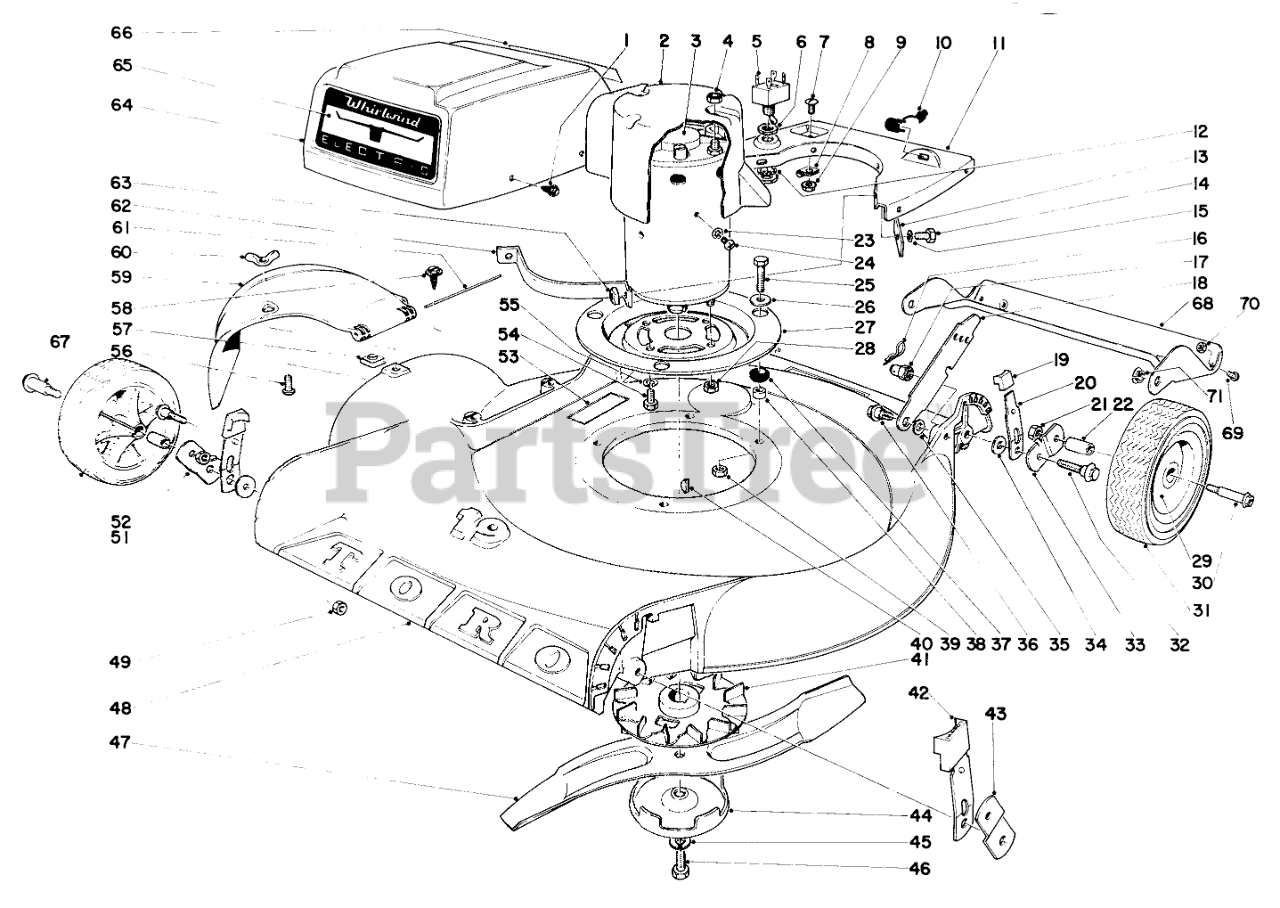

19" ELECTRIC WHIRLWIND Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 5-3844

Cover-Switch & Motor

$

$

Currently unavailable

3

Toro 5-3750

Motor

$

$

Currently unavailable

4

Toro 3290-295

Nut

$

$

Currently unavailable

5

Toro 5-3753

Switch

$

$

Currently unavailable

6

Toro 5-3846

Nut

$

$

Currently unavailable

7

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

8

Toro 2412-21

3/16 SUPPORT

$

$

Not available

9

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

10

Toro 218-402

Strain Relief

$

$

Currently unavailable

11

Toro 5-3737

Support Shroud

$

$

Currently unavailable

12

Toro 5-3845

Lockwasher

$

$

Currently unavailable

13

Toro 5-3747

Washer Support

$

$

Currently unavailable

14

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

17

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

18

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

19

Toro 5-0656

Knob

$

$

Not available

20

Toro 5-3357

Spring Arm

$

$

Not available

21

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 3-2664

Bushing

$

$

Not available

23

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

24

Toro 32104-90

Screw

$

$

Currently unavailable

25

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 5-3751

Motor Support Plate

$

$

Currently unavailable

28

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3-2563

Wheel Assy. (Incl. Ref. No. 22)

$0.99

$

In Stock, Qty 20+

0

30

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

31

Toro 4-2600

8 TIRE

$

$

Not available

32

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

In Stock, only 1 left!

0

33

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

34

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

35

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

36

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

37

Toro 237-62

GROMMET

$

$

Currently unavailable

38

Toro 5-3745

Spacer

$

$

Currently unavailable

39

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

40

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

41

Toro 5-3767

Fan & Blade Retainer

$

$

Currently unavailable

42

Toro 5-0657

ARM KNOB

$

$

Not available

43

Toro 5-4473

Pivot Arm
(Superseded to 20-3170)

$

$

Not available

44

Toro 3-6292

Scalp Cup
(Superseded to 5-9530)

$

$

Not available

45

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

46

Toro 3-5246

SPECIAL SCREW

$

$

Not available

47

Toro 5-1611

Blade

$

$

Not available

48

Toro 5-3733

Housing

$

$

Currently unavailable

49

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

51

Toro 5-0660

TIRE

$

$

Not available

52

Toro 5-4474

Pivot Arm
(Superseded to 20-3180)

$

$

Not available

53

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

54

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

55

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

56

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

57

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

58

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

59

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

60

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

61

Toro 3-2644

HINGE PIN

$

$

Not available

62

Toro 5-3734

Clamp-Shroud Support

$

$

Currently unavailable

63

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

64

Toro 5-3702

Shroud

$

$

Currently unavailable

65

Toro 5-3735

Decal-Whirlwind

$

$

Currently unavailable

66

Toro 5-4562

Decal

$

$

Currently unavailable

66

Toro 5-4713

Decal (Canadian)

$

$

Currently unavailable

67

Toro 3-2652

Bolt

$

$

Not available

68

Toro 5-4661

Rear Safety Shield
(Superseded to 4-8879)

$

$

Not available

69

Toro 3258-159

Screw-Nylon
(Superseded to 5-6450)

$

$

Not available

Toro 5-4472

Pivot Arm

Note: Not Illustrated.

$

$

Not available

Toro 4-3649

Loose Parts Kit

Note: Not Illustrated.

$

$

Currently unavailable

70

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

71

Toro 256-194

Nyliner

$

$

Currently unavailable
