1830 HV (961930073-06) - Husqvarna 30" Snow Blower (2013-08) HANDLE & CONTROLS 3 Parts Diagram

30" Snow Blower

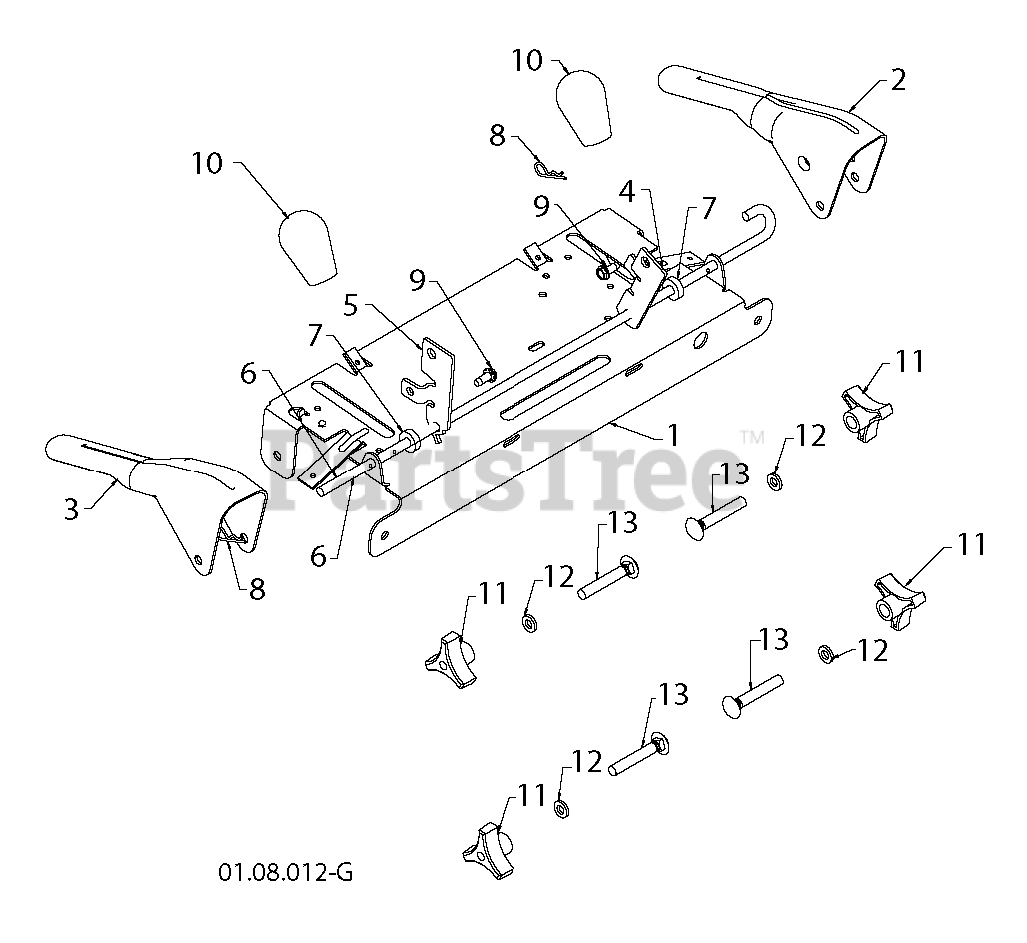

HANDLE & CONTROLS 3 Parts Diagram

  • Title
5

Husqvarna 532429098

ARM.IMPELLER.ROD.SNOW

$

$

Not available

10

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$22.99

$

In Stock, only 2 left!

0

1

Husqvarna 532415539

PANEL.CONTROL.PNT.BLACK
(Superseded to 585198802)

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

7

Husqvarna 532421613

SPACER.CONTROL.LEVER

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 580687803

LEVER.CONTROL.LH.BLACK

Note: LH

$22.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580687703

LEVER.CONTROL.RH.GREY

Note: RH

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532412677

BAIL.CONTROL.INTERLOCK

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532415546

ARM.TRACTION.ROD.YZ

$4.99

$

Usually ships in 3-10 days

0
