1830 HV (961930073-05) - Husqvarna 30" Snow Blower (2012-08) AUGER HOUSING & IMPELLER 2 Parts Diagram

30" Snow Blower

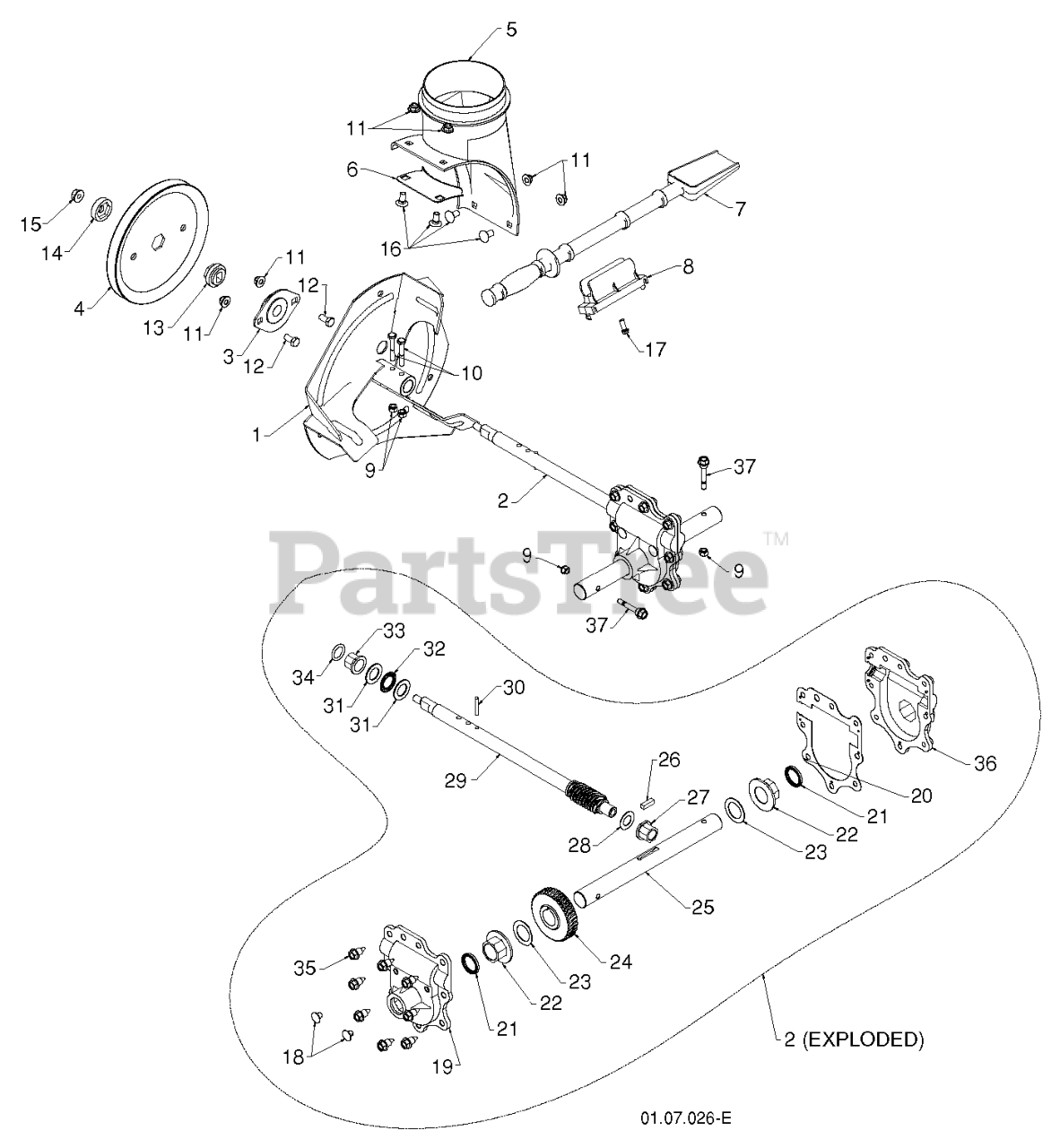

AUGER HOUSING & IMPELLER 2 Parts Diagram

  • Title

15

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

32

Husqvarna 532174684

BEARING TRUST 3/4 NTA-1220

$9.99

$

In Stock, only 2 left!

0

35

Husqvarna 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

28

Husqvarna 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532427148

GEARBOX.ASM.AUGER.D-SHAFT
(Superseded to 598831601)

$265.99

$

In Stock, only 4 left!

0

5

Husqvarna 532442438

BASE.DISCHARGE.CHUTE
(Superseded to 585056901)

$11.99

$

In Stock, Qty 17

0

20

Husqvarna 532427345

GASKET.GEAR.BOX

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532192090

BOLT.SHOULDER.SHEAR.1/4-20.
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

36

Husqvarna 532427317

GEAR.BOX.COVER.LEFT.SIDE

Note: LH

$42.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

1

Husqvarna 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

$3.99

$

In Stock, Qty 10

0

4

Husqvarna 532427146

PULLEY.FLANGE.IMPELLER

$34.99

$

In Stock, only 1 left!

0

13

Husqvarna 532427145

HUB.IMP.PULLEY.D-SHAFT

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

6

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 8

0

29

Husqvarna 532427147

SHAFT.IMPELLER.D-SHAFT

$121.99

$

In Stock, only 1 left!

0

18

Husqvarna 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

8

Husqvarna 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 3 left!

0

34

Husqvarna 532407768

O-RING

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532427302

GEAR.BOX.COVER.RIGHT.SIDE

Note: RH

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532427154

SLEEVE.IMP.PULLEY.D-SHAFT

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 9

0

27

Husqvarna 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

30

Husqvarna 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Husqvarna 532407763

WORM GEAR
(Superseded to 598831601)

$265.99

$

In Stock, only 4 left!

0

22

Husqvarna 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

3

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

25

Husqvarna 532407764

AUGER SHAFT
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532407769

BUSHING, FLANGE 3/4

$9.49

$

In Stock, only 1 left!

0
