1830 EXLT (961930078-02) - Husqvarna 30" Snow Blower (2012-06) HANDLE Parts Diagram

30" Snow Blower

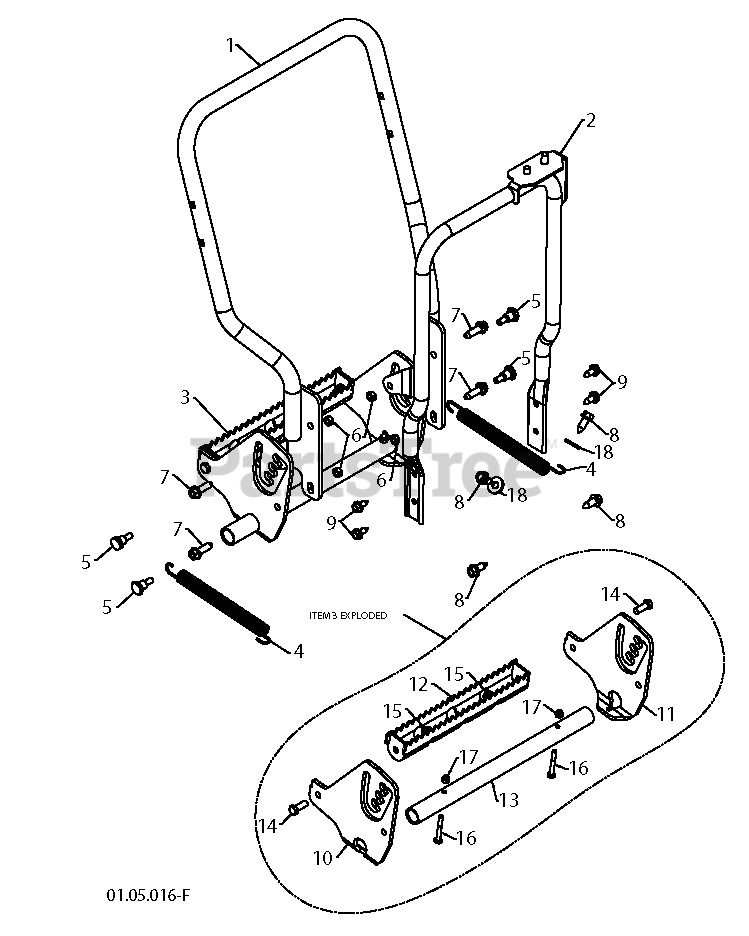

HANDLE Parts Diagram

  • Title

1

Husqvarna 580750402

HANDLE.ASM.LOWER.TRACK.GREY
(Superseded to 532444232)

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532443617

SUPPORT.WELDMENT.ROTATOR.BLACK

$

$

Not available

3

Husqvarna 580790301

PLATE.FOOT.ASM.SNOW

$

$

Not available

4

Husqvarna 532443248

SPRING.EXTENSION.TRACK.SNOW

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532443660

SHOULDERBOLT5/1618

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

8

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

10

Husqvarna 580949901

FOOT.ADJUST.PLATE.GUIDE.RH.SNO

Note: RH

$

$

Not available

11

Husqvarna 580949902

FOOT.ADJUST.PLATE.GUIDE.LH.SNO

Note: LH

$80.99

$

Usually ships in 3-10 days

0

12

Husqvarna 580950001

TRACK.FOOT.ADJ.ASM.SNOW

$61.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580950101

COVER.TRACK.SNOW

$75.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874760432

BOLT.HEX.FINISHED.1/4-20

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 3 left!

0
