1830 EXLT (961930078-02) - Husqvarna 30" Snow Blower (2012-06) DRIVE Parts Diagram

30" Snow Blower

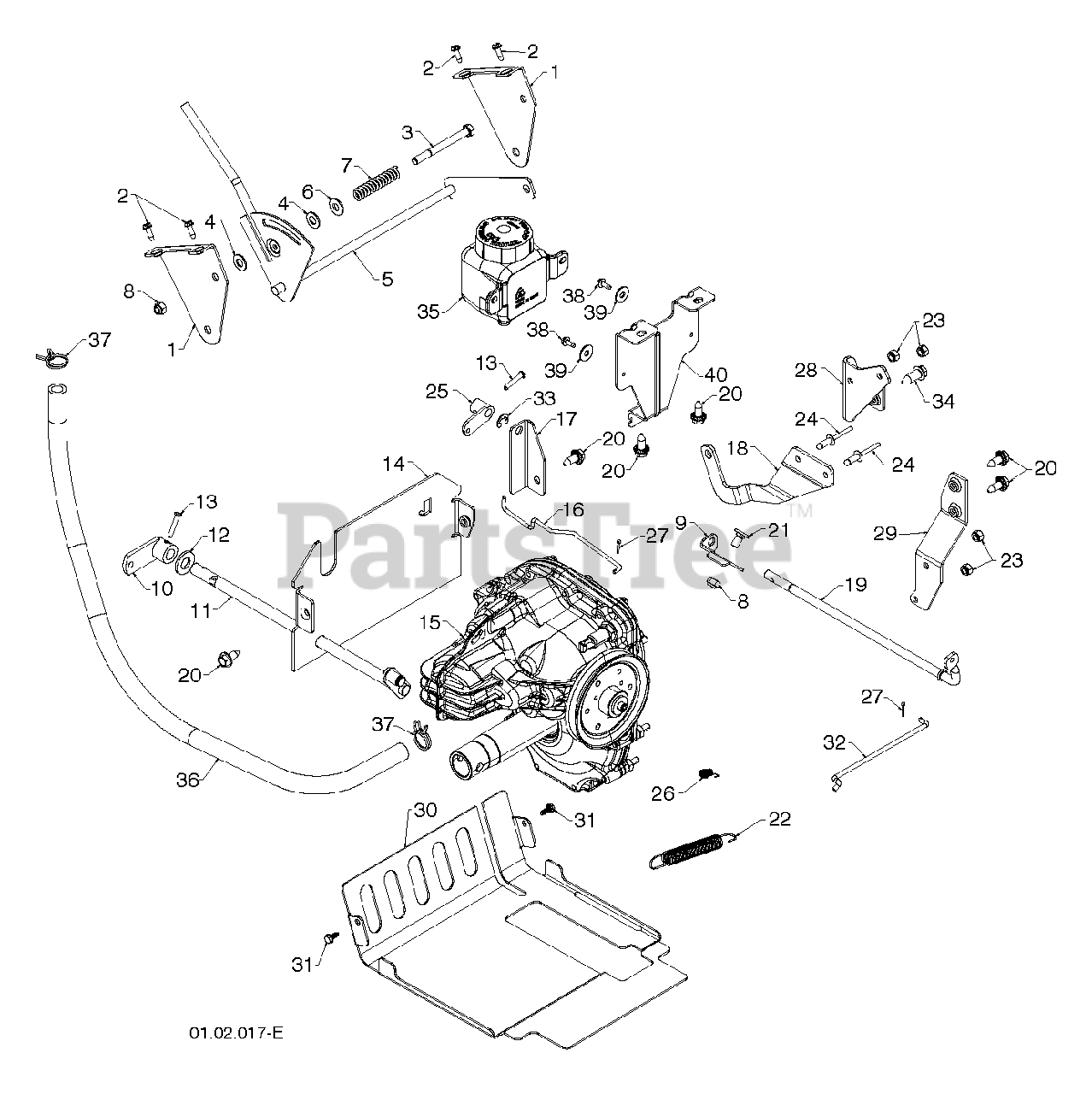

DRIVE Parts Diagram

  • Title

1

Husqvarna 532443344

BRACKET.SHIFT.HYDRO

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Husqvarna 874760552

CAPSCREW

$

$

Not available

4

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 532192001

LEVER ASSEMBLY, SPEED CONTROL

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 532192195

SRPING.FRICTION.HYDRO

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532429803

BRACKET.HYD.CLUTCH.

$

$

Not available

10

Husqvarna 532443191

ARM.CONTRL.PIN.TRACK

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

12

Husqvarna 532188906

WASHER.FLAT.1/2

$7.99

$

In Stock, only 2 left!

0

13

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 580750602

PLATE.REAR.HYDRO.TRACK.ORANGE

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532445058

TRANSMISSION

$1152.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532193256

ROD, BYPASS VALVE

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532429805

Clutch Bracket, Rear

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187787

ARM.CONTROL.HYDRO.SNOW

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532198251

SHAFT.HYD.CLUTCH

$

$

Not available

20

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 9

0

22

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 532191995

RIVET.POP.1/4X.475

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532198249

ARM.HYD.CLUTCH

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532192873

SPRING, TRACTION IDLER

$4.99

$

In Stock, only 4 left!

0

27

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532407858

BRACKET, ANTI-ROTATE
(Superseded to 532436754)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532414771

STRAP.TORQUE.HYDRO

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 580750702

COVER.TRANSMISSION.TRACK.BLACK
(Superseded to 585166802)

$

$

Not available

31

Husqvarna 532443384

SCREW1032X.500

$2.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532446293

ROD.HYDRO CLUTCH

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 574811301

TANK.EXPANSION.350ML 71328

$66.99

$

In Stock, only 1 left!

0

36

Husqvarna 580750801

HOSE.EXPANSION.TANK.TRACK

$

$

Not available

37

Husqvarna 532445298

CLAMP.SPRING.HOSE.795
(Superseded to 532445152)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532189241

SCREW.HEX.WASH.HD.TAPPING

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 580750902

BRACKET.EXPANS.TANK.TRACK.GREY

$

$

Not available
