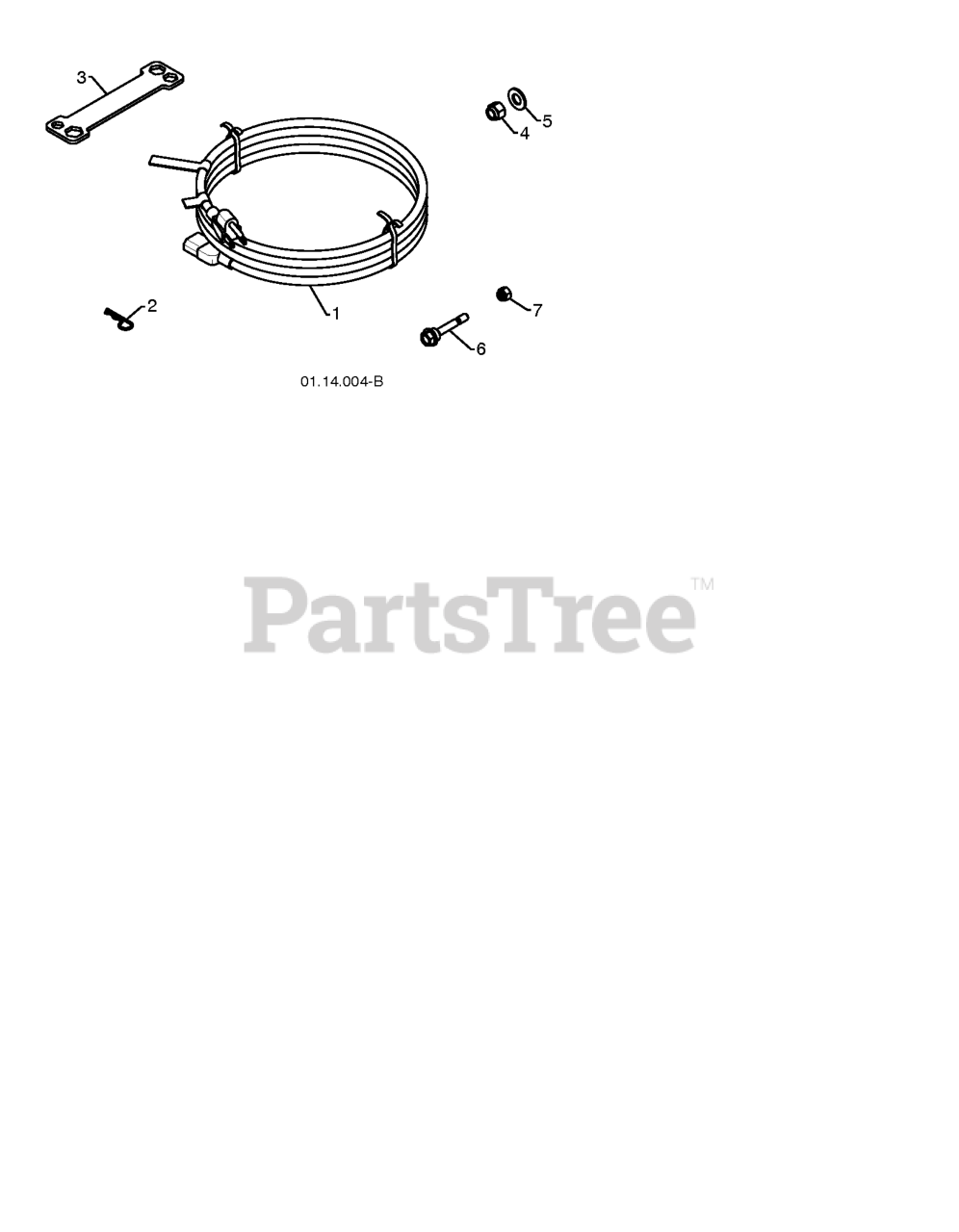

1827 SB - Husqvarna 27" Snow Blower (2009-09) ASSEMBLY Parts Diagram

27" Snow Blower

ASSEMBLY Parts Diagram

  • Title
6

Husqvarna 532192090

BOLT.SHOULDER.SHEAR.1/4-20.
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 532198563

CORD.ELECTRIC.10FT.120V.SNOW

$24.99

$

In Stock, only 3 left!

0

3

Husqvarna 532429112

WRENCH.SNOWTHROWER.ZINC.YZ

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0
