1827 EXLT (961930077-01) - Husqvarna 27" Snow Blower (2012-09) "CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

27" Snow Blower

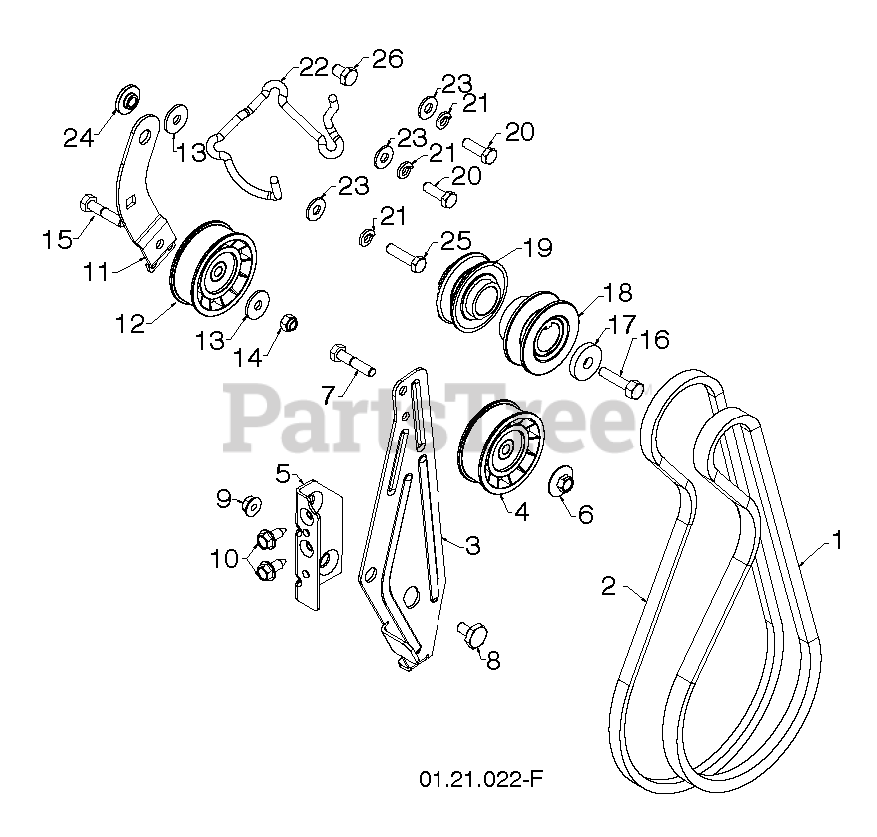

"CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

  • Title
2

Husqvarna 532428454

V-BELT.TRACTION

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532425933

PULLEY.ASM.ENG.TRACTION.1.00

$

$

Not available

16

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532429293

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532446227

PULLEY.W/SPACER.2.75

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 1 left!

0

26

Husqvarna 874760608

SCREW.3/8-16 X .750 (2 2)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

5

Husqvarna 532429270

RP BRACKET.IDLER.PIVOT
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

18

Husqvarna 532425934

PULLEY ENG IMPELLER

$34.99

$

In Stock, only 1 left!

0

25

Husqvarna 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

15

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532419888

V-BELT.IMPELLER

$60.99

$

In Stock, only 1 left!

0

22

Husqvarna 580633002

GUIDE.BELT.HYDRO.LS.SNOW

$

$

Not available

23

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 819132005

WASHER.400X1.25X5.

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187786

ARM, IDLER
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

14

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0
