18257 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) ENGINE ASSEMBLY MODEL NO. 18208 Parts Diagram

Guardian Walk-Behind Mower

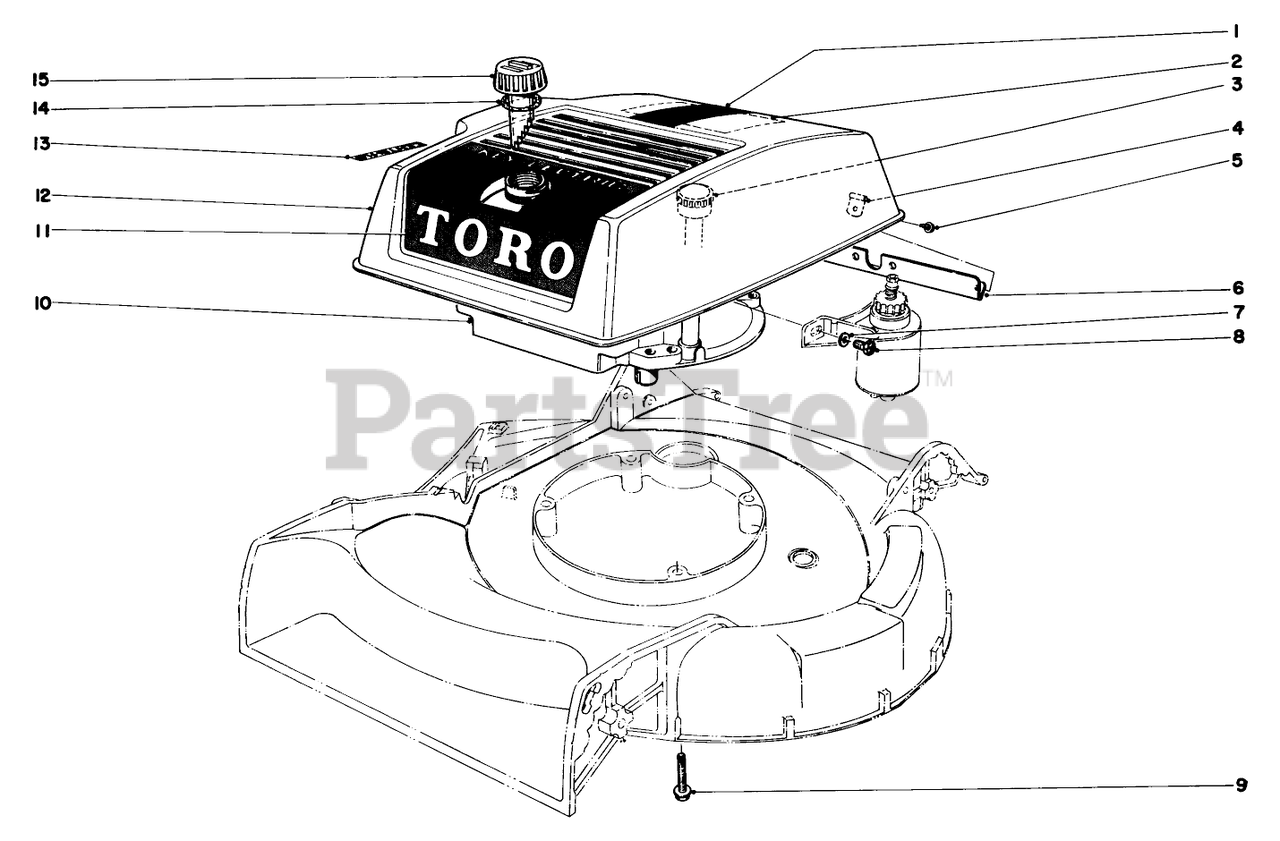

ENGINE ASSEMBLY MODEL NO. 18208 Parts Diagram

  • Title
1

Toro 11-2880

Decal

$

$

Currently unavailable

2

Toro 8-5620

Decal-Maintenance

$

$

Currently unavailable

3

Toro 8-3830

Dip Stick

$

$

Currently unavailable

4

Toro 11-6260

Hinge

$

$

Currently unavailable

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 8-5400

Shroud Bracket

$

$

Currently unavailable

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 8-3880

Screw
(Superseded to 12-3270)

$3.49

$

In Stock, Qty 11

0

9

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

10

Toro 221-361

Engine

$

$

Currently unavailable

11

Toro 10-3260

Decal

$

$

Currently unavailable

12

Toro 8-5420

Shroud

$

$

Currently unavailable

13

Toro 8-5680

Decal, Air Cleaner

$

$

Not available

14

Toro 5-2044

Gasket

$

$

Currently unavailable

15

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available
