1823 PS (1693997) - AGCO Garden Tractor, 23hp 54" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Garden Tractor, 23hp

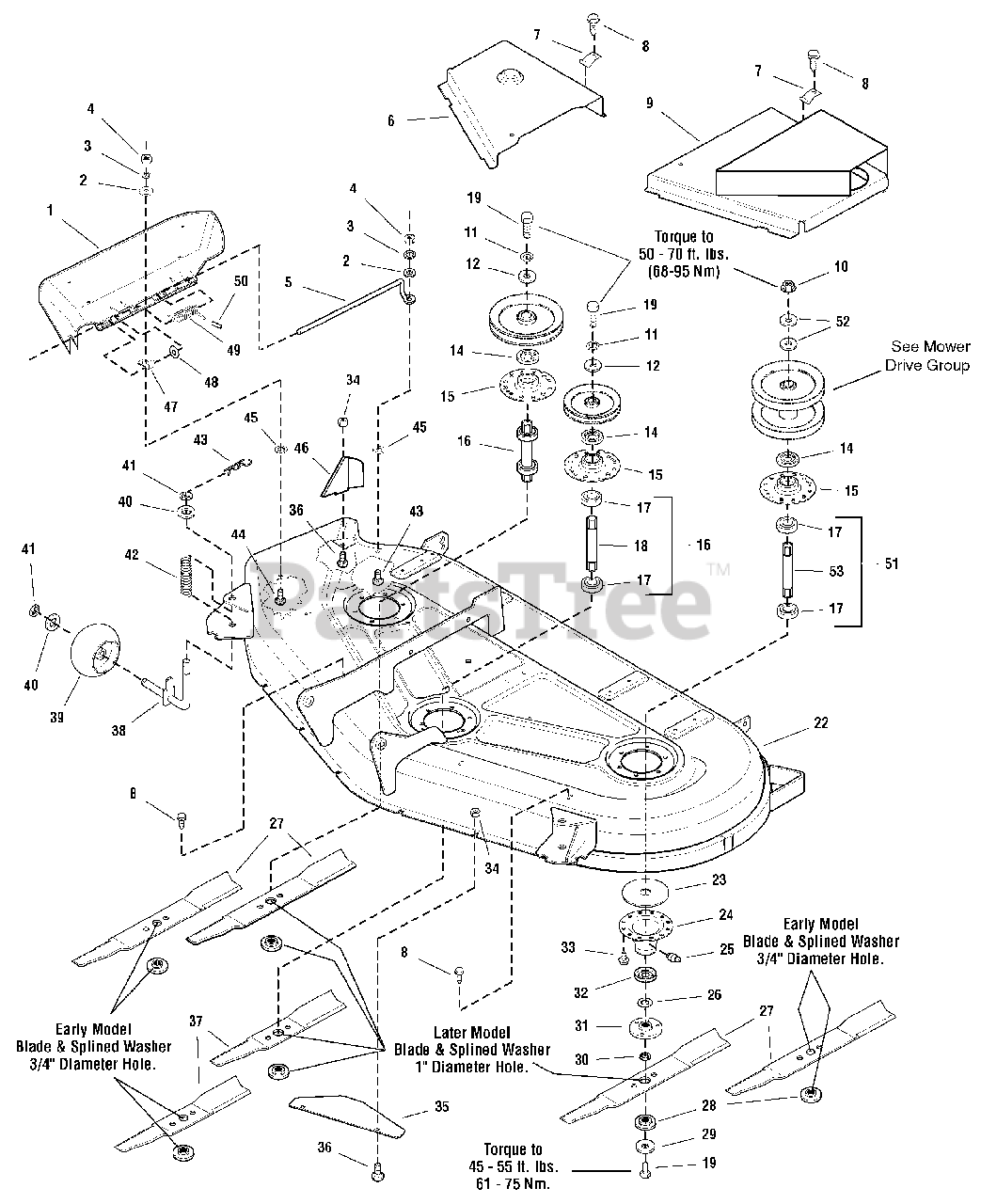

54" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 2 left!

0

2

Simplicity 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 1916622SM

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

6

Simplicity 1720184C

COVER, Arbor, RH (Orange)
(Superseded to 1720184CSM)

$125.99

$

In Stock, only 1 left!

0

6

Simplicity 1720184D

COVER, Arbor, RH (Red)
(Superseded to 1720184DSM)

$121.99

$

Usually ships in 2-12 days

0

7

Simplicity 1720623SM

CLIP, Spring

$8.49

$

In Stock, only 2 left!

0

8

Simplicity 1929000SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1720621CSM

ASSEMBLY, Cover, Arbor, LH (Orange)

$133.99

$

Usually ships in 2-12 days

0

9

Simplicity 1720621DSM

ASSEMBLY, Cover, Arbor, LH (Red)

$176.99

$

Usually ships in 2-12 days

0

10

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1918199SM

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1720183ASM

PULLEYS & HUB ASSEMBLY, Double, LH

$87.99

$

In Stock, only 4 left!

0

14

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

15

Simplicity 1655729ASM

HOUSING, Arbor, Top

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676278A

ARBOR SHAFT & BEARING ASSEMBLY (Includes Ref. Nos. 17 & 18)
(Superseded to 1676278SM)

$

$

Not available

17

Simplicity 2108202SM

BEARING, Ball, 3/4 x 1-3/4 x 5/8

$11.99

$

In Stock, Qty 20+

0

18

Simplicity 1676277SM

ARBOR SHAFT

$

$

Not available

19

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1679161ASM

PULLEY & HUB ASSEMBLY, Center
(Superseded to 1679161SM)

$70.99

$

In Stock, Qty 6

0

21

Simplicity 1720182ASM

PULLEY & HUB ASSEMBLY, RH

$54.99

$

In Stock, only 1 left!

0

22

Simplicity 1687012SM

HOUSING ASSEMBLY, Mower Housing, 54" (Orange)
(Superseded to 1687310SM)

$

$

Not available

22

Simplicity 1687168SM

HOUSING ASSEMBLY, Mower Housing, 54" (Red)

$923.99

$

Usually ships in 2-12 days

0

23

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 1703273ASM

ASSEMBLY, Housing, Bottom (Includes Ref. No. 25)

$38.99

$

In Stock, Qty 20+

0

25

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1687017SM

BLADE, Mower, 20-1/2 (3/4" Diameter Center Hole in Blade)

$34.99

$

In Stock, Qty 5

0

27

Simplicity 1725921ASM

BLADE, Mower, 20-1/2 (1" Diameter Center Hole in Blade)
(Superseded to 1736043AYP)

$29.99

$

In Stock, Qty 20+

0

28

Simplicity 1656927SM

WASHER, Splined (3/4" Diameter Center Hole in Blade)

$8.99

$

In Stock, Qty 17

0

28

Simplicity 1679711SM

WASHER, Splined (1" Diameter Center Hole in Blade)

$7.99

$

In Stock, Qty 20+

0

29

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

30

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1655777SM

ADAPTER, Blade

$25.99

$

In Stock, Qty 20+

0

32

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

33

Simplicity 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1919438SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1720962ASM

BAFFLE, Front, Anti-Blowout

$14.99

$

In Stock, Qty 6

0

36

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, (1 Needed for Rear Baffle)
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1687016SM

BLADE, Mower, 16 (3/4" Diameter Center Hole in Blade)

$32.99

$

In Stock, only 1 left!

0

37

Simplicity 1725922ASM

BLADE, Mower, 16 (1" Diameter Center Hole in Blade)
(Superseded to 1736044AYP)

$25.99

$

In Stock, Qty 20+

0

38

Simplicity 1720497A

SPINDLE & STOP ASSEMBLY

$

$

Not available

39

Simplicity 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, only 3 left!

0

40

Simplicity 1960020

WASHER, Plain, 5/8
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1703805SM

RING, Clip

$3.49

$

In Stock, Qty 12

0

42

Simplicity 1716346SM

SPRING, Compression

$6.99

$

In Stock, Qty 5

0

43

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

45

Simplicity 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

46

Simplicity 1724976ASM

BAFFLE, Discharge

$69.99

$

In Stock, only 1 left!

0

47

Simplicity 1704873SM

CLAMP, Wire

$4.49

$

In Stock, Qty 20+

0

48

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 9

0

49

Simplicity 1723938SM

SPRING

$

$

Not available

50

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0

51

Simplicity 1726825SM

SHAFT & BEARING ASSEMBLY

Note: (Includes Ref. Nos. 17 & 53)

$

$

Not available

52

Simplicity 1713675SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

53

Simplicity 1725812SM

ARBOR SHAFT

$164.99

$

Usually ships in 2-12 days

0
