18216 - Toro Whirlwind Walk-Behind Mower (SN: 000000001 - 000999999) (1970) HANDLE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

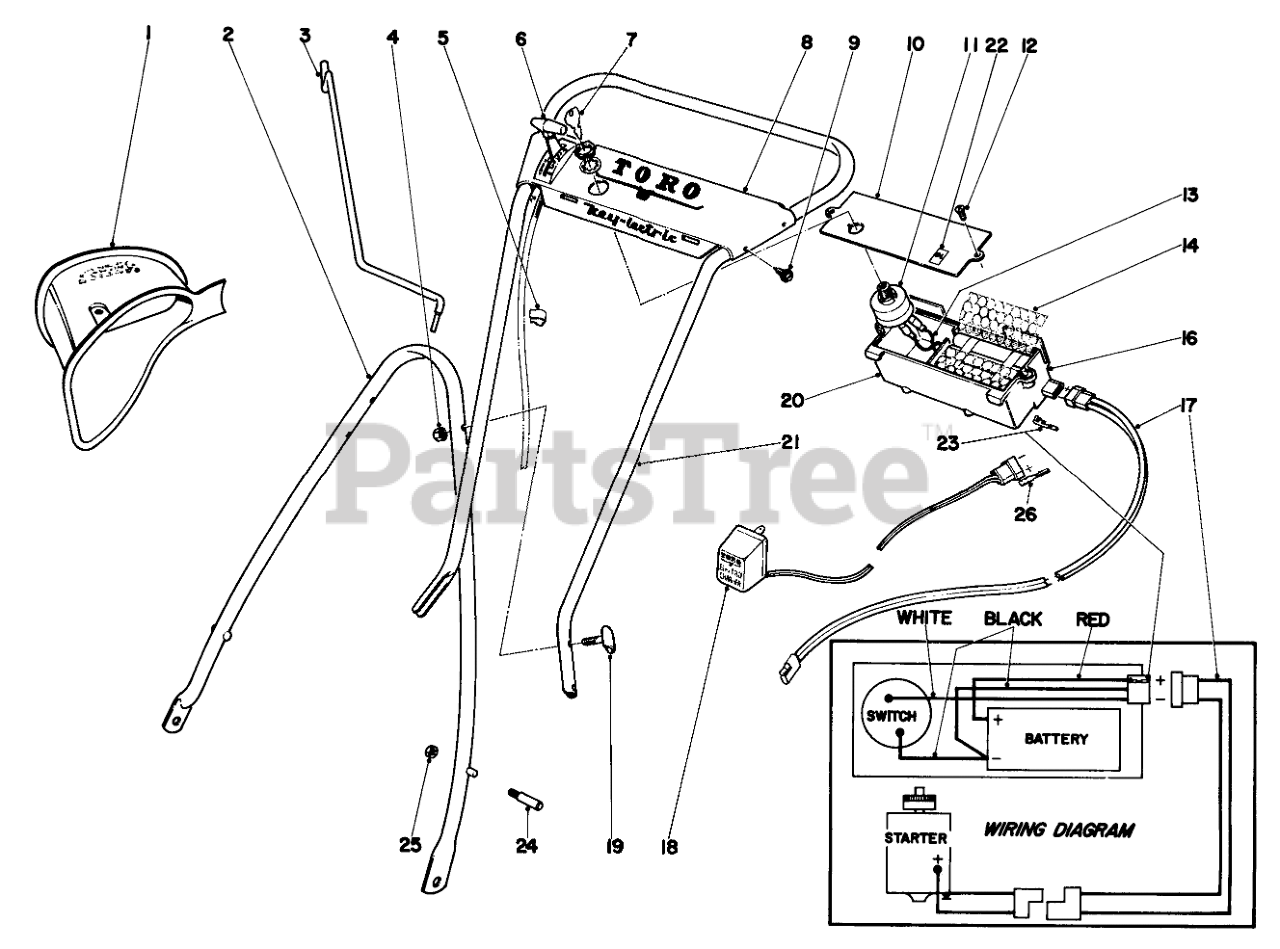

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3442

Attachment Bag
(Superseded to 11-0460)

$201.99

$

Usually ships in 3-6 days

0

2

Toro 3-9430

Handle-Lower

$

$

Currently unavailable

3

Toro 3-0690

GRASS BAG HANGER

$

$

Not available

4

Toro 32146-15

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

6

Toro 5-9560

Throttle Control
(Superseded to 46-6011)

$130.99

$

Usually ships in 3-6 days

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

8

Toro 5-4484

Plate, Escutcheon

$

$

Currently unavailable

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 5-4022

Cover, Battery Pack

$

$

Currently unavailable

11

Toro 5-4023

Switch, Starter

$

$

Currently unavailable

12

Toro 32104-91

Self Tapping Screw

$

$

Not available

13

Toro 5-3773

Lead Wire

$

$

Currently unavailable

14

Toro 5-3726

Spacer-Battery

$

$

Not available

16

Toro 5-3730

Container Battery Pack

$

$

Currently unavailable

17

Toro 5-4756

Harness

$

$

Currently unavailable

18

Toro 5-9680

Charger, Battery

$

$

Not available

19

Toro 3-2654

Bolt

$

$

Not available

20

Toro 4-8479

Battery Pack Assy. (Incl. Ref. 13 thru 16)

$

$

Currently unavailable

21

Toro 4-3669

Handle-Upper

$

$

Currently unavailable

22

Toro 5-5920

Decal

$

$

Currently unavailable

23

Toro 218-441

Terminal

$

$

Currently unavailable

Toro 4-2049

Bag-Set of 2
(Superseded to 5-8679)

Note: Not illustrated

$

$

Not available

Toro 3-6279

Grass Bag Locking Strap

Note: Not illustrated

$

$

Currently unavailable

24

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

25

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$1.49

$

Usually ships in 3-6 days

0

26

Toro 218-444

PLUG TERMINAL

$

$

Not available
