18215 - Toro Whirlwind Walk-Behind Mower (SN: 000000001 - 000999999) (1970) HANDLE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

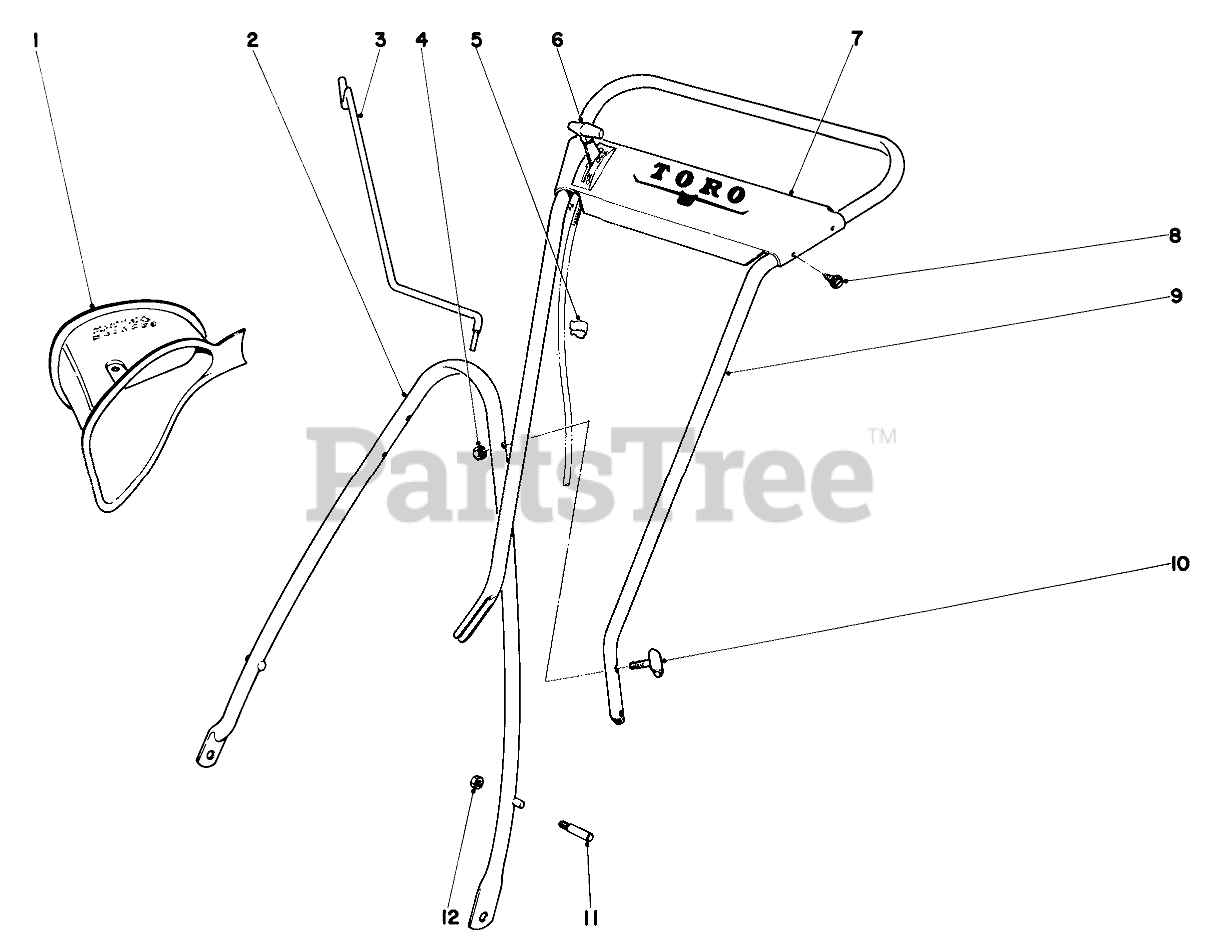

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3442

Attachment Bag
(Superseded to 11-0460)

$201.99

$

Usually ships in 3-6 days

0

2

Toro 3-9430

Handle-Lower

$

$

Currently unavailable

3

Toro 3-0690

GRASS BAG HANGER

$

$

Not available

4

Toro 32146-15

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

6

Toro 5-9560

Throttle Control
(Superseded to 46-6011)

$130.99

$

Usually ships in 3-6 days

0

7

Toro 5-0640

Escutcheon

$

$

Currently unavailable

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 4-3669

Handle-Upper

$

$

Currently unavailable

10

Toro 3-2654

Bolt

$

$

Not available

Toro 4-2049

Bag-Set of 2
(Superseded to 5-8679)

Note: Not illustrated

$

$

Not available

Toro 3-6279

Grass Bag Locking Strap

Note: Not illustrated

$

$

Currently unavailable

11

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

12

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$1.49

$

Usually ships in 3-6 days

0
