18215 - Toro Whirlwind Walk-Behind Mower (SN: 000000001 - 000999999) (1970) 19" WHIRLDWIND H.P.-FINGERTIP START Parts Diagram

Whirlwind Walk-Behind Mower

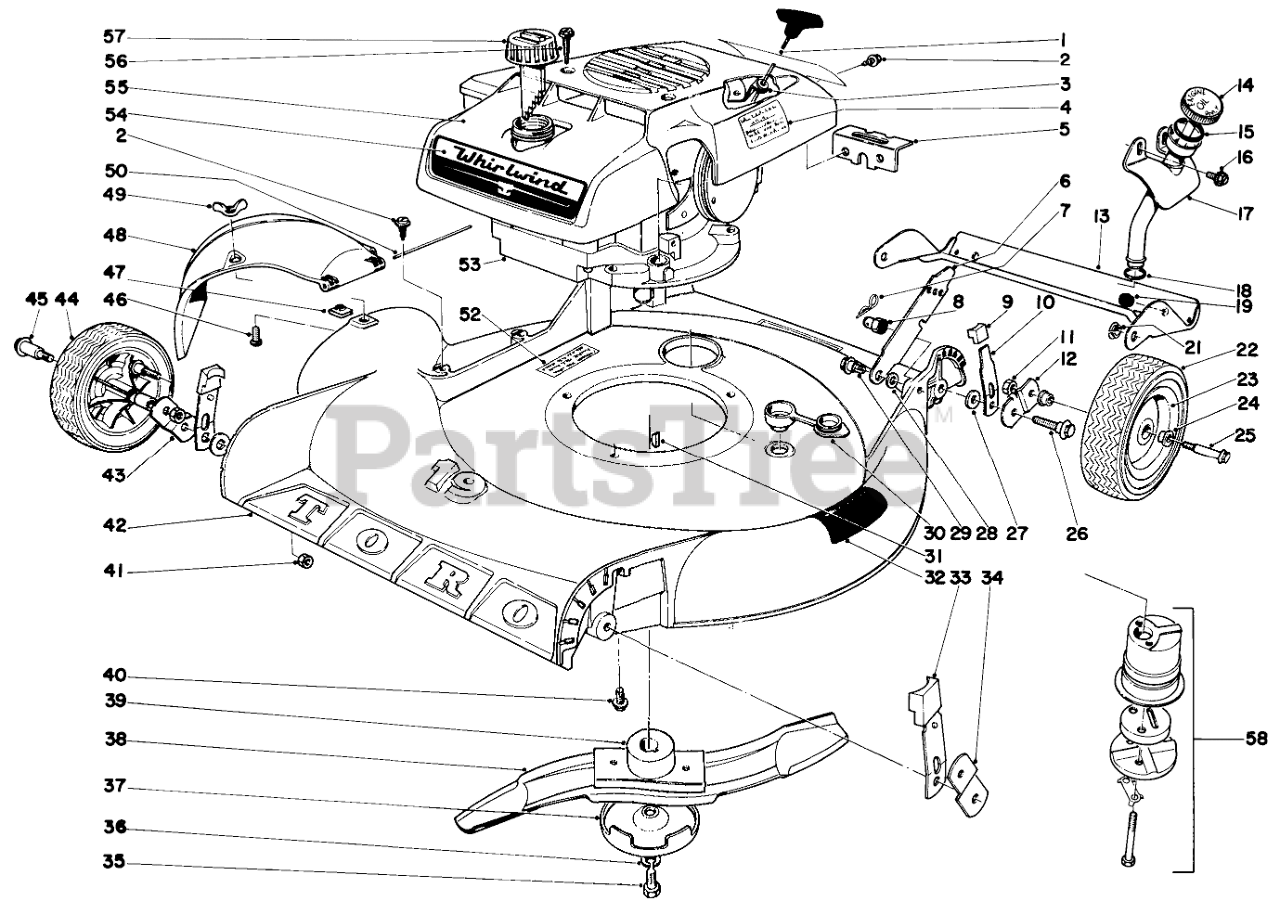

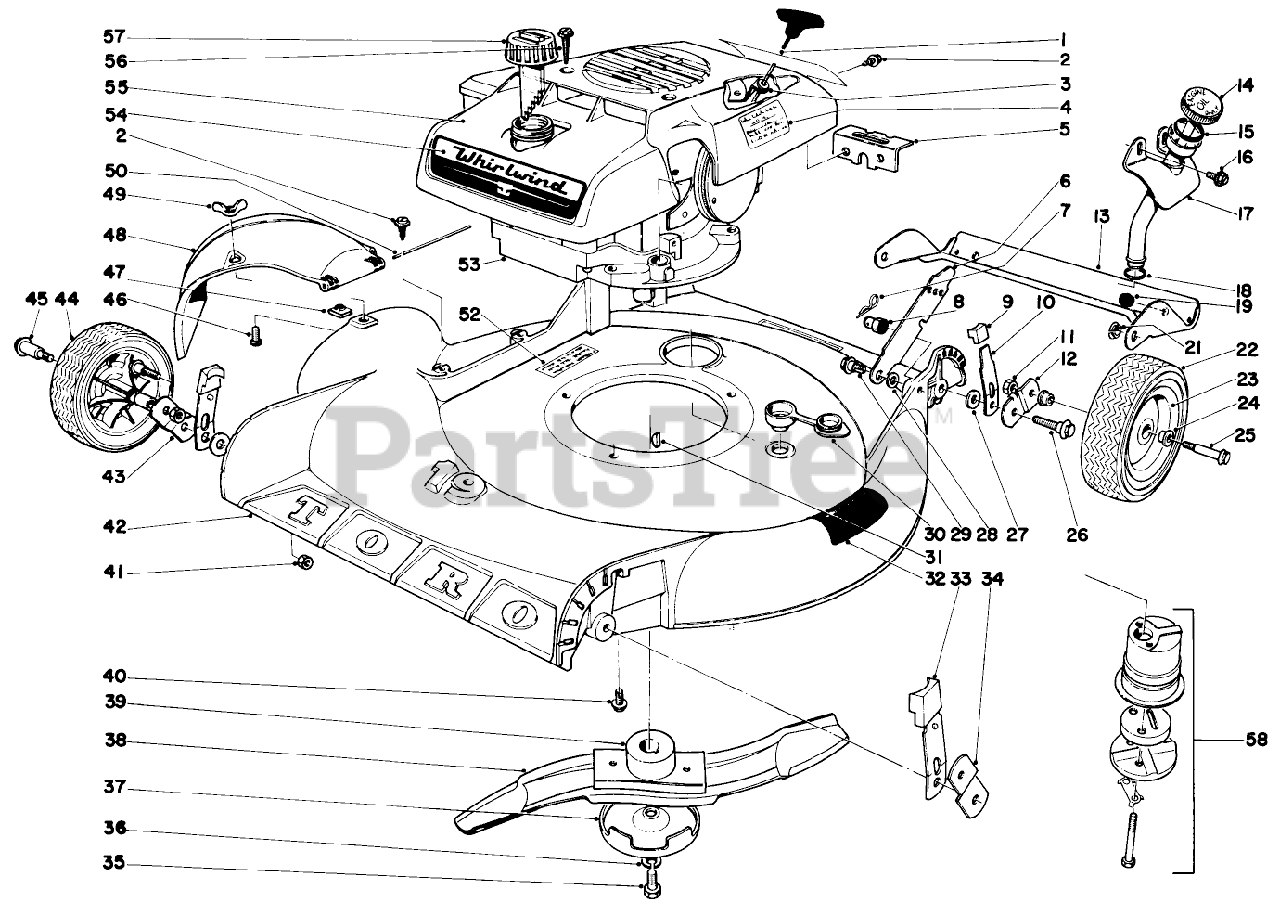

19" WHIRLDWIND H.P.-FINGERTIP START Parts Diagram

  • Title

1

Toro 5-3335

Decal

$

$

Currently unavailable

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 5-3340

Bracket,Recoil

$

$

Currently unavailable

4

Toro 5-4706

Decal,Start

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

7

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

8

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

9

Toro 5-0656

Knob

$

$

Not available

10

Toro 5-3357

Spring Arm

$

$

Not available

11

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

12

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

13

Toro 4-8879

REAR SAFETY SHIELD

$

$

Not available

14

Toro 5-4591

Dipstick

$

$

Currently unavailable

15

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 15

0

16

Toro 32140-66

Screw

$

$

Currently unavailable

17

Toro 6-0470

Oiler Tube

$

$

Not available

18

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

19

Toro 5-6450

SKID BUTTON

$

$

Not available

21

Toro 256-194

Nyliner

$

$

Currently unavailable

22

Toro 4-2600

8 TIRE

$

$

Not available

23

Toro 3-2563

Wheel Assy. (Incl. Ref. #24)

$0.99

$

In Stock, Qty 20+

0

24

Toro 3-2664

Bushing

$

$

Not available

25

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

26

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

In Stock, only 1 left!

0

27

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

28

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

29

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

30

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

31

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

32

Toro 5-2046

Pad

$

$

Currently unavailable

33

Toro 5-0657

ARM KNOB

$

$

Not available

34

Toro 5-4474

Pivot Arm
(Superseded to 20-3180)

$

$

Not available

35

Toro 3-5246

SPECIAL SCREW

$

$

Not available

36

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

37

Toro 5-9530

ANTI-SCALP CUP

$

$

Not available

38

Toro 3-6287

Blade

$

$

Not available

39

Toro 3-9810

BLADE RETAINER WA

$

$

Not available

40

Toro 32140-48

Screw
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

41

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

42

Toro 5-3326

Housing

$

$

Not available

43

Toro 5-4473

Pivot Arm
(Superseded to 20-3170)

$

$

Not available

44

Toro 5-0660

TIRE

$

$

Not available

45

Toro 3-2652

Bolt

$

$

Not available

46

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

47

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

48

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

49

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

50

Toro 3-2644

HINGE PIN

$

$

Not available

52

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

53

Toro 221-328

Engine, Recoil

$

$

Currently unavailable

54

Toro 5-3304

Decal

$

$

Currently unavailable

55

Toro 5-9550

Shroud

$

$

Currently unavailable

56

Toro 32104-88

SCREW-HWH

$

$

Not available

57

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

58

Toro 2-9319

MUFFLER KIT

$

$

Not available

Toro 4-8109

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 5-4472

Pivot Arm

Note: Not illustrated

$

$

Not available
