18213 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) CARBURETOR NO. 631243 Parts Diagram

Whirlwind Walk-Behind Mower

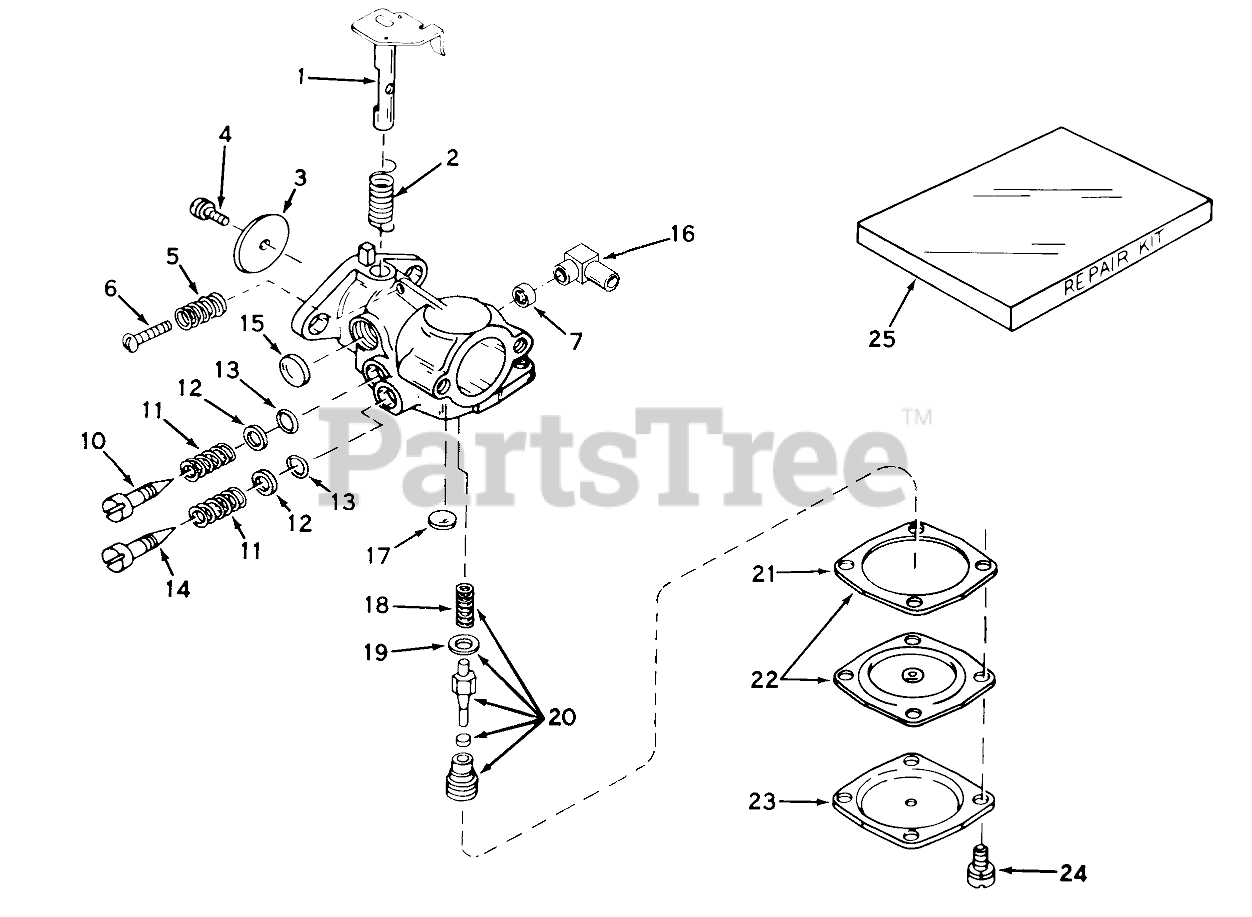

CARBURETOR NO. 631243 Parts Diagram

  • Title
1

Tecumseh 630983

Shaft & Lever Assy.
(Superseded to 631615)

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631279

Spring, Throtte Return
(Superseded to 631767)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 630733

Shutter, Throttle
(Superseded to 631036)

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 631201

Valve Check

$21.99

$

Usually ships in 3-12 days

0

10

Tecumseh 630767

Screw, Idle Adjustment
(Superseded to 631562)

$5.49

$

In Stock, Qty 11

0

11

$1.99

$

In Stock, Qty 8

0

12

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O"Ring

Note: Indicates items included in Repair Kit Part No. 630974.

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630737

Screw, Main Adjustment

$5.99

$

Usually ships in 3-12 days

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit Part No. 630974.

$1.99

$

In Stock, only 1 left!

0

16

Tecumseh 32267

Nipple, Fuel Inlet

$

$

Currently unavailable

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates items included in Repair Kit Part No. 630974.

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 630741

Spring, Needle Valve
(Superseded to 631049)

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932

Needle, Valve, Seat & Gasket
(Superseded to 630932A)

Note: Indicates items included in Repair Kit Part No. 630974.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Ass. (Incl. No. 21)

Note: Indicates items included in Repair Kit Part No. 630974.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 32185

63561/33165A O"HITC

$10.99

$

In Stock, only 1 left!

0

24

Tecumseh 650545

Screw, Diaphragm Cover

$1.99

$

Usually ships in 3-12 days

0

25

Tecumseh 630974

Repair Kit
(Superseded to 632027)

$

$

Not available
