18212 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) ENGINE MODEL NO. LAV30-30360G Parts Diagram

Whirlwind Walk-Behind Mower

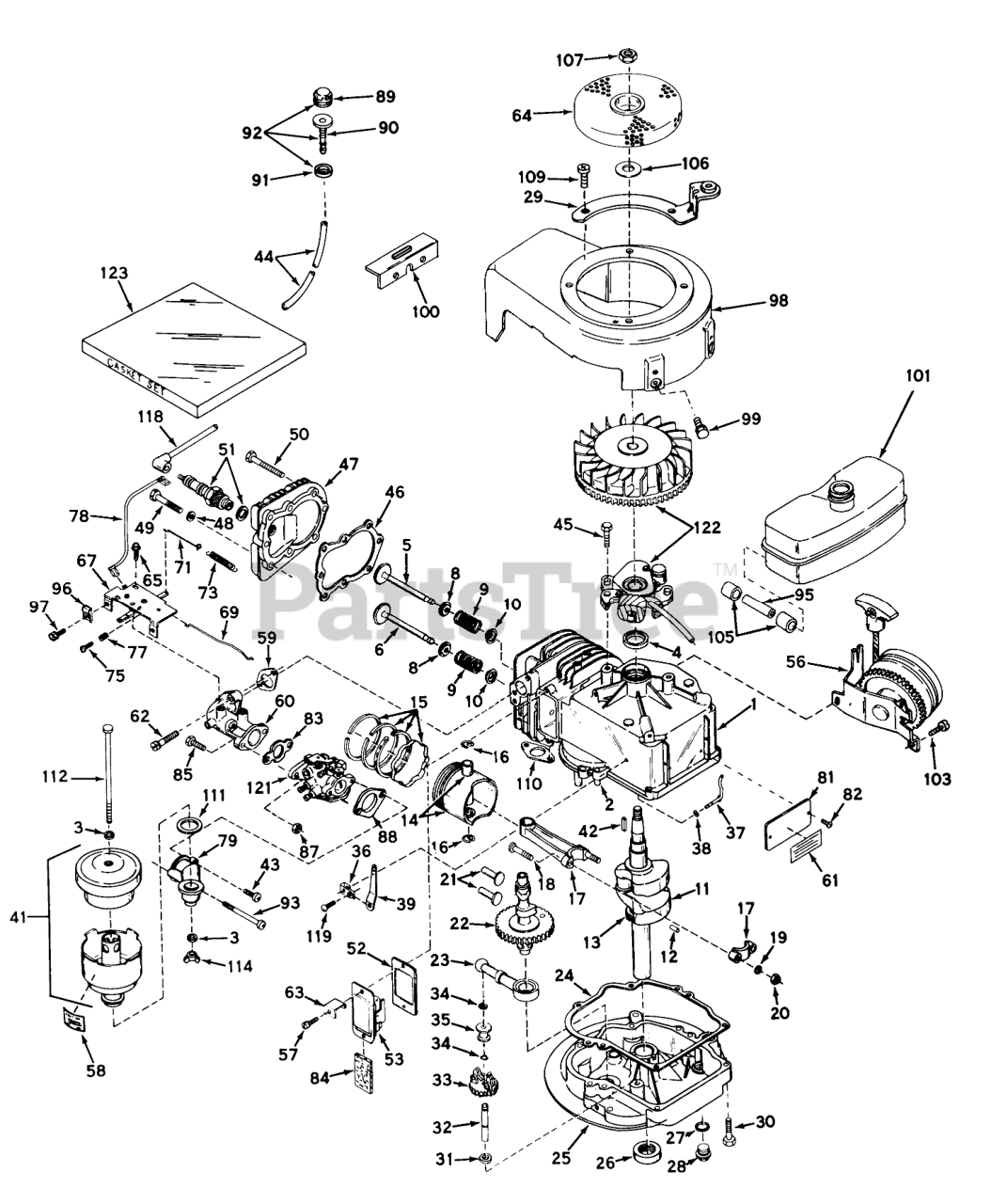

ENGINE MODEL NO. LAV30-30360G Parts Diagram

  • Title

1

Tecumseh 32617

Cylinder Assy. (Incl. Nos. 2 & 4)
(Superseded to 32617A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27183

Washer Fibre

$

$

Currently unavailable

4

Tecumseh 29183

OIL SEAL

Note: Included in Gasket Set part no. 31409B

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard)(Incl. Nos. 8, 9 & 10)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29316A

Valve, Intake (1/32" Overs.)(Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313A

Valve, Exhaust (Standard)(Incl. Nos. 8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315A

Valve, Exhaust (1/32" Overs.)(Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

8

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 30961

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 31900)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 31304

Piston & Pin Assy. (Stnd)(Incl. 2 of No. 16)
(Superseded to 31761B)

$40.99

$

Usually ships in 3-12 days

0

14

Tecumseh 31305

Piston & Pin Assy. (.010 Oversize)(Incl. 2 of No. 16)
(Superseded to 32662B)

$30.99

$

Usually ships in 3-12 days

0

14

Tecumseh 31306

Piston & Pin Assy. (.020 Oversize)(Incl. 2 of No. 16)
(Superseded to 32663B)

$

$

Not available

15

Tecumseh 27565

Ring Set, Piston (Std.)

$24.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27566

Ring Set, Piston (.010 o.s.)

$18.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27567

Ring Set, Piston (.020 o.s.)

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963A

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)
(Superseded to 30963B)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 20747

Washer

$

$

Currently unavailable

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 31316

Camshaft

$23.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Included in Gasket Set part no. 31409B

$2.99

$

In Stock, only 3 left!

0

25

Tecumseh 31907

Flange Assy., Mounting (Incl. Nos. 26, 27, 28 & 32)
(Superseded to 37644)

$81.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Seal Oil

Note: Included in Gasket Set part no. 31409B

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 28833

Gasket-Oil Drain

Note: Included in Gasket Set part no. 31409B

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

29

Bracket Assy., Starter

Note: Order from your Toro Dealer

$

$

Not available

30

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. No. 38)

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 31383

Lever, Governor
(Superseded to 31383A)

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 31404

Cleaner Assy., Air

$

$

Currently unavailable

42

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

43

Tecumseh 28597

KIT - SEAL & WIPER
(Superseded to 650163)

$1.99

$

In Stock, only 3 left!

0

44

Tecumseh 32180

Beam Assy.
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included in Gasket Set part no. 31409B

$16.99

$

In Stock, only 1 left!

0

47

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

48

Tecumseh 26073

Washer

$

$

Not available

49

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 6023

Screw
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

51

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.49

$

In Stock, Qty 11

0

52

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Included in Gasket Set part no. 31409B

$7.49

$

In Stock, only 2 left!

0

53

Tecumseh 31337

Breather Assy. (Incl. Nos. 52 & 84)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

56

Tecumseh 590450

Starter, Side Mount Rewind
(Superseded to 590519)

$

$

Not available

57

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

58

Tecumseh 30002

Decal, Air Cleaner

$

$

Currently unavailable

59

Tecumseh 30188

Gasket, Intake
(Superseded to 32649A)

Note: Included in Gasket Set part no. 31409B

$2.99

$

In Stock, Qty 18

0

60

Tecumseh 31384

Pipe, Intake
(Superseded to 31384A)

$21.99

$

In Stock, only 2 left!

0

61

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

62

Tecumseh 650176

Screw, Fil. Hd. Sems
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

63

Tecumseh 30593

Retainer Clip

$1.99

$

In Stock, only 1 left!

0

64

Tecumseh 32237

Screen, Flywheel

$

$

Not available

65

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

67

Tecumseh 32181

Depth Bar
(Superseded to 32181A)

$

$

Not available

69

Tecumseh 31385A

Link, Throttle to Governor
(Superseded to 32652)

$1.99

$

In Stock, only 3 left!

0

71

Tecumseh 31387A

Link, Governor Spring

$1.49

$

Usually ships in 3-12 days

0

73

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

75

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

78

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

79

Tecumseh 31473

Elbow, Air cleaner

$

$

Currently unavailable

81

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

82

Tecumseh 28670

Stud

$

$

Currently unavailable

83

Tecumseh 31688

Gasket-Carburetor
(Superseded to 31688A)

$2.49

$

In Stock, only 2 left!

0

84

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

85

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

88

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included in Gasket Set part no. 31409B

$4.49

$

In Stock, Qty 20+

0

89

Tecumseh 32183

33164A GILO"HITCH A
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

90

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

91

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

92

Tecumseh 32182

Primer Assy. (Incl. Nos. 89, 90 & 91)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

93

Tecumseh 650519

Screw

$

$

Currently unavailable

95

Tecumseh 31400

Line, Fuel
(Superseded to 33754)

$

$

Not available

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

98

Tecumseh 32369

Housing, Blower
(Superseded to 32455B)

$

$

Currently unavailable

99

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

100

Bracket, Shroud

Note: Order from your Toro Dealer

$

$

Not available

101

Tecumseh 32170

Tank, Fuel
(Superseded to 37947)

$

$

Not available

103

Tecumseh 650191

Screw, Fil. Hd. Sems

$

$

Currently unavailable

105

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

106

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

109

Tecumseh 29716

Screw

$1.49

$

In Stock, Qty 6

0

110

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Included in Gasket Set part no. 31409B

$1.49

$

In Stock, only 2 left!

0

111

Tecumseh 27165

Gasket, Spacer

Note: Included in Gasket Set part no. 31409B

$

$

Currently unavailable

112

Tecumseh 650622

Bolt, Air Cleaner
(Superseded to 31406)

$

$

Currently unavailable

114

Tecumseh 9577

Nut, Wing
(Superseded to 650993)

$1.99

$

Usually ships in 3-12 days

0

118

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

119

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

121

Tecumseh 631243

Carburetor

$

$

Currently unavailable

122

Tecumseh 610716

Magneto

$

$

Currently unavailable

123

Tecumseh 31409B

Gasket Set
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0
