18212 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) 19" FLNGERTIP START MAIN FRAME PARTS LIST Parts Diagram

Whirlwind Walk-Behind Mower

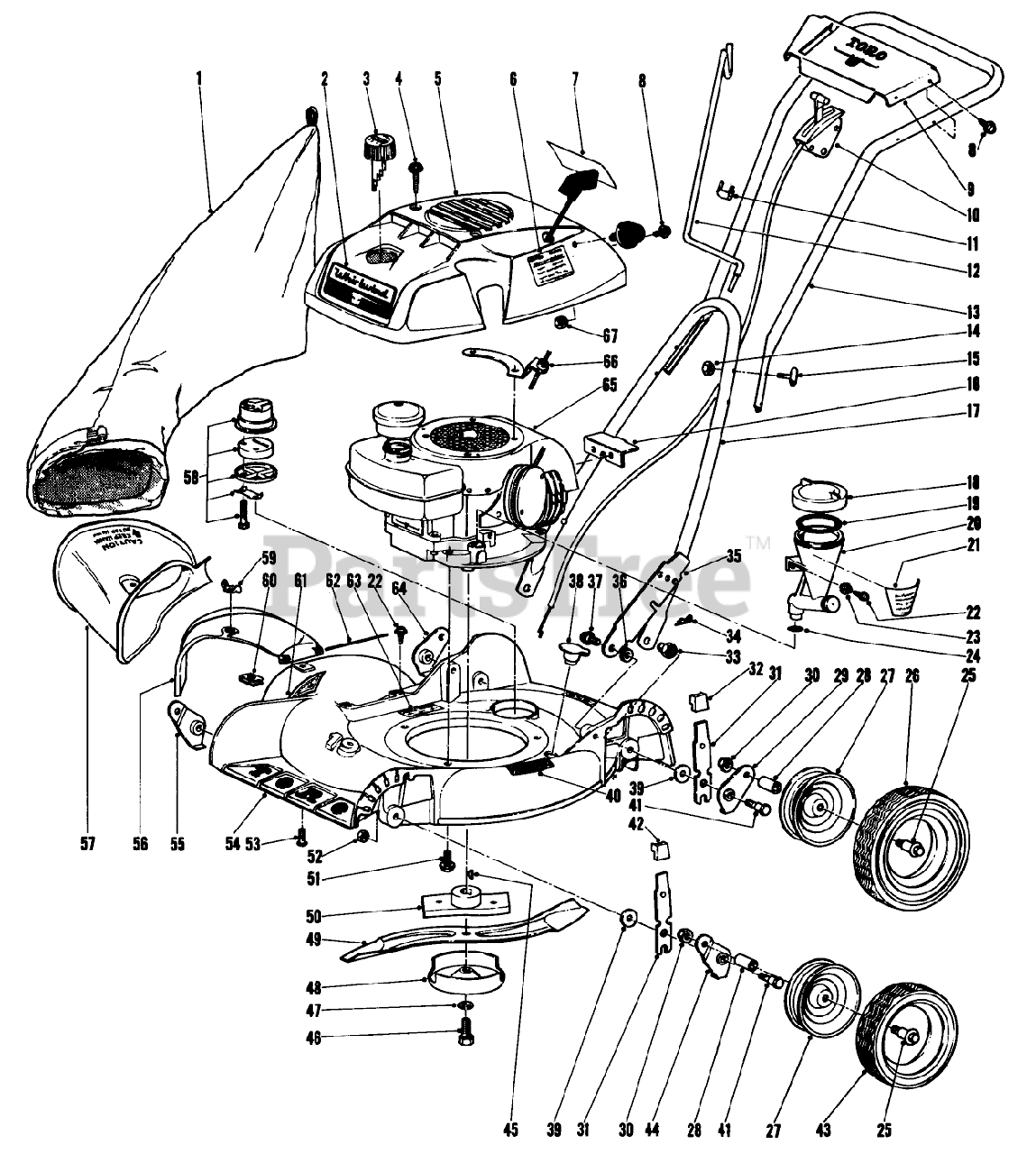

19" FLNGERTIP START MAIN FRAME PARTS LIST Parts Diagram

  • Title

1

Toro 81064

Bag-Set of 2

$

$

Currently unavailable

2

Toro 5-3304

Decal

$

$

Currently unavailable

3

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

4

Toro 32104-88

SCREW-HWH

$

$

Not available

5

Toro 5-3331

Shroud

$

$

Currently unavailable

6

Toro 5-3342

Decal-Start & Prime

$

$

Currently unavailable

7

Toro 5-3335

Decal

$

$

Currently unavailable

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 5-0640

Escutcheon

$

$

Currently unavailable

10

Toro 5-3317

Throttle Control
(Superseded to 46-6011)

$130.99

$

Usually ships in 3-6 days

0

11

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

12

Toro 3-0690

GRASS BAG HANGER

$

$

Not available

13

Toro 5-0645

Handle-Upper

$

$

Currently unavailable

14

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

15

Toro 3-2654

Bolt

$

$

Not available

16

Toro 5-3307

Bracket

$

$

Currently unavailable

17

Toro 3-9430

Handle-Lower

$

$

Currently unavailable

18

Toro 3-8429

Reservoir Cap w/Ring

$

$

Currently unavailable

19

Toro 5-1391

"O" Ring

$

$

Not available

20

Toro 5-0625

Reservoir, Oil

$

$

Not available

21

Toro 5-2947

Decal, Reservoir

$

$

Currently unavailable

22

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

23

Toro 3290-261

Washer

$

$

Currently unavailable

24

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

25

Toro 3-2652

Bolt

$

$

Not available

26

Toro 4-2600

8 TIRE

$

$

Not available

27

Toro 3-2563

Wheel (Incl. Ref. 22)

$0.99

$

In Stock, Qty 20+

0

28

Toro 3-2664

Bushing

$

$

Not available

29

Toro 3-2634

Pivot Arm

$

$

Currently unavailable

30

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

31

Toro 3-2637

Spring Arm

$

$

Currently unavailable

32

Toro 5-0656

Knob

$

$

Not available

33

Toro 3-6482

Nut
(Superseded to 12-2080)

$25.99

$

Usually ships in 3-6 days

0

34

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

35

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

36

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

37

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

38

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

39

Toro 3-5956

Washer
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

40

Toro 5-2046

Pad

$

$

Currently unavailable

41

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

42

Toro 5-0657

ARM KNOB

$

$

Not available

43

Toro 5-0660

TIRE

$

$

Not available

44

Toro 5-1984

Arm, Pivot

$

$

Currently unavailable

45

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

46

Toro 3-5246

SPECIAL SCREW

$

$

Not available

47

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

48

Toro 3-6292

Scalp Cup
(Superseded to 5-9530)

$

$

Not available

49

Toro 5-1611

Blade

$

$

Not available

50

Toro 3-9810

BLADE RETAINER WA

$

$

Not available

51

Toro 32140-4

Screw, Self Tapping

$

$

Currently unavailable

52

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

53

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

54

Toro 5-3326

Housing

$

$

Not available

55

Toro 5-1986

Arm, Pivot

$

$

Currently unavailable

56

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

57

Toro 5-3442

Attachment Bag
(Superseded to 11-0460)

$201.99

$

Usually ships in 3-6 days

0

58

Toro 2-9319

MUFFLER KIT

$

$

Not available

59

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

60

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

61

Toro 5-1426

Decal

$

$

Currently unavailable

62

Toro 3-2644

HINGE PIN

$

$

Not available

63

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

64

Toro 3-2635

Pivot Arm

$

$

Currently unavailable

65

Toro 221-286

Engine, Recoil

$

$

Currently unavailable

66

Toro 5-3340

Bracket,Recoil

$

$

Currently unavailable

67

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0
