18208 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HANDLE ASSEMBLY MODEL NO. 18208 Parts Diagram

Guardian Walk-Behind Mower

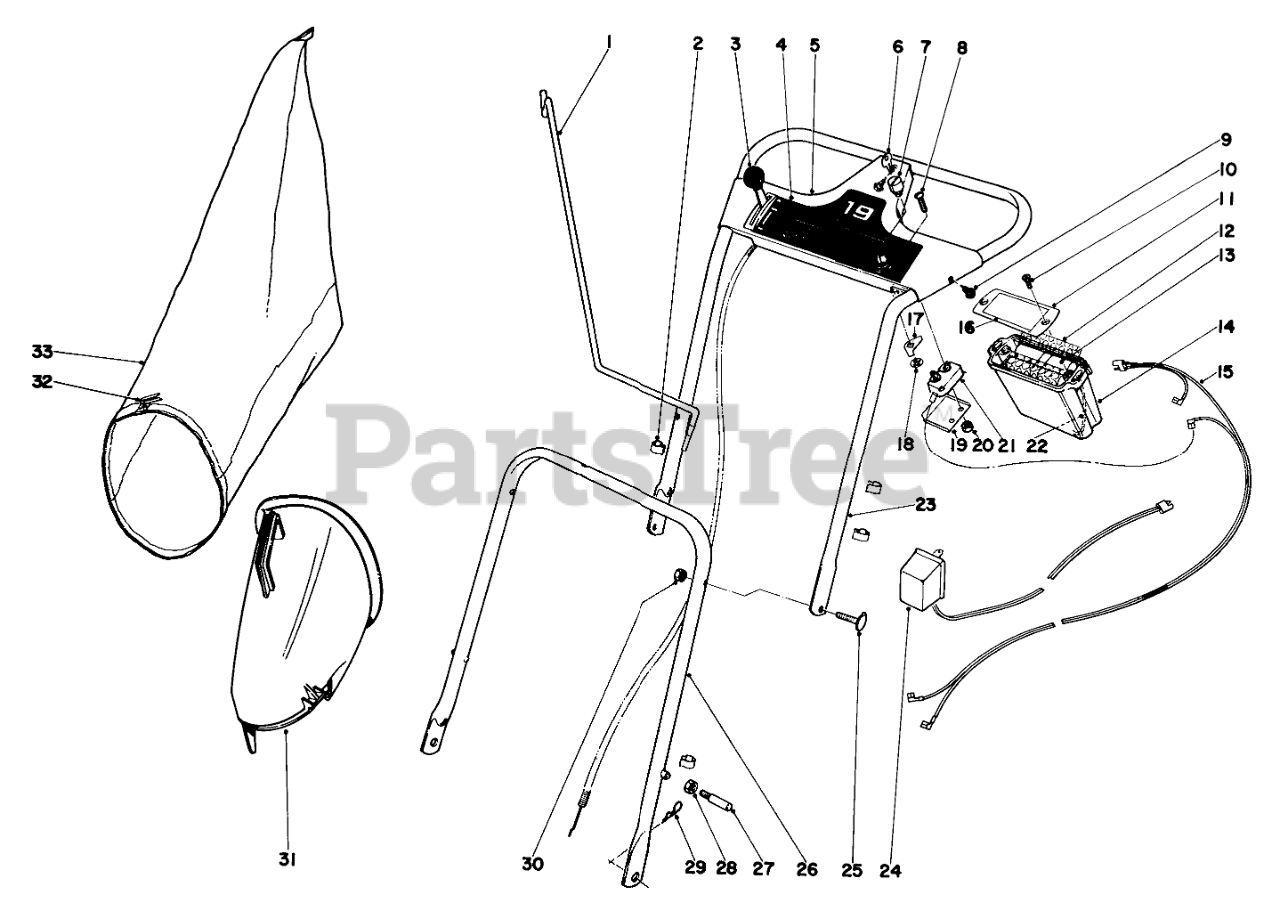

HANDLE ASSEMBLY MODEL NO. 18208 Parts Diagram

  • Title
1

Toro 5-1050

Bag Hanger Rod
(Superseded to 12-3030)

$107.99

$

Usually ships in 3-6 days

0

2

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

3

Toro 8-6440

Throttle Control
(Superseded to 46-6011)

$130.99

$

Usually ships in 3-6 days

0

4

Toro 8-6530

Decal, Escutcheon Plate

$

$

Currently unavailable

5

Toro 8-5730

Escutcheon Plate

$

$

Currently unavailable

6

$

$

Not available

7

Toro 6-8210

Key Hsg.

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

$

$

Not available

11

Toro 6-8230

Cover

$

$

Not available

12

Toro 6-8320

Spacer

$

$

Not available

13

Toro 11-7260

Battery Pack

$

$

Not available

14

Toro 6-9750

Container Pack

$

$

Not available

15

Toro 6-6310

Wire Harness

$

$

Not available

16

Toro 8-5600

Decal

$

$

Currently unavailable

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Toro 8-2410

Cover Switch

$

$

Currently unavailable

20

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

21

Toro 6-8260

Switch

$

$

Currently unavailable

22

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

23

Toro 8-6380

Upper Handle

$

$

Currently unavailable

24

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

25

Toro 6-6320

1-1/4 LG HANDLE SCREW

$

$

Not available

26

Toro 8-6420

Lower Handle

$

$

Currently unavailable

27

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

28

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$1.49

$

Usually ships in 3-6 days

0

29

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

30

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

31

Toro 8-5160

Bag Attachment
(Superseded to 12-0750)

$155.99

$

Usually ships in 3-6 days

0

32

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

33

Toro 5-309

Flow Gauge

$

$

Currently unavailable
