182 (133-182-399) - Cub Cadet Lawn Tractor Brake Controls Parts Diagram

Lawn Tractor

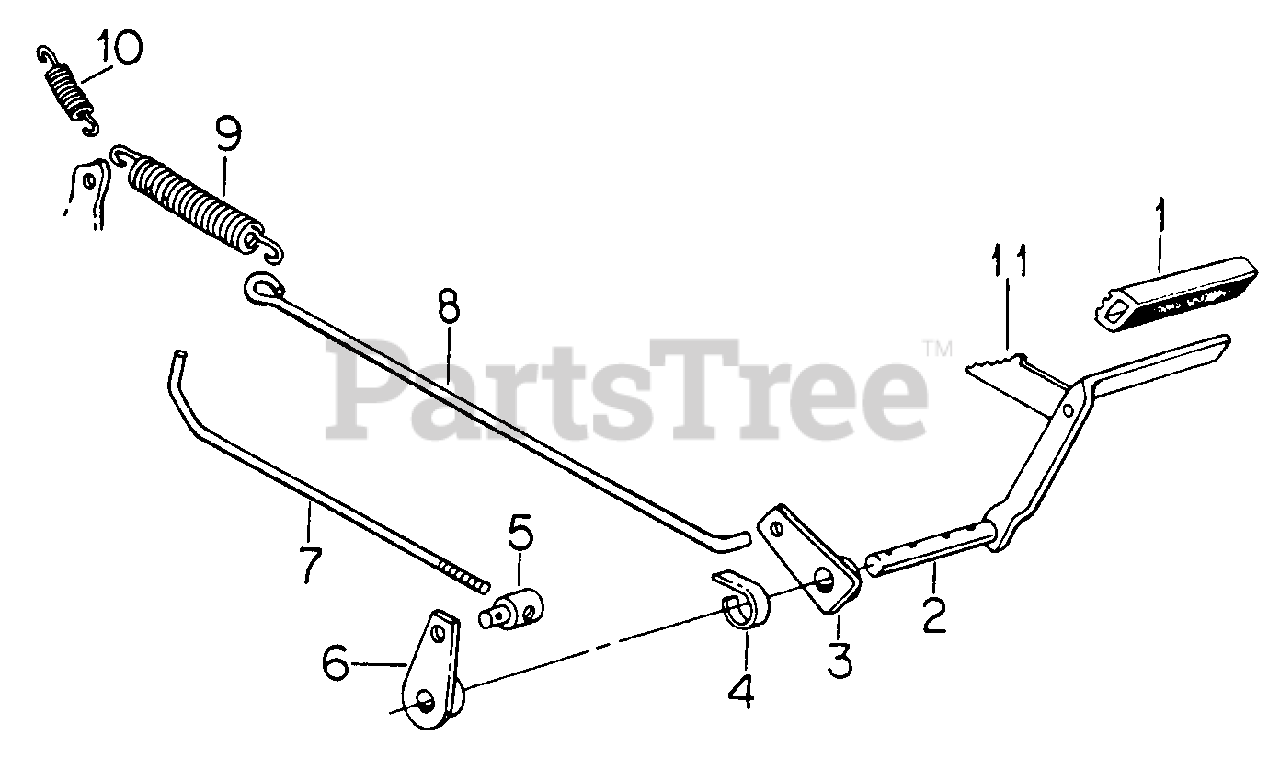

Brake Controls Parts Diagram

  • Title
1

Cub Cadet 724-3001

Pad, Pedal

Note: (Serial Number 74457 and Below)

$

$

Not available

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

Note: (Serial Number 74458 and Above)

$19.99

$

In Stock, Qty 9

0

2

Cub Cadet 703-0858

Pedal Assy, Clutch & Brake

Note: (Replaces 703-0856 on Tractors w/Serial No. 74457 and Below by Also Orderin

$

$

Currently unavailable

Cub Cadet 736-3028

Washer, .781 x 1.250 x .054

$

$

Not available

3

Cub Cadet 703-0278

Lever Assy, Foot Pedal Brake

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 x 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

4

Cub Cadet 732-3024

Spring, Neutral Start

$

$

Not available

5

Cub Cadet 711-3116

Pin, Adjustment

$

$

Not available

Cub Cadet 736-0275

Washer, .344 x .688 x .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 714-0507

Pin, 3/32 x 3/4 Cot

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 703-0280

Arm, Pivot

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 x 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet 747-3093

Rod, Clutch

$

$

Not available

8

Cub Cadet 747-3072

Rod, Brake

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 x 3/4 Cot

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0140

Washer, .406 x .812 x .051

$7.49

$

In Stock, Qty 6

0

9

Cub Cadet 732-3047

Spring, Brake Tension

$

$

Not available

10

Cub Cadet 732-0395

Spring, 1/2 x .251 Extension
(Superseded to 932-0395)

$

$

Not available

Cub Cadet IH-22256-R1

Washer, .281 x .500 x .056 Pln

$

$

Currently unavailable

11

Ratchet, Brake Lock

Note: (Serial Number 74457 and Below Order Pedal 703-0858, Kit 759-3128, Grip 720

$

$

Not available

Ratchet, Brake Lock

Note: (Serial Number 74458 and Above Order Kit 759-3128)

$

$

Not available

Cub Cadet 720-3004

Grip, Brake Lock Ratchet

Note: (Serial Number 74458 and Above)

$

$

Currently unavailable

Cub Cadet 759-3128

Kit, Brake Lock

Note: (Serial Number 74458 and Above) Ratchet Nut Washer, Bell Washer, Flat

$

$

Not available
