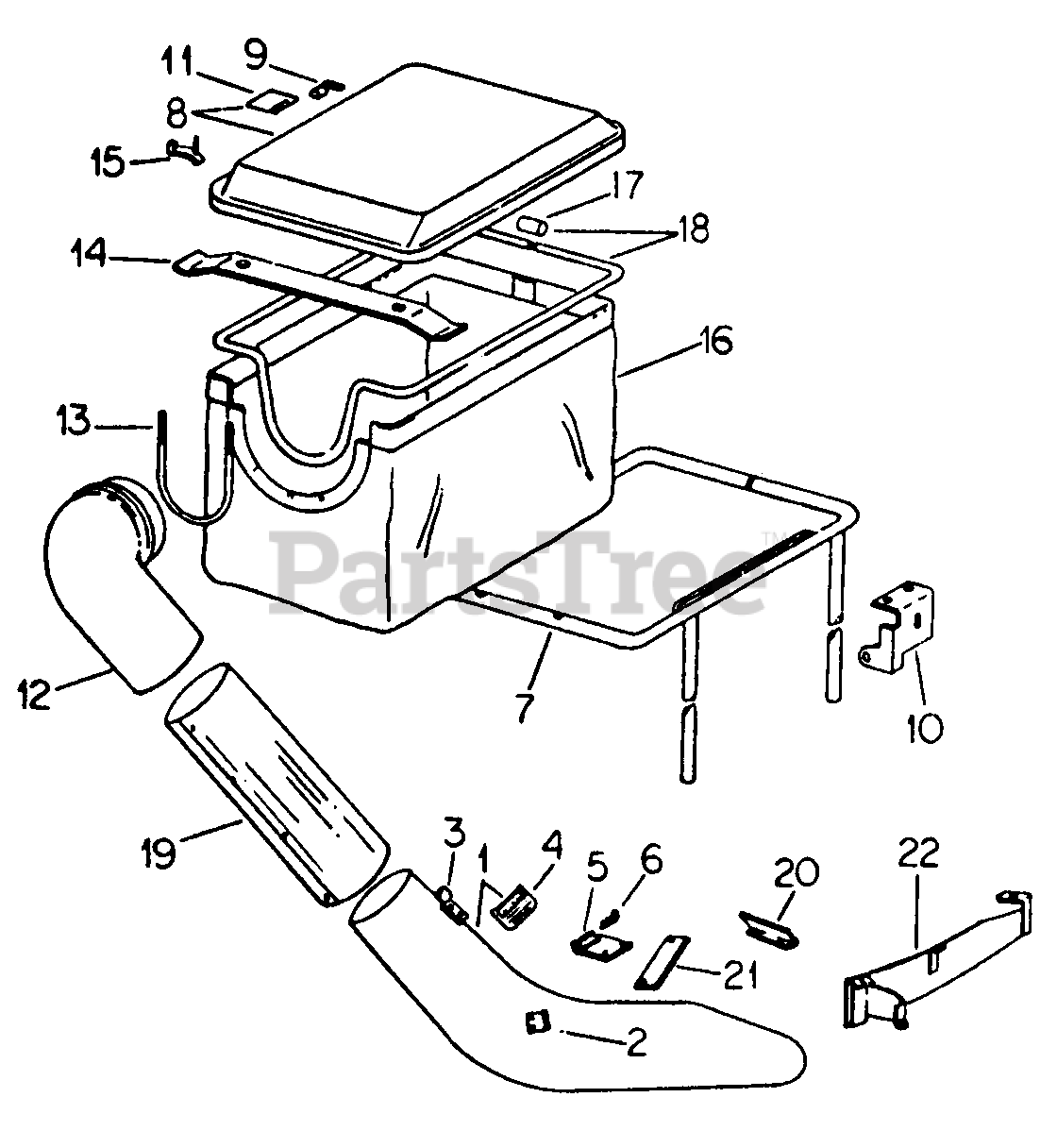

182 (133-182-100) - Cub Cadet Lawn Tractor Grass Catcher Attachment Parts Diagram

Lawn Tractor

Grass Catcher Attachment Parts Diagram

  • Title

1

Cub Cadet 703-0926

Chute Assy, Discharge

$

$

Not available

2

Cub Cadet 723-3031

Hinge, Chute

$

$

Not available

3

Cub Cadet 703-0633

Retainer, Tube

$

$

Not available

4

Cub Cadet 779-3172

Product Graphic, Caution

$

$

Currently unavailable

5

Cub Cadet 703-0573

Hinge Assy, Chute

$

$

Not available

Cub Cadet 710-3098

Screw, 1/4 X 1/2 Znp P/Hds Mach

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

6

Cub Cadet 714-3020

Pin, Quick-Attachable Cot Cdp

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0636

Frame Assy, Bagger

$

$

Not available

8

Cub Cadet 703-0637

Cover Assy, Grass Bag

$

$

Not available

9

Cub Cadet 703-0638

Clip, Cover

$

$

Not available

10

Cub Cadet 703-0639

Support, Cover

Note: (Furnished as Part of 703-0637)

$

$

Not available

Cub Cadet 736-3065

Washer

Note: (Furnished as Part of 703-0637)

$

$

Not available

11

Cub Cadet 779-3173

Product Graphic, Caution - Mower Instructions

Note: (Furnished as Part of 703-0637)

$

$

Currently unavailable

Cub Cadet 710-3073

Bolt, 5/16 X 2-1/4 Type 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 750-3025

Spacer, 1/4 X .438 Std Pipe

$

$

Currently unavailable

Cub Cadet 712-3009

Nut, 5/16 Cad P/T Lock Type 5

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 731-3031

Elbow, Chute

$

$

Not available

13

Cub Cadet 747-3078

Bracket, Elbow

$

$

Not available

14

Cub Cadet 732-3034

Spring, Bag Retainer

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-0634

Catch Assy

$

$

Not available

Cub Cadet 715-3008

Pin, 1/8 X 3/4 Pln Slt Spr

$

$

Not available

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 6

0

Cub Cadet 736-3066

Washer, Curved Spring

$

$

Not available

16

Cub Cadet 703-0641

Bag, Grass

$

$

Currently unavailable

17

Sleeve, Bag Frame

Note: (Order 703-0641)

$

$

Not available

18

Frame, Bag

Note: (Order 703-0641)

$

$

Not available

19

Cub Cadet 731-3032

Sheet, Connecting Tube

$

$

Not available

Cub Cadet 710-3099

Screw, No. 8 X 3/8 Znp P/Hds Mach

$

$

Currently unavailable

Cub Cadet 736-3067

Washer, .188 X .438 X .036 Cad

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0142

Nut, No. 8 Cad Mach Screw Type 1

$4.49

$

In Stock, Qty 10

0

20

Cub Cadet 703-0576

Impeller, 36 In. Mower Blade

$

$

Not available

Cub Cadet 710-3100

Bolt, 5/16 X 3/4 Phc Type 8

$

$

Not available

Cub Cadet 712-3046

Nut, 5/16 Phc P/T Lock Type 8

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-0642

Flange, Locator

$

$

Not available

Cub Cadet 736-3008

Washer, .344 X .750 X .105
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

Bolt, 1/4 X 1/2 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

Cub Cadet 710-0118

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Washer, .281 X .750 X .105

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 703-0586

Shroud Assy, 36 In. Mower

Variations

Cub Cadet 703-0586-0637

SHROUD - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-0118

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 750-3026

Spacer, 3/4 X 3 Std Pipe

$

$

Not available
