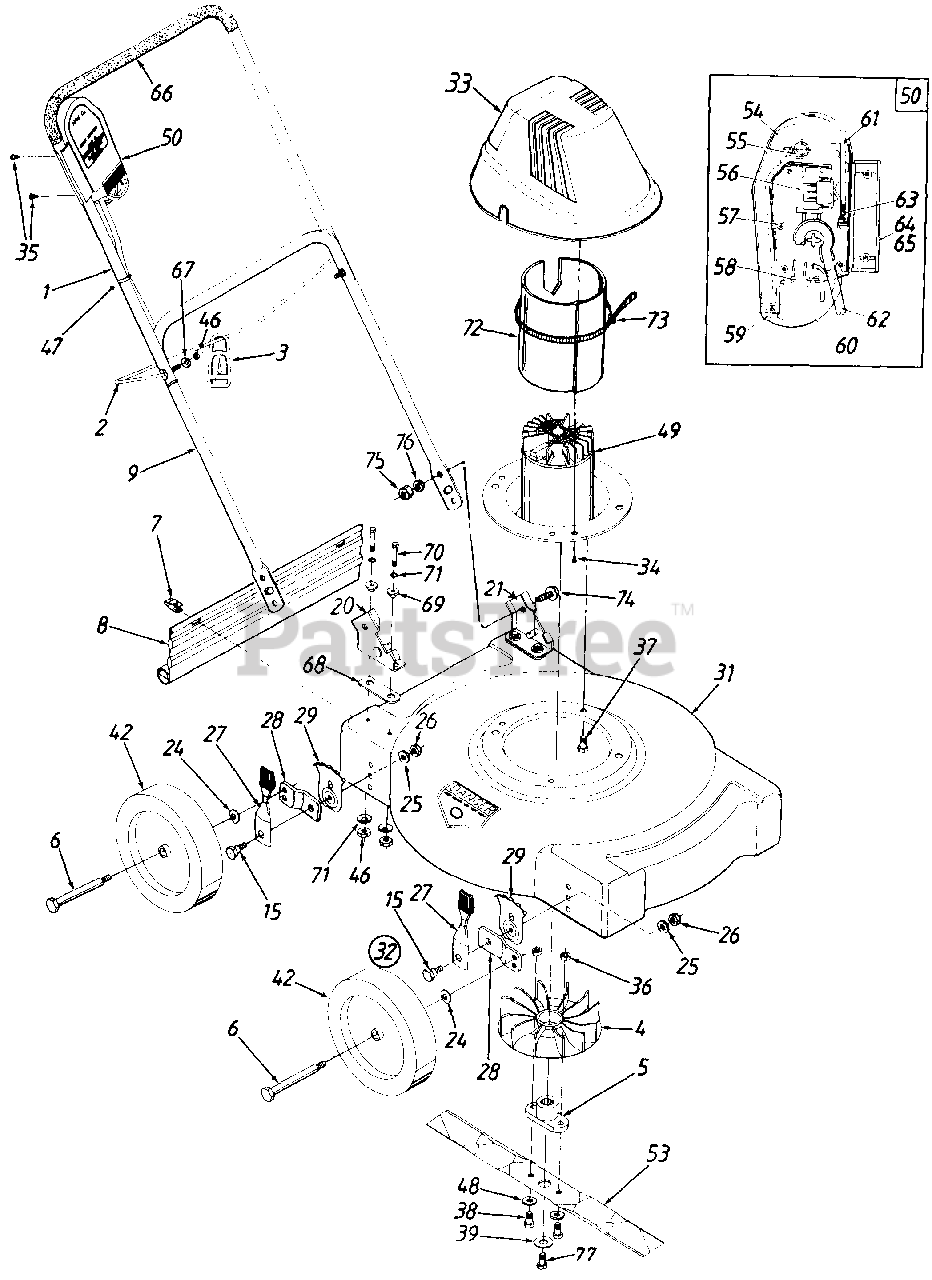

182-097B002 - MasterCut by MTD Walk-Behind Mower, Electric (1992) (Aircap Industries) Wheel Assembly Complete Parts Diagram

Walk-Behind Mower, Electric

Wheel Assembly Complete Parts Diagram

  • Title

1

MTD 749-0884

Upper Handle

$

$

Not available

2

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

MTD 725-1590

Strain Relief - Cord

$

$

Not available

4

MTD 731-1270

Fan

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

7

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

MTD 731-08724

Rear Flap

$

$

Currently unavailable

9

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

15

MTD 738-05078

Shld Bolt 5" Dia x .434"
(Superseded to 938-05078)

$56.99

$

In Stock, Qty 20+

0

20

MTD 682-3012

Handle Brkt Ass'y.- R.H

$

$

Not available

21

MTD 682-3011

Handle Brkt. Ass'y.- L H

$

$

Not available

?22

MTD 710-1017

Torx Mach AB-Tap Scr 1/4 x 62" Lg.

$8.49

$

In Stock, Qty 9

0

24

MTD 736-0105

Bell-Wash .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0356

Bell-Wash .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd

$4.49

$

In Stock, only 2 left!

0

27

MTD 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 15261A

Height Adj Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

31

MTD 682-0002

20" Deck Ass'y.

$

$

Currently unavailable

32

MTD 14578

Height Adj Ass'y Comp - R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj Ass'y Comp - L.F. & R.R.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1263

Motor Cover

$

$

Not available

34

MTD 710-1128

Scr #10-16 x .75" Lg.

$

$

Not available

35

MTD 710-1150

Self-Tap Scr #7 x 1" Lg.

$

$

Not available

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 710-1006

Hex L-Wash. TT-Tap Scr 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

39

MTD 736-0452

Bell-Wash 396" I.D. x 1.14" O.D.

$4.99

$

In Stock, Qty 7

0

42

Wheel Ass'y Comp

$

$

Not available

MTD 634-0020

Bar Tread (8") (Smooth Rim)

$39.99

$

In Stock, Qty 6

0

MTD 734-1608

(8")(Spoked Rim)
(Superseded to 734-1781)

$32.99

$

In Stock, Qty 7

0

MTD 734-1512A

"S" Wave (8")
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

46

MTD 712-0324

Hex Top L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

47

MTD 726-0303

Cable Tie

$

$

Not available

48

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 16

0

49

MTD 818-60013

Motor, Cord & Switch Ass'y.

$

$

Not available

50

MTD 624-0032

Cord & Switch Ass'y. Comp (See Breakdown)

$

$

Not available

53

MTD 742-0500

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

54

MTD 731-1210

Handle - Switch Actuator

$

$

Not available

55

MTD 732-0679

Spring - Switch Handle

$

$

Not available

56

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

57

MTD 710-1147

Screw #6-32 x .5" Lg

$

$

Not available

58

MTD 729-0304

Plug Ass'y
(Superseded to 929-0304)

$

$

Not available

59

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

60

MTD 731-1211

Retainer Plug

$

$

Not available

61

MTD 731-1198

Latch

$

$

Not available

62

MTD 624-0053

Cord Ass'y.

Note: (Incl Ref. #58)

$

$

Not available

63

MTD 732-0681

Spring Latch

$

$

Not available

64

MTD 731-1208

Housing - Upper Half

$

$

Not available

65

MTD 731-1209

Housing - Lower Half

Note: (Not Shown)

$

$

Not available

66

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

67

MTD 736-0486

Curved Wash 5/16" I.D.

$

$

Not available

68

MTD 721-0309

Insulator Strip

$

$

Not available

69

MTD 731-1219

Insulator Shield

$

$

Not available

70

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, Qty 14

0

71

MTD 736-3090

Fl-Wash. 26" I.D x .72" O.D.

$6.99

$

In Stock, only 1 left!

0

72

MTD 721-0311

Insulator

$

$

Not available

73

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

74

MTD 710-0323

Phillips Hd. Scr 5/16 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

75

MTD 712-0267

Hex Nut 5/16-18 Thd
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

77

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

MTD 731-0981A

Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-0982A

Beige (5-1/2" Dia.)
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

MTD 720-0249

Gray (3-1/2" Dia.)
(Superseded to 920-0249)

$

$

Not available
