182 (0350030U) - Cub Cadet Lawn Tractor Transaxle-Gear Drive-SN 72879 & Below Parts Diagram

Lawn Tractor

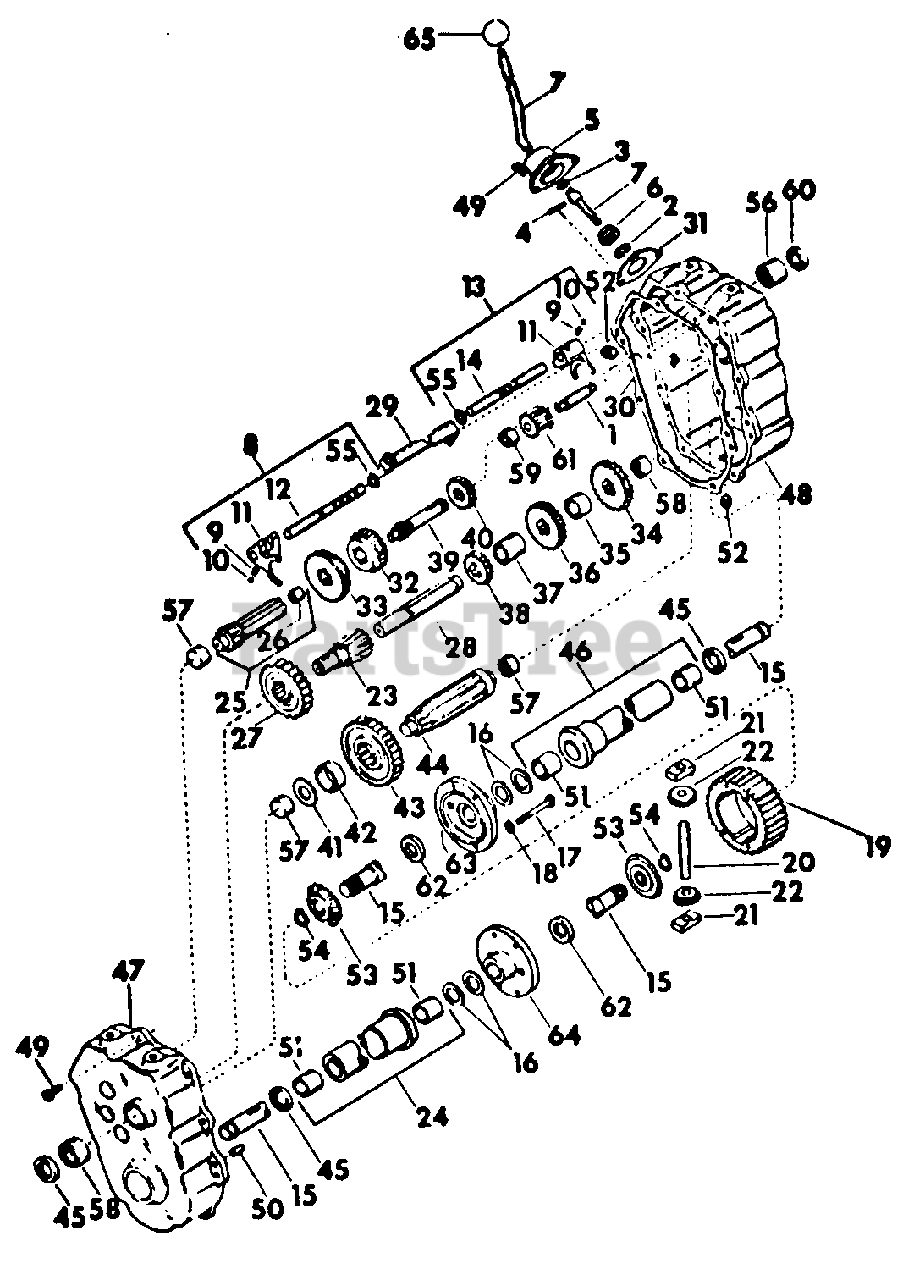

Transaxle-Gear Drive-SN 72879 & Below Parts Diagram

  • Title

~NLA

Transaxle Assy

$

$

Not available

1

Cub Cadet IH-55255-C1

Shaft, Reverse Idler

$

$

Currently unavailable

2

Cub Cadet 716-3007

Ring, Snap
(Superseded to 716-04098)

$5.49

$

Usually ships in 3-6 days

0

3

$

$

Currently unavailable

4

Cub Cadet TC-792049

Pin, Drive

$6.49

$

In Stock, only 4 left!

0

5

Cub Cadet TC-784088

Housing, Shift Lever

$34.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-784094

Keeper, Shift Lever

$36.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-784226

Lever, Shift

$

$

Currently unavailable

8

Cub Cadet IH-55196-C91

Rod Assy, Shift

$

$

Currently unavailable

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet IH-17006-R1

Ball, 3/16 Cr Stl

$

$

Not available

11

Cub Cadet TC-784004

Fork, Shifter

$45.99

$

Usually ships in 3-12 days

0

12

Cub Cadet IH-55199-C1

Rod, Shifter

$

$

Currently unavailable

13

Cub Cadet IH-55200-C91

Rod Assy, Shift

$

$

Not available

14

Cub Cadet IH-55201-C1

Rod, Shifter

$

$

Currently unavailable

15

$

$

Not available

$

$

Not available

16

Cub Cadet TC-780042

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

17

Cub Cadet IH-25672-R1

Screw, 1/4-20 x 2-1/4 Phc Hex Hd Cap

$

$

Currently unavailable

18

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

$

$

Not available

20

Cub Cadet TC-786019

Pin, Drive

$14.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-786066

Block, Drive

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet TC-778014

Pinion, Bevel -14T

$

$

Currently unavailable

23

Cub Cadet IH-55232-C1

Shaft, Idler Pinion and Bushing

$

$

Currently unavailable

24

Cub Cadet TC-782041A

Housing w/Bushing, LH

$189.99

$

In Stock, only 1 left!

0

25

Cub Cadet IH-55233-C91

Shaft and Bearing, Shifter

$

$

Currently unavailable

26

Cub Cadet TC-780018

Bearing, Needle

$

$

Not available

27

Cub Cadet TC-778037

Gear, Idler

$56.99

$

Usually ships in 3-12 days

0

28

Cub Cadet IH-55235-C1

Shaft, Idler

$

$

Currently unavailable

29

Cub Cadet TC-784074

Stop, Shifter

$

$

Not available

30

Cub Cadet TC-788026

Gasket, Case to Cover

$9.99

$

Usually ships in 3-12 days

0

31

Cub Cadet IH-55238-C1

Gasket, Shift Lever Housing

$

$

Currently unavailable

32

Cub Cadet TC-778019A

Gear, Shifting -20T

Note: (Replaces IH-55239-C1)

$66.99

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-778020

Gear, Shifting -26T

$66.99

$

Usually ships in 3-12 days

0

34

Cub Cadet IH-55241-C1

Gear, Spur -26T

$

$

Currently unavailable

$

$

Currently unavailable

36

Cub Cadet TC-778022

Gear, Spur -22T

$53.99

$

Usually ships in 3-12 days

0

$

$

Currently unavailable

38

Cub Cadet IH-55244-C1

Gear, Spur -16T

$

$

Not available

39

Cub Cadet TC-776067

Shaft, Input

$84.99

$

Usually ships in 3-12 days

0

40

Cub Cadet IH-55246-C1

Gear, Input Shaft Spur -16T

$

$

Currently unavailable

$4.49

$

In Stock, only 4 left!

0

$5.59

$

In Stock, only 2 left!

0

43

Cub Cadet TC-778036

Gear, Output -36T

$76.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-778041

Shaft, Output

$

$

Not available

45

$8.49

$

In Stock, only 2 left!

0

46

Cub Cadet TC-782042A

Housing w/Bushing, RH

$

$

Not available

47

Cub Cadet IH-55251-C91

Cover w/Brgs, Transaxle

$

$

Currently unavailable

48

Cub Cadet IH-55252-C91

Case w/Brgs, Transaxle

$

$

Not available

49

Screw, 1/4-20 x 3/4 Znd Hex Hd Soc Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

50

Cub Cadet TC-786026

Pin, 5/16 x 3/4 Dowel

$4.49

$

Usually ships in 3-12 days

0

51

$10.99

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-792010

Plug, 3/8-18 Automotive Sq Hd Pipe

$

$

Not available

53

Cub Cadet TC-778039

Gear, Bevel -24T

$

$

Not available

54

Cub Cadet 716-0865

Ring, Retaining

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 716-3001

Ring, Retaining

$4.99

$

In Stock, only 1 left!

0

56

Cub Cadet TC-780011

Bearing, Roller

$66.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-780088

Bearing, Needle

$21.99

$

Usually ships in 3-12 days

0

58

Cub Cadet IH-363244-R91

Bearing, Needle

$

$

Currently unavailable

59

Cub Cadet TC-786008

Spacer, Reverse Idler

$

$

Currently unavailable

60

$

$

Not available

61

Cub Cadet TC-778016

Idler, Reverse -12T

$54.99

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 3-12 days

0

63

Cub Cadet TC-786027

Carrier, Differential

$10.99

$

In Stock, only 1 left!

0

64

Cub Cadet TC-774028A

Carrier, Differential

$

$

Not available

65

Cub Cadet 720-3000

Knob, Shifter
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0
