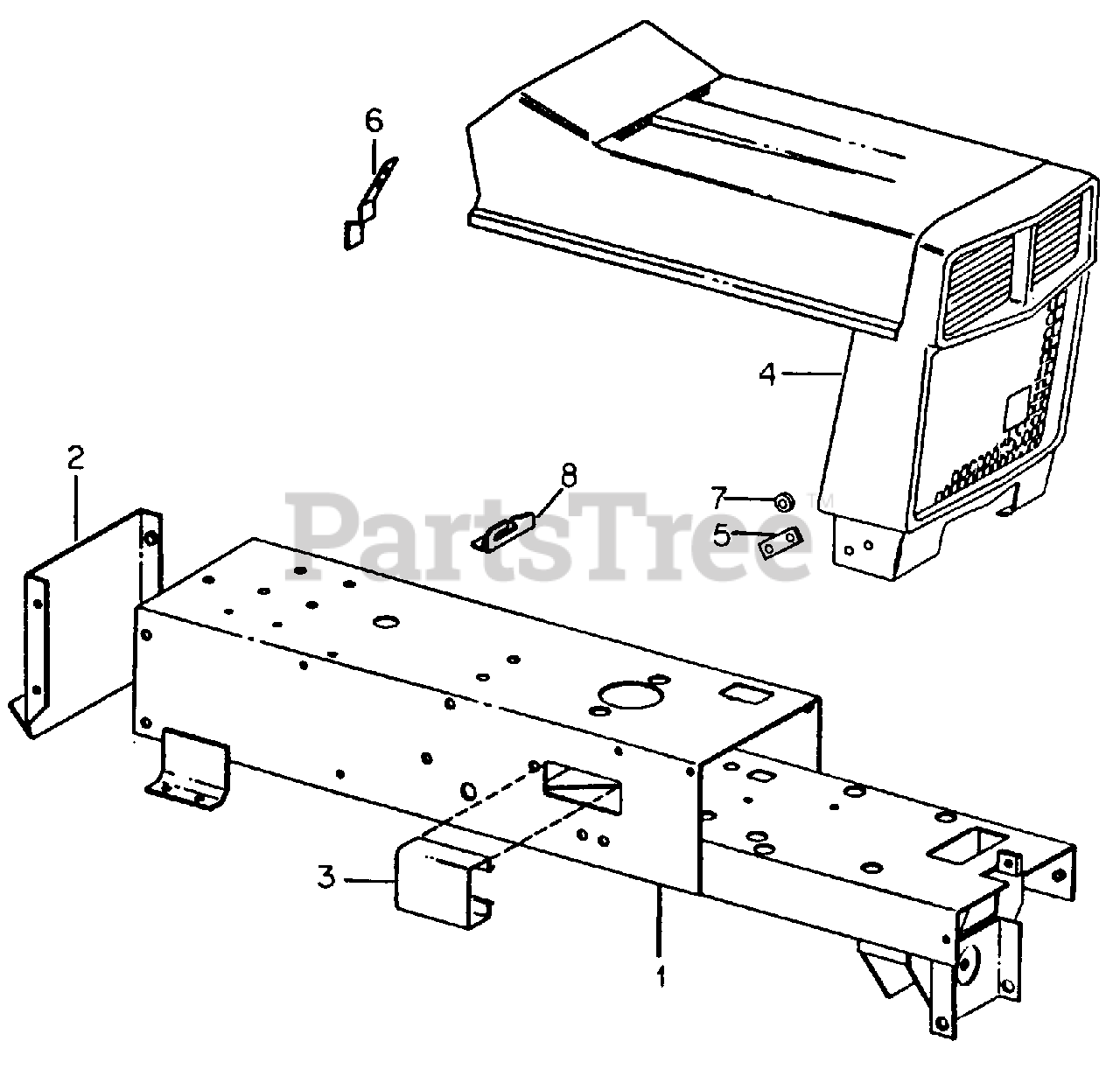

182 (0350030U) - Cub Cadet Lawn Tractor Drawbar, Engine Mount, Hood Grille & Frame Parts Diagram

Lawn Tractor

Drawbar, Engine Mount, Hood Grille & Frame Parts Diagram

  • Title

1

Cub Cadet 703-0367

Frame Assy

Note: (Serial No. 72879 & Below)

$

$

Currently unavailable

Cub Cadet 703-0588

Frame Assy

Note: (Serial No. 72880 & Above)

$

$

Currently unavailable

~NLA

Screw, Type 5 Truss Hd

$

$

Not available

Cub Cadet IH-140917-C1

Bushing, Steering Shaft Nylon

Note: (Service For Bushing in Frame)

$

$

Not available

2

Cub Cadet 703-0329

Drawbar Assy

$

$

Not available

3

Cub Cadet 703-0284

Cover, Steering Arm

$

$

Not available

4

Cub Cadet 703-0332

Hood Assy

$

$

Not available

5

Cub Cadet 703-0334

Bracket, Hood Front Mounting

$

$

Not available

Cub Cadet 710-0342

Bolt, 3/8 X 1-1/4 Type 1
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

$4.49

$

In Stock, Qty 6

0

Cub Cadet 710-0344

Bolt, 3/8 X 1-1/2 Type 1

$5.99

$

In Stock, Qty 11

0

6

Cub Cadet 703-0333

Latch, Hood

$

$

Not available

Screw, No. 8 X 1/2 Znp P/Hdcr Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-131015

Washer, .188 X .438 X .036

$

$

Currently unavailable

Cub Cadet 712-0142

Nut, No. 8 Mach Screw Type 1

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 735-3011

Spacer, Rubber

$

$

Not available

Cub Cadet IH-614452-R1

Washer, .406 X 1.250 X .090
(Superseded to 936-0133)

$

$

Not available

Cub Cadet 736-3032

Washer, .406 X 1.000 X .056

$

$

Not available

8

Cub Cadet 703-0717

Bracket, Shifter Index

Note: (Serial Number 72880 and Above)

$

$

Currently unavailable

Cub Cadet 710-3098

Screw, 1/4 X 1/2 Znp P/Hdcr Mach

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 19

0

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
