1817 H (1691714) - AGCO Garden Tractor, 17hp Engine Group (17HP) Parts Diagram

Garden Tractor, 17hp

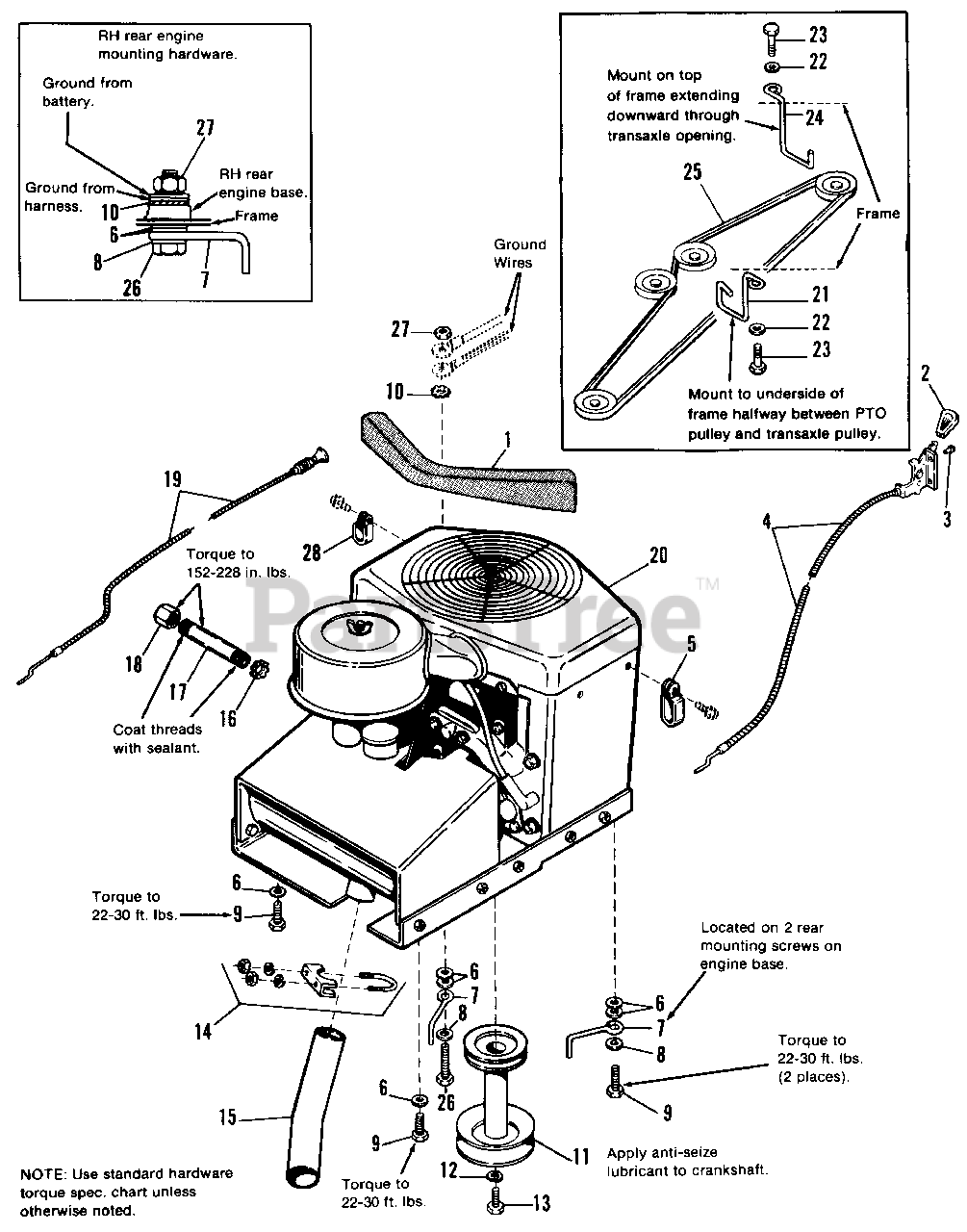

Engine Group (17HP) Parts Diagram

  • Title

1

Simplicity 1702843SM

BAFFLE, Engine, Top

$

$

Not available

2

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 2860241

RIVET

$

$

Not available

4

Simplicity 1702836

CONTROL ASSY., Throttle

$

$

Not available

5

Simplicity 1676527SM

CLAMP, Cable

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1669640

BELT Stop

$

$

Not available

8

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2 (Zinc Pltd.)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1700782SM

PULLEY ASSY., Engine

$

$

Not available

12

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1928038SM

CAPSCREW, Hex, 5/16-20 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

14

Simplicity 2835040SM

CLAMP, 1-1/2 Dia.

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1702831

EXTENSION, Muffler

$

$

Not available

16

Simplicity 1932849SM

LOCKNUT, Conduit

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1670680

OIL DRAIN

$

$

Not available

18

Simplicity 1667346SM

CAP, Pipe

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 1667748SM

CABLE, Choke

$57.99

$

Usually ships in 2-12 days

0

20

ENGINE ASSY., Kohler 17 HP

$

$

Not available

21

Simplicity 1701294SM

GUIDE, Belt

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 5

0

23

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 1702402

GUIDE, Belt

$

$

Not available

25

Simplicity 1656960SM

BELT, "V", Transmission Drive

$47.99

$

In Stock, only 1 left!

0

26

Simplicity 2860361SM

SCREW, Taptite, 3/8-16 x 2 (Zinc Pltd.)

$6.49

$

In Stock, only 1 left!

0

27

Simplicity 960251

NUT, Hex, Full, 3/8-16 (Zinc Pltd.)

$

$

Not available

28

Simplicity 1703458

CLAMP, Cable

$

$

Not available
