1812 (146-784-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Hydrostatic Transmission Parts Diagram

Garden Tractor

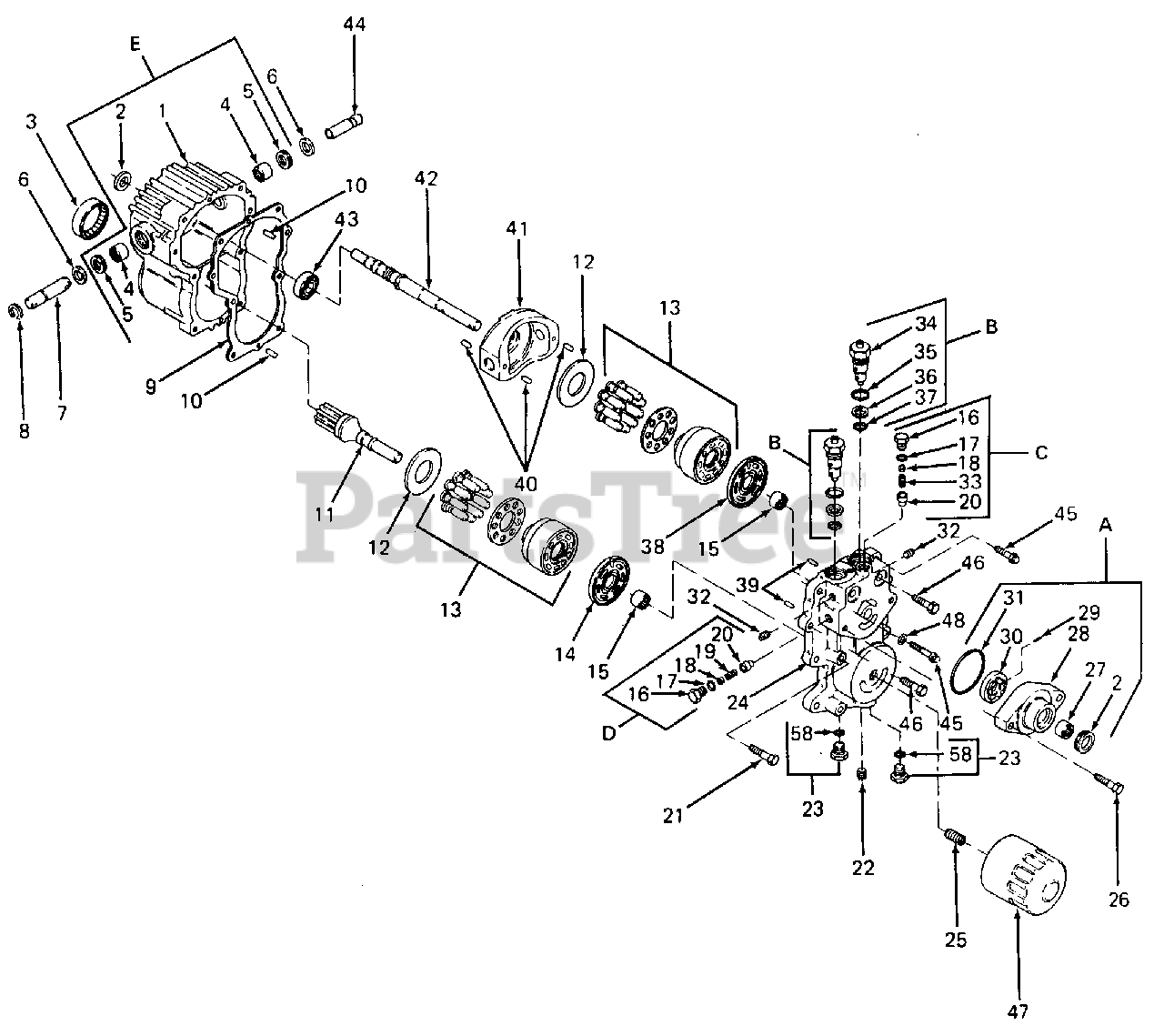

Hydrostatic Transmission Parts Diagram

  • Title

A

Cub Cadet SU-9510405-0003

Kit, Charge Pump
(Superseded to SU-11060903)

Note: (Includes Ref No. 2, 27, 28, 29, 30 & 31)

$

$

Not available

B

Cub Cadet SU-9500085

Valve Assembly
(Superseded to SU-9500085P)

Note: (Includes Ref No. 34, 35, 36, & 37)

$502.99

$

Usually ships in 3-6 days

0

C

Cub Cadet SU-9510385-0003

Kit, Relief Valve

Note: [Includes Ref No. 16, 17, 18 (2), 20 & 33]

$296.99

$

Usually ships in 3-6 days

0

D

Cub Cadet SU-9510385-0001

Kit, Relief Valve

Note: [Includes Ref No. 16, 17, 18 (2), 19 & 20]

$

$

Not available

E

Cub Cadet SU-3103060

Housing Assembly

Note: [Includes Ref No. 1, 2, 4 (2) & 5 (2)]

$

$

Not available

1

Cub Cadet SU-3103064

Housing, Transmission

$

$

Not available

2

Cub Cadet SU-9008000-6201

Seal, Lip
(Superseded to 921-3032)

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet SU-9001370-0003

Bearing, Roller

$161.99

$

Usually ships in 3-6 days

0

4

Cub Cadet SU-9001455-0004

Bearing, Needle

$57.99

$

Usually ships in 3-6 days

0

5

Cub Cadet SU-9008000-6701

Seal, Lip
(Superseded to SU-11156097)

$

$

Not available

6

Cub Cadet SU-9009625-6904

Washer

$

$

Not available

7

Cub Cadet SU-3101045

Shaft, Trunnion

$

$

Not available

8

Cub Cadet SU-9006320-0069

Ring, Retaining

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet SU-3102875

Gasket
(Superseded to SU-3102875P)

$

$

Not available

10

Cub Cadet SU-9004800-2506

Pin
(Superseded to HG-9004800-2506)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet SU-3101752

Shaft, Motor

$

$

Not available

12

Cub Cadet SU-3102020

Plate, Thrust

$

$

Not available

13

Cub Cadet SU-3103136

Block, Cylinder

$

$

Not available

14

Cub Cadet SU-3102687

Plate, Valve

$

$

Not available

15

Cub Cadet SU-9001355-0001

Bearing, Roller

$

$

Not available

16

Cub Cadet SU-3100055

Plug
(Superseded to SU-4800323)

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet SU-9004201-3100

O-Ring
(Superseded to HG-9004201-3100)

$

$

Not available

18

Cub Cadet SU-9510447

Kit, Shim Pack

$

$

Not available

19

Cub Cadet SU-3101536

Spring, Center Relief Valve

$

$

Not available

20

Cub Cadet SU-3100053

Cone, Relief Valve

$

$

Not available

21

Cub Cadet SU-9007200-3728

Screw, Hex

$

$

Not available

22

Cub Cadet SU-9005001-2500

Plug, Pipe

$

$

Not available

23

Cub Cadet SU-9005100-7500

Plug

$

$

Not available

24

Cub Cadet SU-3103110

Center Section

$

$

Not available

25

Cub Cadet SU-3101069

Pipe

$40.99

$

Usually ships in 3-6 days

0

26

Cub Cadet SU-9007206-4428

Screw, Hex

$

$

Not available

27

Cub Cadet SU-9001455-0002

Bearing, Needle

$

$

Not available

28

Charge Pump Housing

Note: (Order Charge Pump Kit No. SU-9510405-0003)

$

$

Not available

29

Cub Cadet SU-9004875-0076

Pin

$

$

Not available

30

Gerotor

Note: (Order Charge Pump Kit No. SU-9510405-0003)

$

$

Not available

31

Cub Cadet SU-9004100-0360

O-Ring

$

$

Not available

32

Cub Cadet SU-9005001-1200

Plug, Pipe

$

$

Not available

33

Cub Cadet SU-3102301

Spring, Implement Relief

$

$

Currently unavailable

34

Valve

Note: (Order Valve Assembly No. SU-9500085)

$

$

Not available

35

Cub Cadet SU-9004201-6200

O-Ring

$

$

Not available

36

Cub Cadet SU-9006110-0160

Ring, Back-up
(Superseded to SU-11155962)

$13.99

$

In Stock, only 1 left!

0

37

Cub Cadet SU-9004100-0160

O-Ring

$

$

Not available

38

Cub Cadet SU-3102731

Plate, Valve

$

$

Not available

39

Cub Cadet SU-9004800-1508

Pin

$

$

Not available

40

Cub Cadet SU-9004690-1910

Pin, Spring

$

$

Not available

41

Cub Cadet SU-3103072

Swashplate

$

$

Not available

42

Cub Cadet SU-3101867

Shaft, Pump

$

$

Not available

43

Cub Cadet SU-9001305-0001

Bearing, Ball

$

$

Not available

44

Cub Cadet SU-3103181

Shaft Assembly, Trunnion
(Superseded to SU-3103181P)

$

$

Not available

45

Cub Cadet SU-9007500-3722

Screw, 12 Point

$

$

Not available

46

Cub Cadet SU-9007200-3724

Screw, Hex

$

$

Not available

47

Cub Cadet 723-3014

Oil Filter
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

48

Cub Cadet SU-9004201-5000

O-Ring

$

$

Not available

58

UNKNOWN

$

$

Not available
